1.6.4 PCI
Slots
i945G-IGA has two PCI slots (i945G-IGA-IM has
four slots). The PCI slots support cards such as
a LAN card, SCSI card, USB card, and other
cards that comply with PCI specifications. The

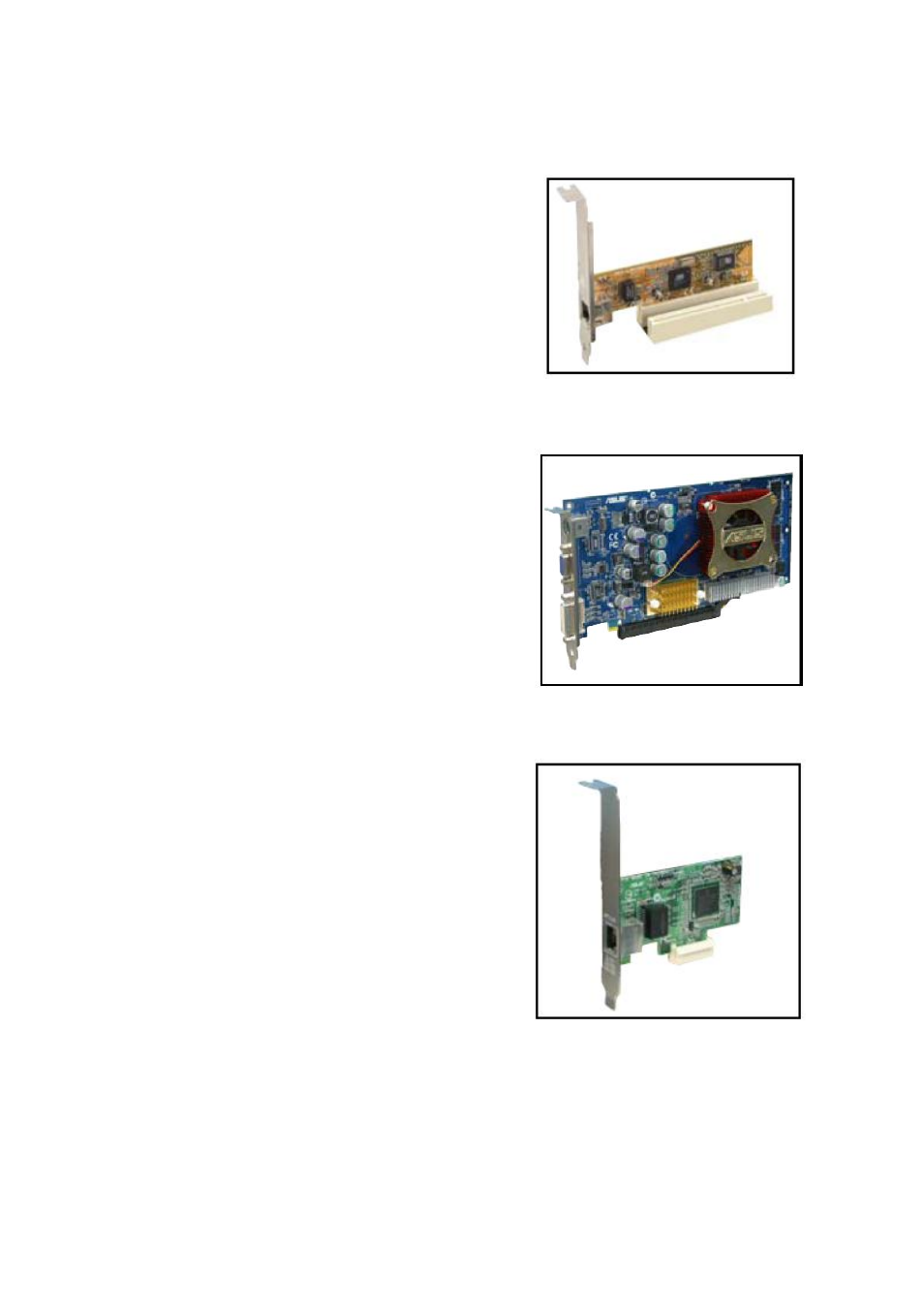

figure shows a LAN card installed on a PCI slot.
1.6.5
PCI Express X16 Slot
This motherboard supports one PCI Express
x16 graphic cards that comply with the PCI
Express specifications. The following figure
shows a graphics card installed on the PCI
Express x16 slot.
1.6.6
PCI Express X4 Slot
This motherboard supports one PCI Express X4
network card, SCSI cards and other cards that
comply with the PCI Express specifications.
The figure shows a network card install on the
PCI Express X4 slot.
