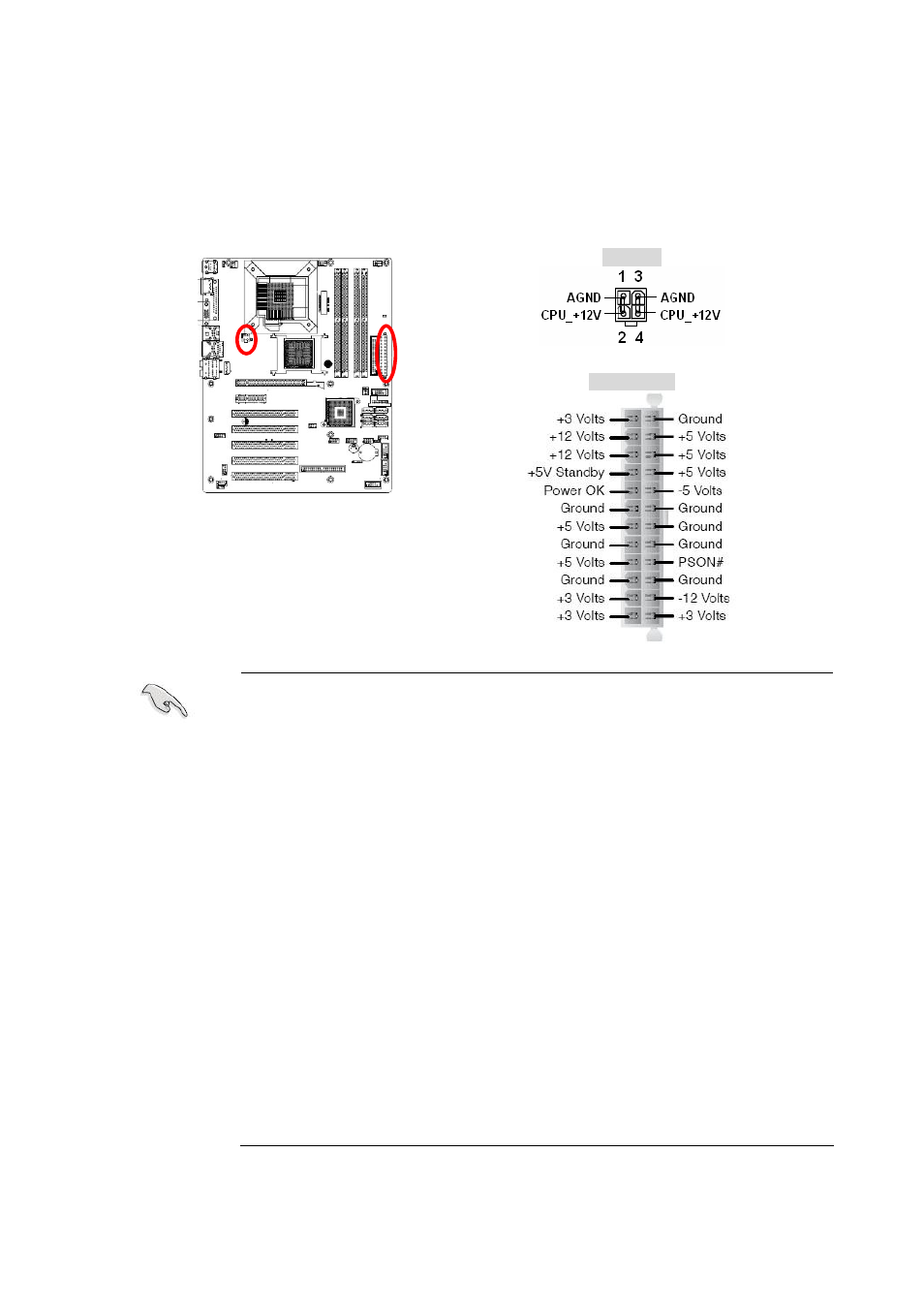

1.8.2.2 ATX Power Connector (ATX12V, EATXPWR)
These connector are for ATX power supply plugs. The power supply plugs are designed to
fit these connectors in only one orientation. Find the proper orientation and push down
firmly until the connectors completely fit.
ATX12V
EATXPWR1
Important notes on the Motherboard Power Requirements
z Do not forget to connect the 4-pin ATX +12 V power plug;
otherwise, the system will not boot up.
z To power the motherboard, it is recommended that you use an
ATX 12 V Specification 2.0 power supply unit (PSU) with a
minimum 350 W power rating. This PSU type has a 24-pin and
4-pin ATX power plugs.
z If you intend to use a PSU with a 20-pin and 4-pin power plugs,
make sure that the 20-pin power plug can provide at least 15A on
+12 V and that the PSU has a minimum power rating of 350 W.
The system may become unstable or may not boot up if the
power is inadequate. We do not, however, recommend the use of
a 20-pin PSU.
z The ATX 12 V 350 W Spec. 2.0 PSU passed the motherboard
power requirement test with the following configuration:
„ CPU : Intel® Pentium® 4 3.6 GHz
„ Memory : 512 MB DDR2 (x 4)
„ Graphics card : PCI Express x16 Nvidia EN5900
„ Parallel ATA devices : IDE hard disk drive (x 2)
„ Serial ATA device : SATA hard disk drive
„ Optical drives : CD-ROM (x 2)
z You must install a PSU with a higher power rating if you intend to
install additional devices.
