1.8 Connectors

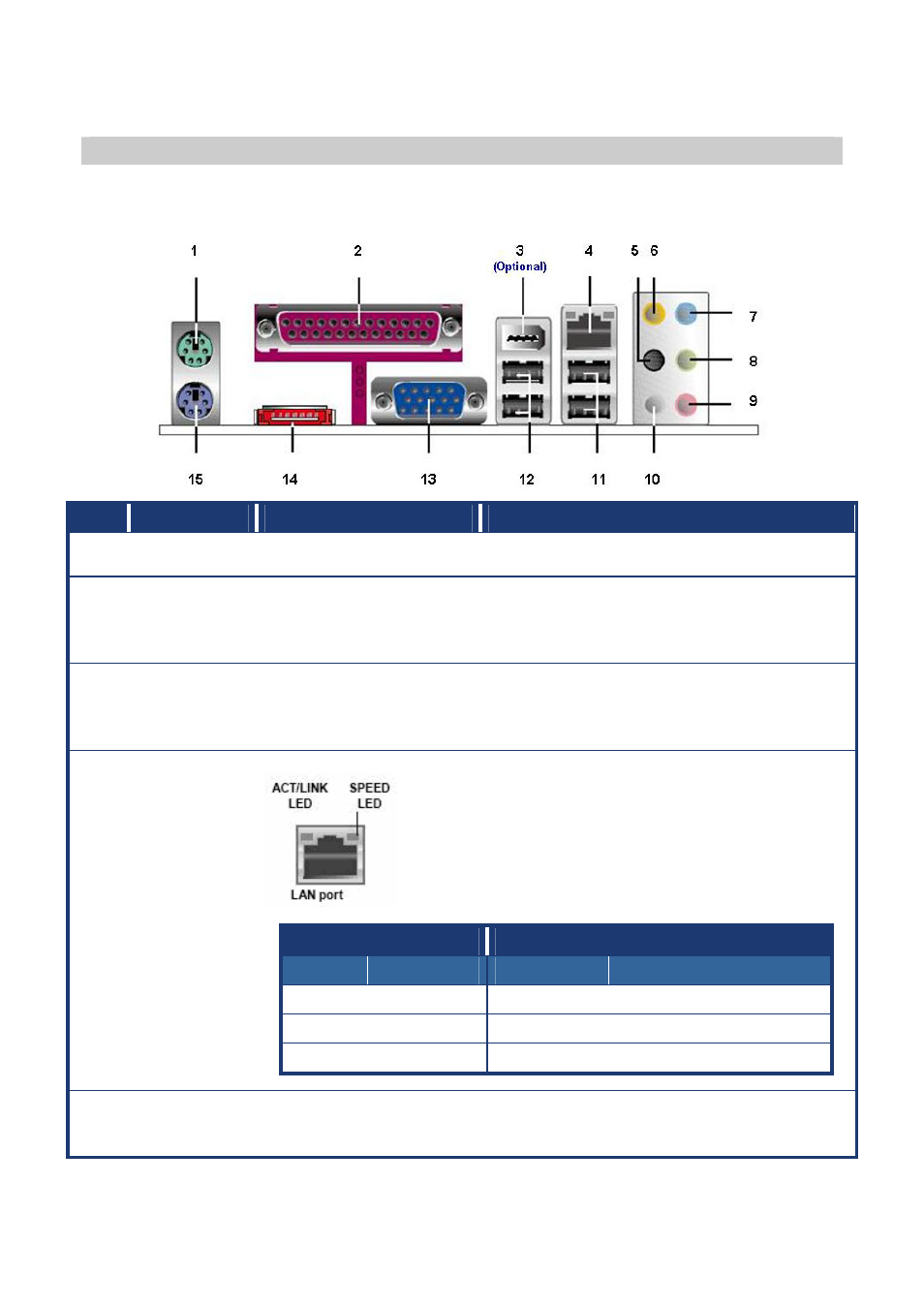

1.8.1 Rear Panel Connectors
No Label Function Description
1 KBMS PS/2 mouse connector The standard PS/2 mouse DIN connector is
for a PS/2 mouse.
2 LPT Parallel port connector
This 25-pin parallel port is a standard
printer port that supports Enhanced Parallel
Port (EPP) and Extended Capabilities
Parallel Port (ECP) mode
3 1394_USB12 IEEE 1394a connector
(Optional)
This 6-pin IEEE 1394a port provides
high-speed connectivity for audio/video
devices, storage peripherals, PCs, or
portable devices.
LAN (RJ-45) connector This port allows Gigabit connection to a
Local Area Network (LAN) through a
network hub. Refer to the table below for
the LAN port LED indications. The optional
10/100 Mbps LAN controller allows 10/100
Mbps connection to a Local Area Network
(LAN) through a network hub. 4 LAN_USB34
ACT / LINK LED SPEED LED
Status Description Status Description
OFF No link OFF 10Mbps connection
Orange Linked ORANGE 100Mbps connection
Blinking Data activity GREEN 1Gbps connection
5 AUDIO Rear speaker out port
(Black) This port connects the rear speakers in a
4-channel, 6-channel, or 8-channel audio
configuration.
