ATX Main board
38

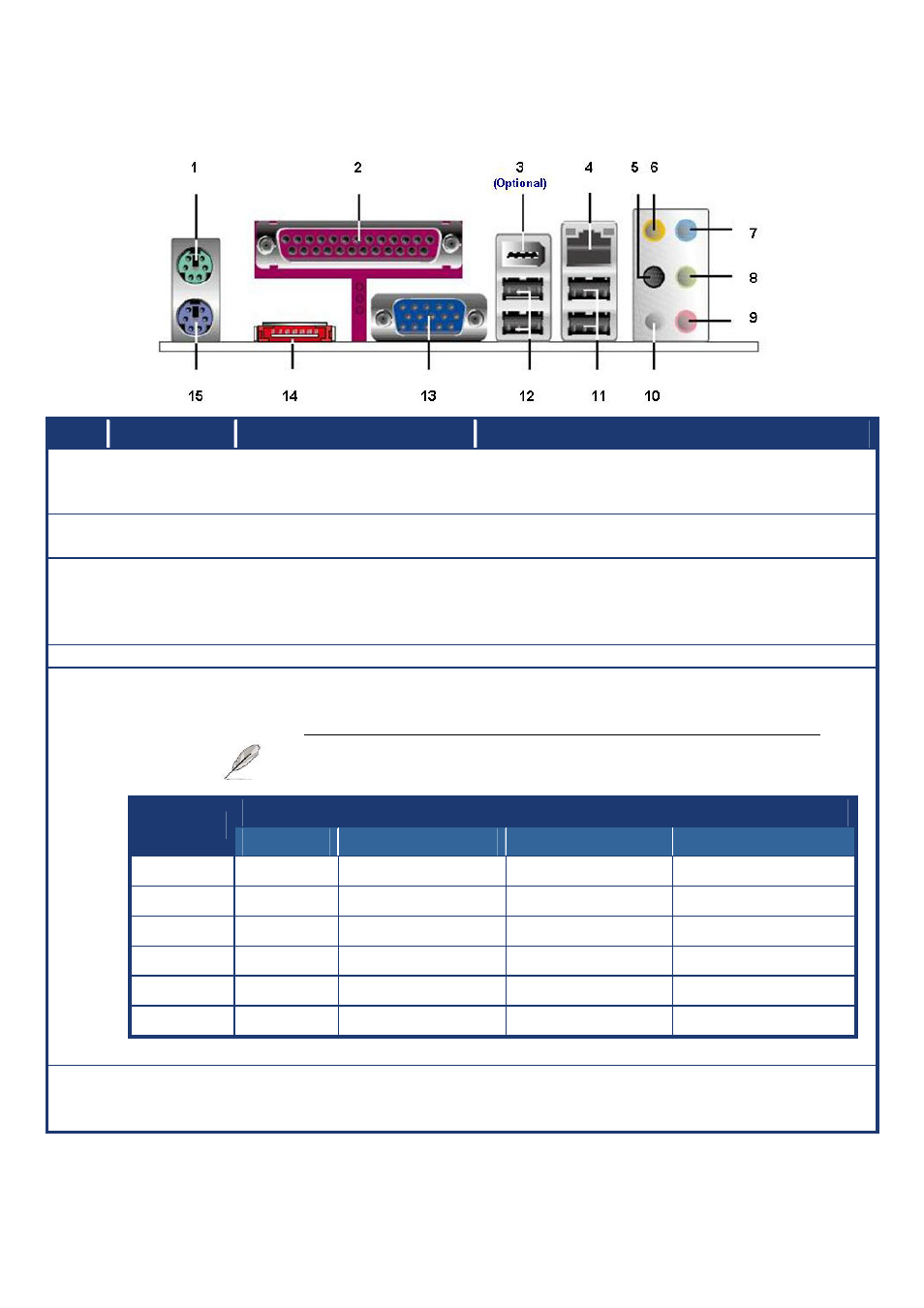

No Label Function Description
6 AUDIO Center/Subwoofer port
(Orange)
The port connects the center/subwoofer
speakers in a 6-channel or 8-channel audio
configuration.
7 AUDIO Line-In port (Light Blue). This port connects a tape, CD, DVD player, or
other audio sources.
8 AUDIO Line-Out port (Lime) This port connects a headphone or a speaker.
In 4-channel, 6-channel, and 8-channel
configuration, the function of this port becomes
Front Speaker Out.
9 AUDIO Microphone port (Pink) This port connects a microphone.
10 AUDIO Side Speaker Out port
(Gray) This port connects the side speakers in an
8-channel audio configuration.
Headset
Port
2-channel 4-channel 6-channel 8-channel
Light Blue Line in Line in Line in Line in
Lime Line out Front speaker out Front speaker out Front speaker out
Pink Mic In Mic In Mic In Mic In
Orange - - Center/Subwoofer Center/Subwoofer
Black - Rear speaker out Rear speaker out Rear speaker out
Gray - - - Side speaker out
11 LAN_USB34 USB 2.0 connector These two 4-pin Universal Serial Bus (USB)
ports are available for connecting USB 2.0
devices.
Refer to the audio configuration table below for the function
of the audio ports in 2, 4, 6, or 8-channel configuration.
