User’s Manual
ATX Main board
57
2.2.1

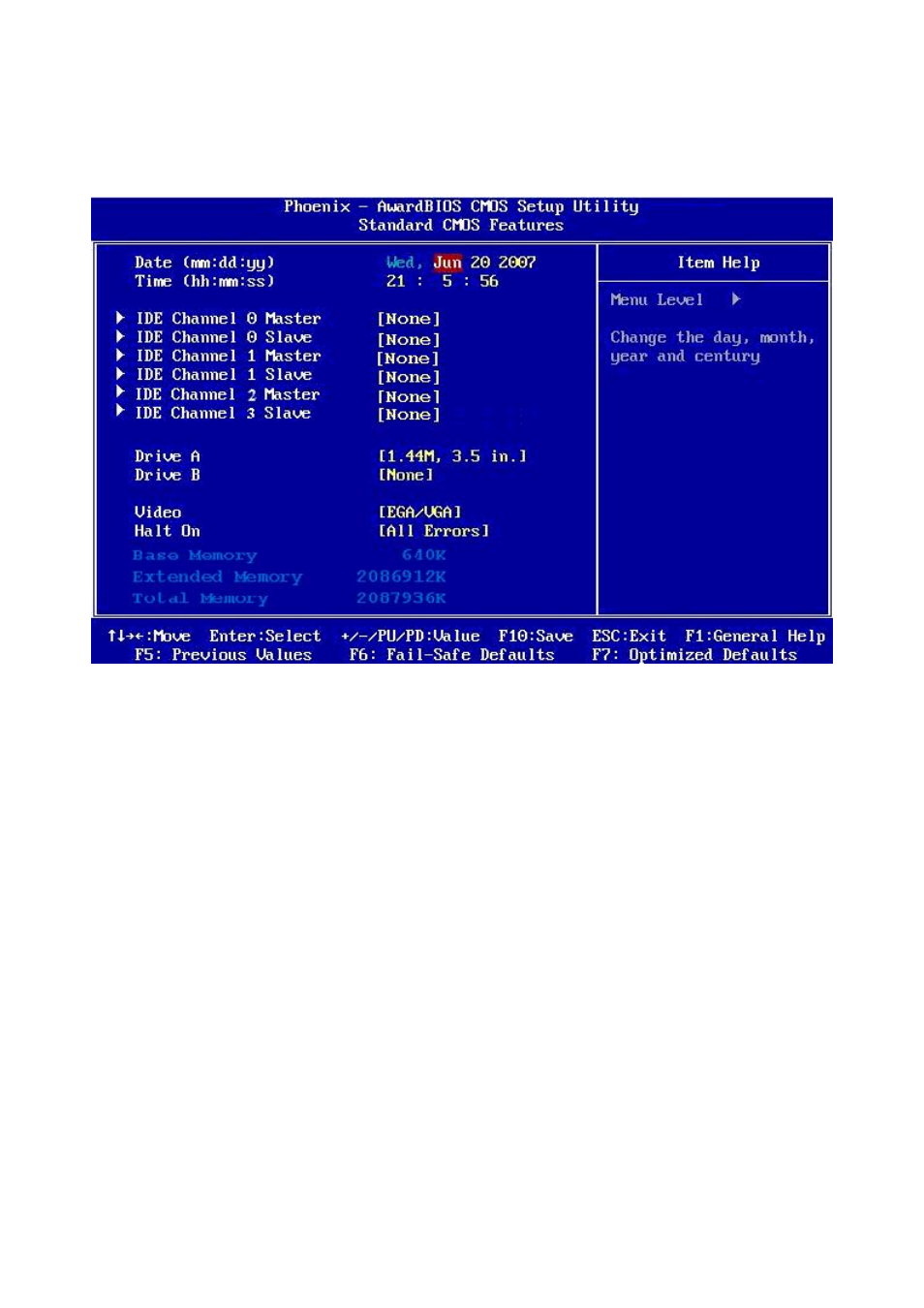

Standard CMOS Features
The Standard CMOS Features screen gives you an overview of the basic system
2.2.1.1 Date [Day, xx/xx/xxxx]
The date format is
2.2.1.2 Time
[xx:xx:xx]
The time format is
2.2.1.3 IDE Channel 0/1/2/3 Master / Slave
z IDE HDD Auto-Detection
[Press Enter] to select this option for automatic device detection.
z IDE Device Setup
[Auto]: Automatically detects IDE devices during POST
[None]: Select this when no IDE device is used. The system will skip the auto-detection
setup to make system start up faster.
[Manual]: User can manually input the correct settings.
9 Access Mode: The options are CHS/LBA/Large/Auto
9 Capacity: Capacity of currently installed hard disk
9 Cylinder: Number of cylinders
9 Head: Number of heads
9 Precomp:
Write
precomp
9 Landing Zone: Landing zone
9 Sector: Number of sectors
