3 uninstalling the cpu heatsink and fan, Rotate each fastener counterclockwise – Intel AX965Q User Manual
Page 22
ATX Main board
22
1.4.3

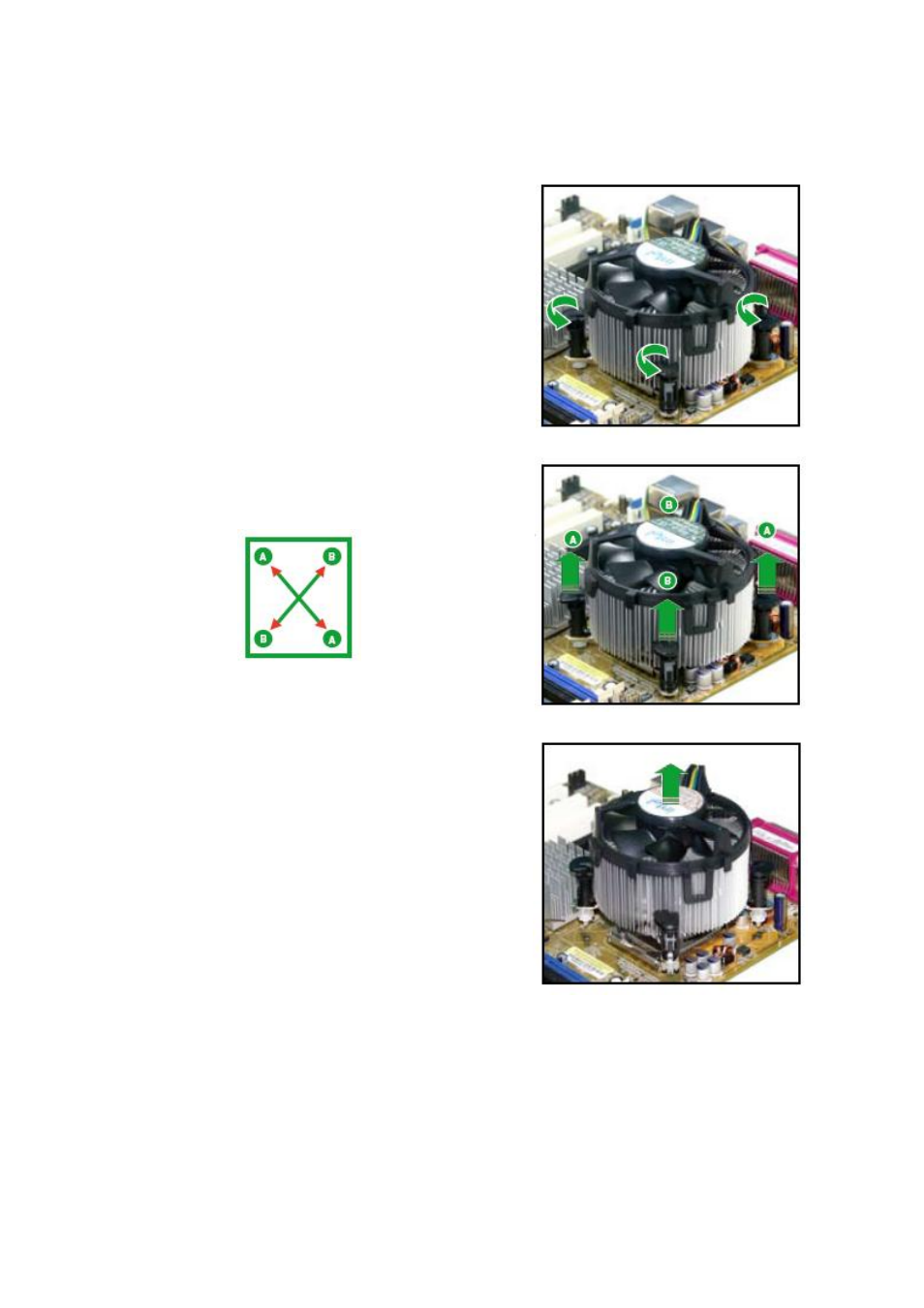

Uninstalling the CPU Heatsink and Fan
1. Disconnect the CPU fan cable from the
connector on the motherboard.
2. Rotate each fastener counterclockwise.
3. Pull up two fasteners at a time in a diagonal
sequence to disengage the heatsink and
fan assembly from the motherboard
4. Carefully remove the heatsink and fan
assembly from the motherboard.
