AIMB-744 User’s Manual 80

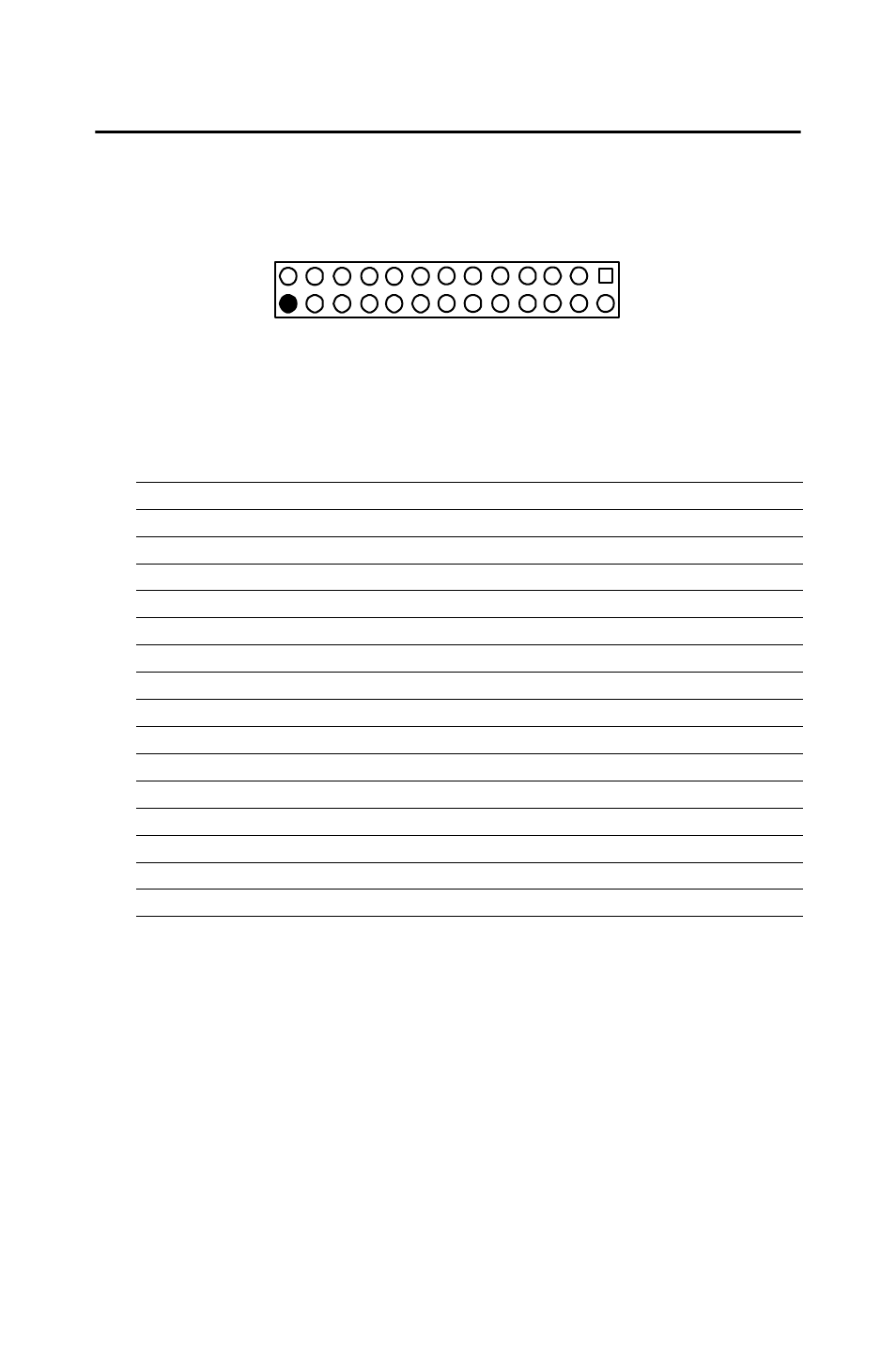

B.3 Parallel Port Connector (CN4)
Table B.3: Parallel port connector (CN4)
Pin
Signal Pin Signal
1 STROBE* 14 AUTOFD*
2 D0 15 ERR
3 D1 16 INIT*
4 D2 17 SLCTINI*
5 D3 18 GND
6 D4 19 GND
7 D5 20 GND
8 D6 21 GND
9 D7 22 GND
10 ACK* 23 GND
11 BUSY 24 GND
12 PE 25 GND
13 SLCT 26 N/C
* low active
15 26
13 2
25
12 1
14
