AIMB-744 User’s Manual
26

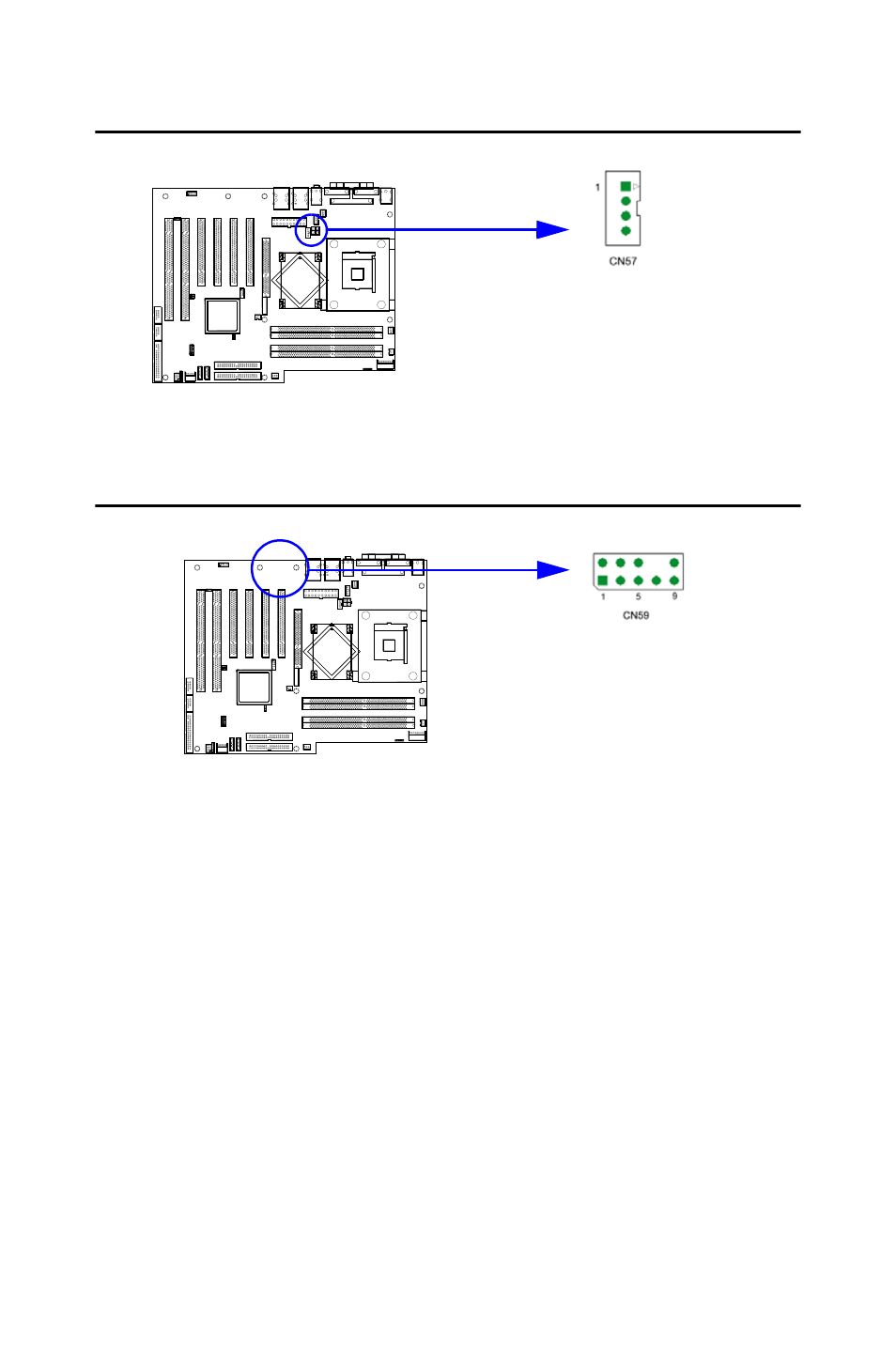

2.16 Aux Line-In connector (AUX IN; CN57)
The connector is for audio device with Line-in connector.
2.17 Front Panel audio connector (FP AUDIO; CN59)
The FPAUDIO is a front panel audio connector compliant with Intel®
Front Panel I/O Connectivity Design Guide. To direct the audio signal
output to the rear audio ports, the 5 and 6 pins, 9 and 10 pins must be
shorted by jumper to activate the rear panel audio function.
