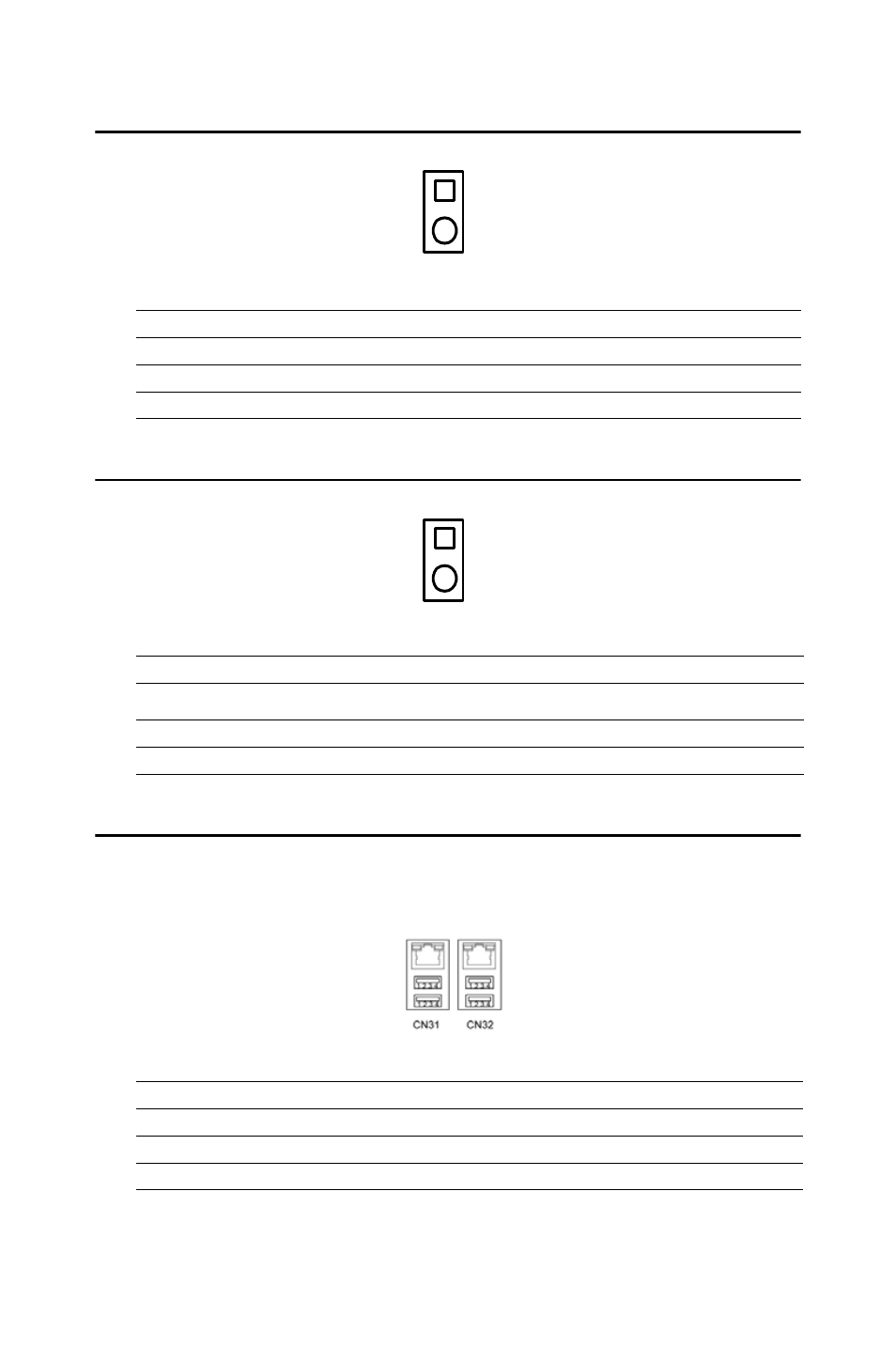

B.15 H/W Monitor Alarm (CN22)
B.16 SM Bus Connector (CN29)
B.17 USB/LAN ports (CN31 and CN32)
Table B.15: H/W monitor alarm (CN22)
Pin
Signal
1
Enable OBS alarm
2
Disable OBS alarm
Table B.16: SM Bus Connector (CN 29)
Pin
Signal
1
SMB_DATA
2
SMB_CLK
Table B.17: USB port
Pin
Signal
Pin
Signal
1
VCC
3
Data0+
2
Data0-
4
GND
1
1
