Chapter 3

3.2 Entering Setup

Turn on the computer and press to allow you to enter the BIOS
setup.

3.3 Standard CMOS Setup

Choose the “Standard CMOS Features” option from the “Initial Setup
Screen” menu, and the screen below will be displayed. This menu allows
users to configure system components such as date, time, hard disk drive,
floppy drive, display, and memory.

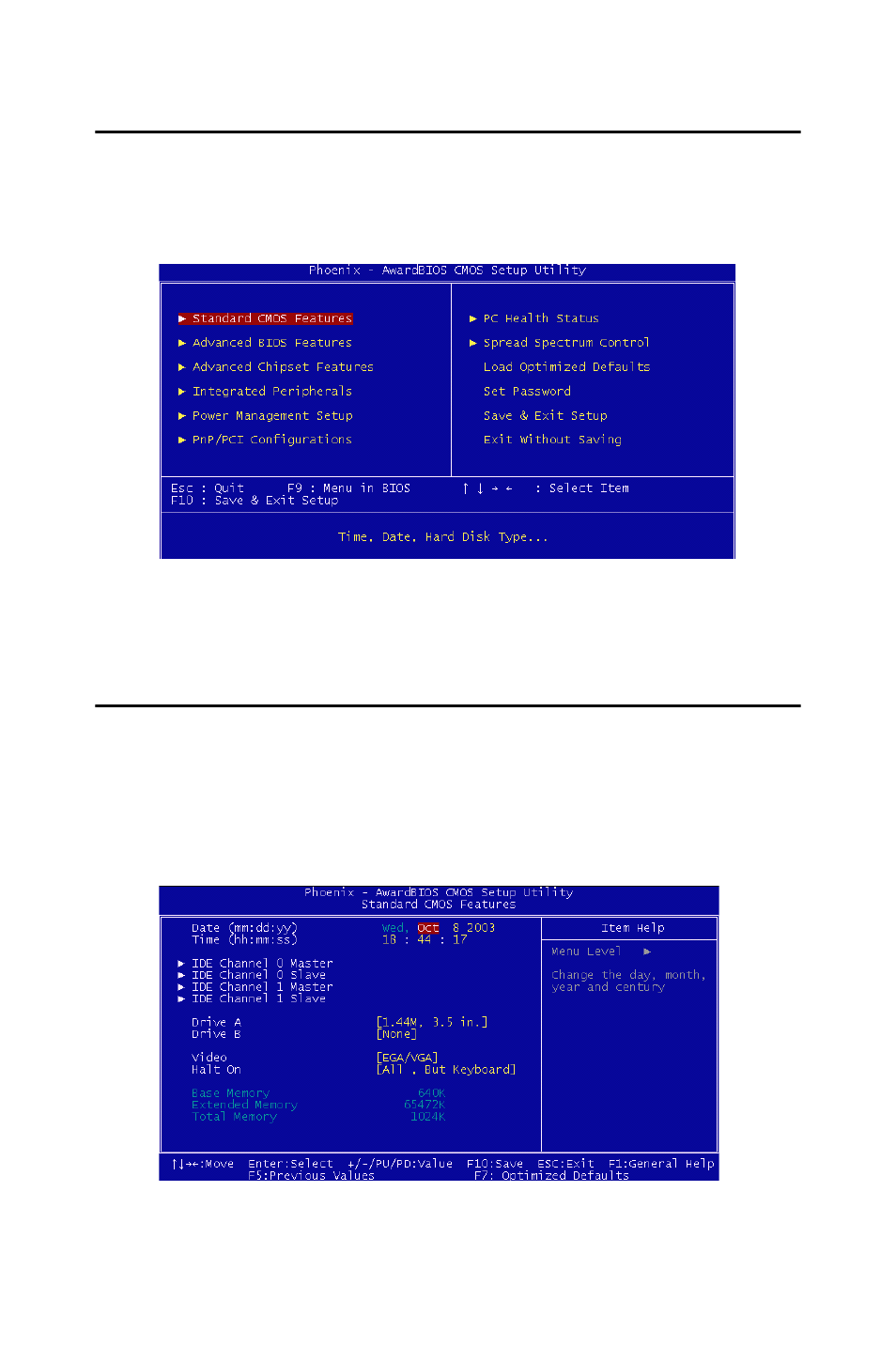

Figure 3.1: Award BIOS Setup initial screen

Figure 3.2: Standard CMOS features screen
