Page 42
AIMB-744 User’s Manual
28
which eases cabling to hard drives with thin and long cables.
2.21 Connecting to SNMP-1000 remote manager

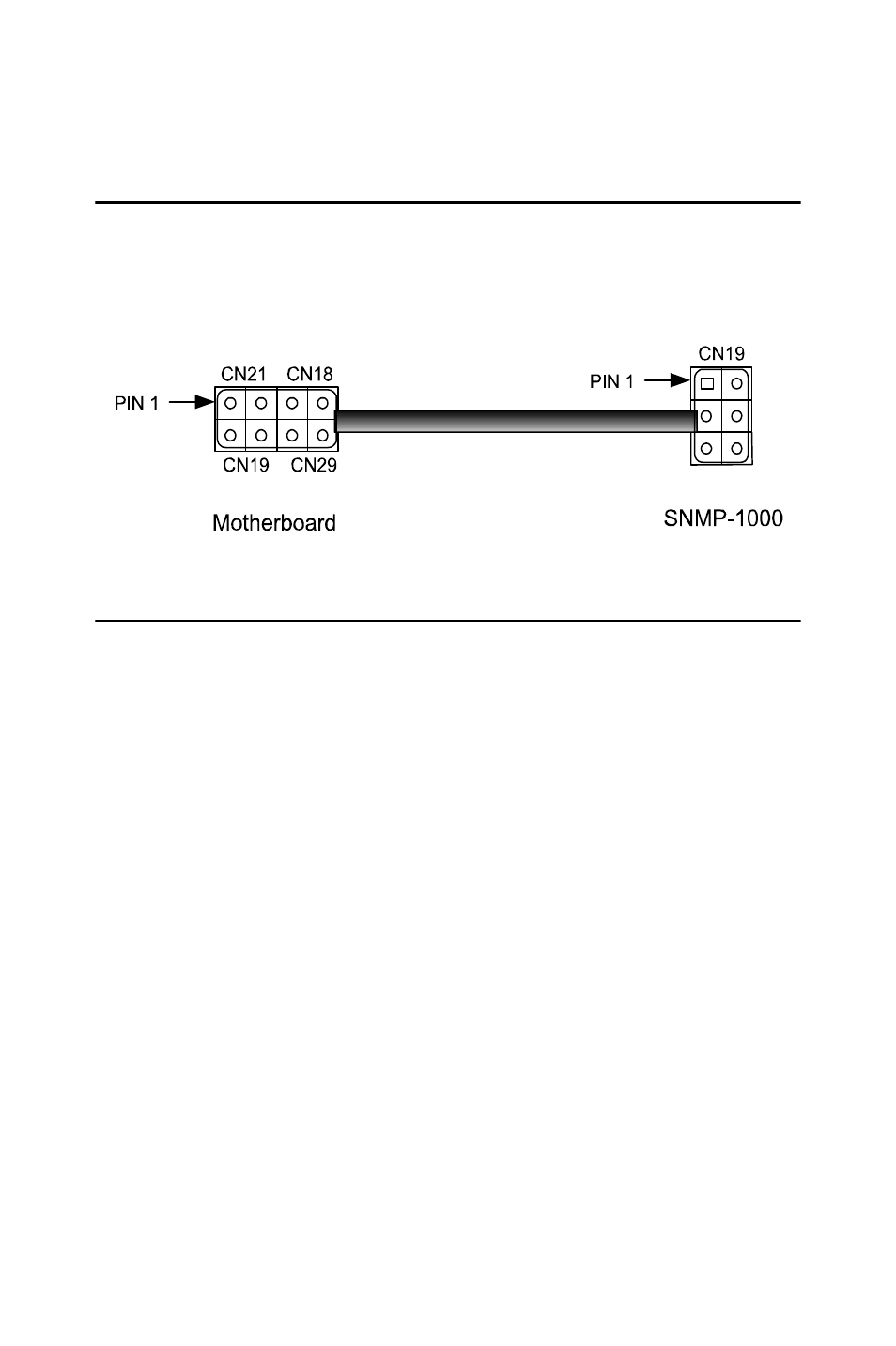

Use the 6-pin to 8-pin cable to connect the motherboard to SNMP-1000.
This cable comes with the SNMP-1000.
2.22 Auxiliary 4-pin power connector (ATX1)
To ensure the sufficiency of power supply for Pentium® 4 motherboard,
one auxiliary 4 pin power connector is available on AIMB-744. ATX1
must be used to provide sufficient 12V to ensure the stable operation of
the system.
