12 onboard fdc controller, 13 onboard serial port 1, 14 onboard serial port 2 – Intel Socket 478 AIMB-744 User Manual

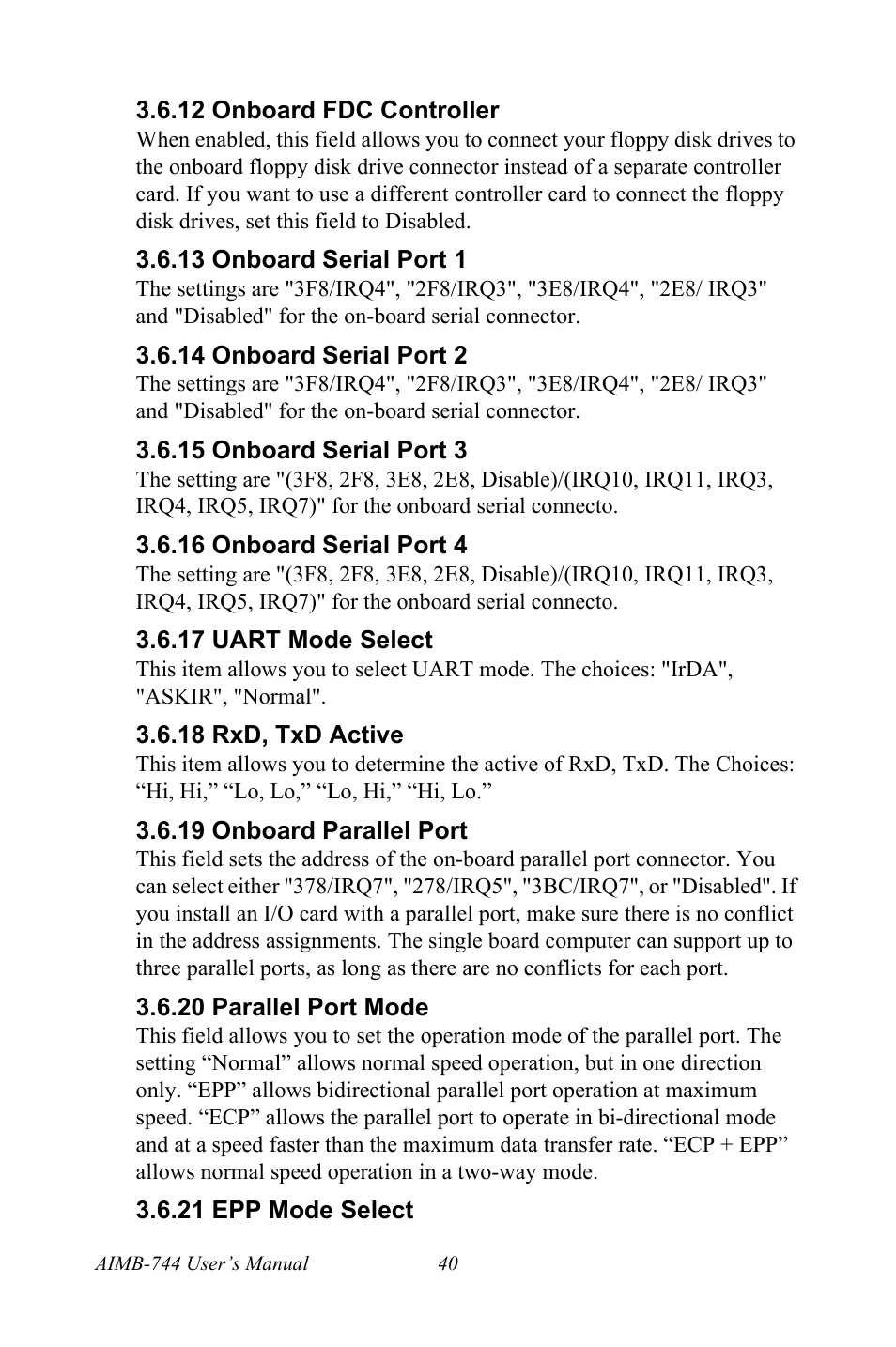

Page 54: 15 onboard serial port 3, 16 onboard serial port 4, 17 uart mode select, 18 rxd, txd active, 19 onboard parallel port, 20 parallel port mode, 21 epp mode select

12 onboard fdc controller, 13 onboard serial port 1, 14 onboard serial port 2 | 15 onboard serial port 3, 16 onboard serial port 4, 17 uart mode select, 18 rxd, txd active, 19 onboard parallel port, 20 parallel port mode, 21 epp mode select | Intel Socket 478 AIMB-744 User Manual | Page 54 / 108 12 onboard fdc controller, 13 onboard serial port 1, 14 onboard serial port 2 | 15 onboard serial port 3, 16 onboard serial port 4, 17 uart mode select, 18 rxd, txd active, 19 onboard parallel port, 20 parallel port mode, 21 epp mode select | Intel Socket 478 AIMB-744 User Manual | Page 54 / 108
