USER GUIDE
52

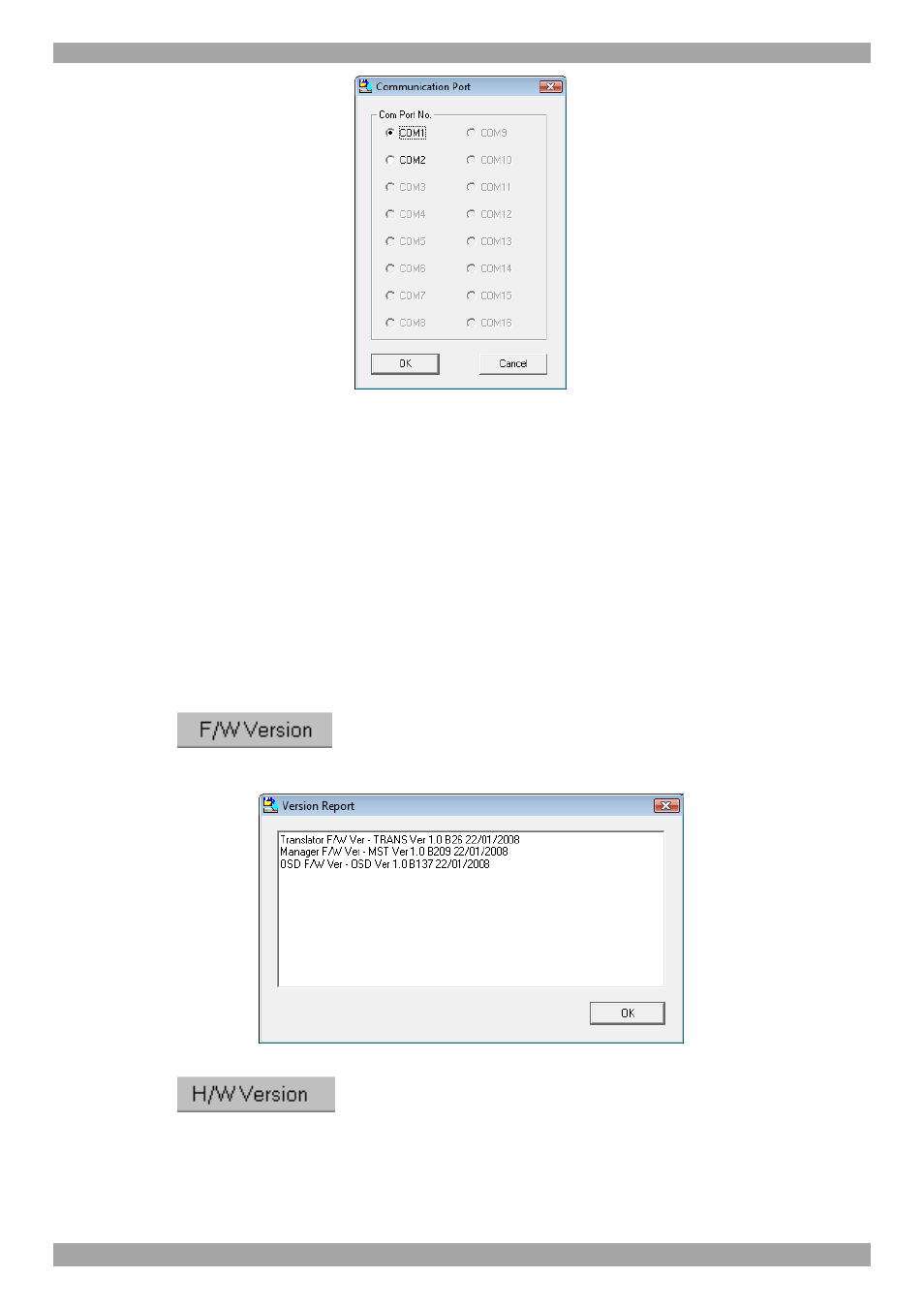

Figure 49 Com Port Dialog box
3. Choose the Com Port the RS232 Serial cable is connected to and click OK.
26.7 Verifying the version numbers
Before upgrading the firmware, you must first verify which firmware and hardware
versions you have.
26.7.1 Smart 108/116 IP Switch version
To verify the Smart 108/116 IP Switch version:
1. Select the 108/116 IP Switch check box.
2. Click
. The firmware versions of the Translator, Master and
OSD appear, see Figure 50.
Figure 50 Firmware version report
3. Click
. The hardware version of the Translator appears, see
Figure 51.
