USER GUIDE
10
9. Connecting the system

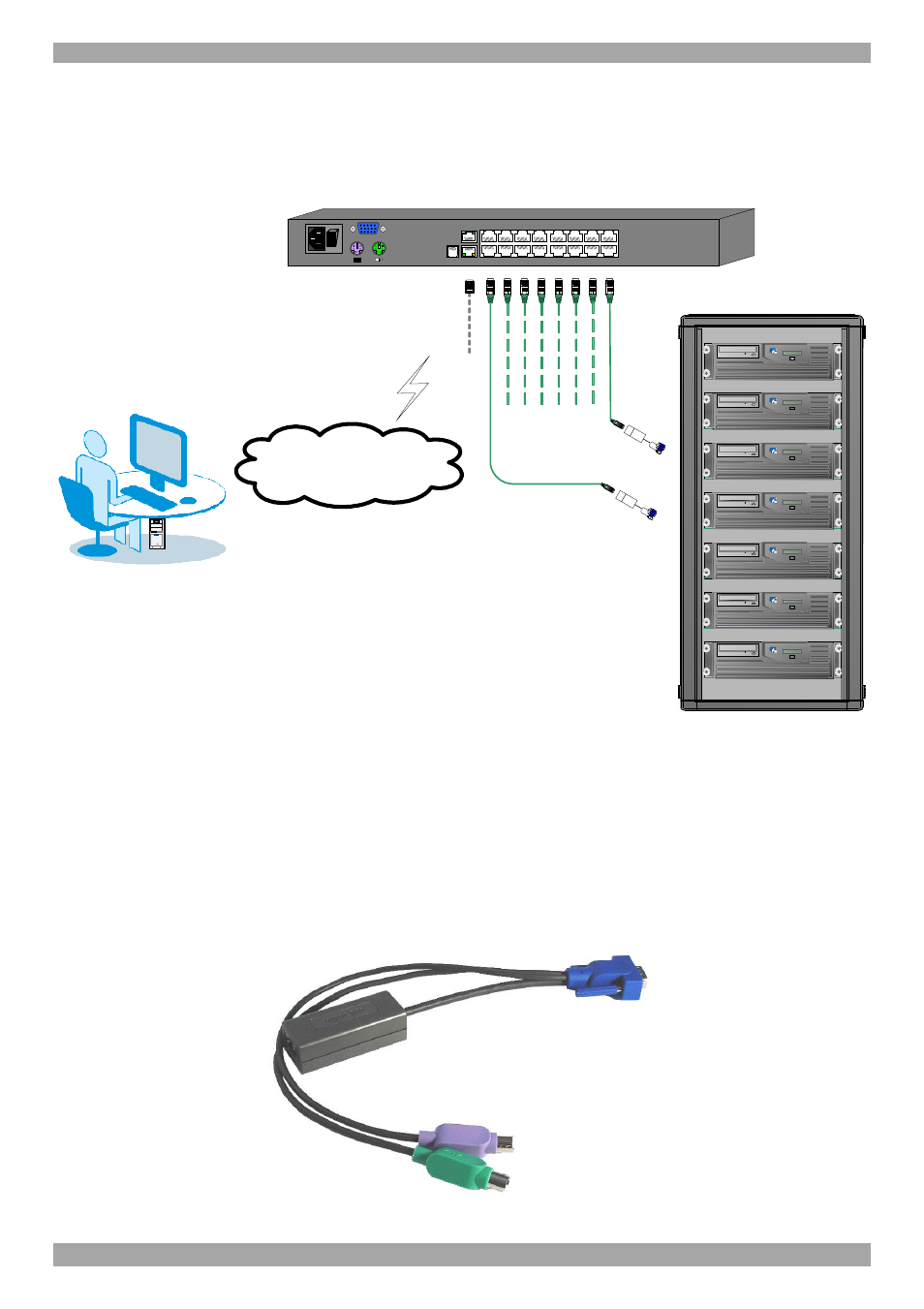

Figure 5 illustrates the Smart 108/116 IP system overview.
POWER
100-240 VAC 50/60 Hz
I
0
1
2
3
4
5
6
7
8
10
11
12
13
14
15
16
9
CONSOLE
FLASH
LAN
SERIAL
User over IP
Internet / VPN / LAN
To servers
M
IN
IC
O
M
M
IN
IC
O
M
h p w o r k s ta tio n b 26 0 0
h p w o r k s ta tio n b 26 0 0
h p w o r k s ta tio n b 26 0 0
h p w o r k s ta tio n b 26 0 0
h p w o r k s ta tio n b 26 0 0
h p w o r k s ta tio n b 26 0 0
h p w o r k s ta tio n b 26 0 0
To LAN port
RoC/RICCs
Figure 5 Smart 108/116 IP system overview
9.1 The RICC/ROCs
Each computer/ server is directly connected to the Smart 108/116 IP via the
appropriate RoC or RICC using CAT5 cable in a star configuration. No external
power is needed at the remote RICC/ROCs. The RICC/ROCs draw their power
from the computer’s keyboard port (RICC/ROC PS/2, SUN) or from the USB port
(RICC/ROC USB). The figures below illustrate the RoC PS/2 and RoC USB.
To computer’s
keyboard port
To computer’s
mouse port
To computer’s
Video card
Figure 6 ROC PS/2
