SECTION 2 INSTALLATION
2-6 WA840G
8 If necessary, seat an anchor in each hole. Use M5 x 38 mm
(#10-16 x 1½ inch) screws with a flat underside and maximum
screw head diameter of 10.5 mm to mount the access point.

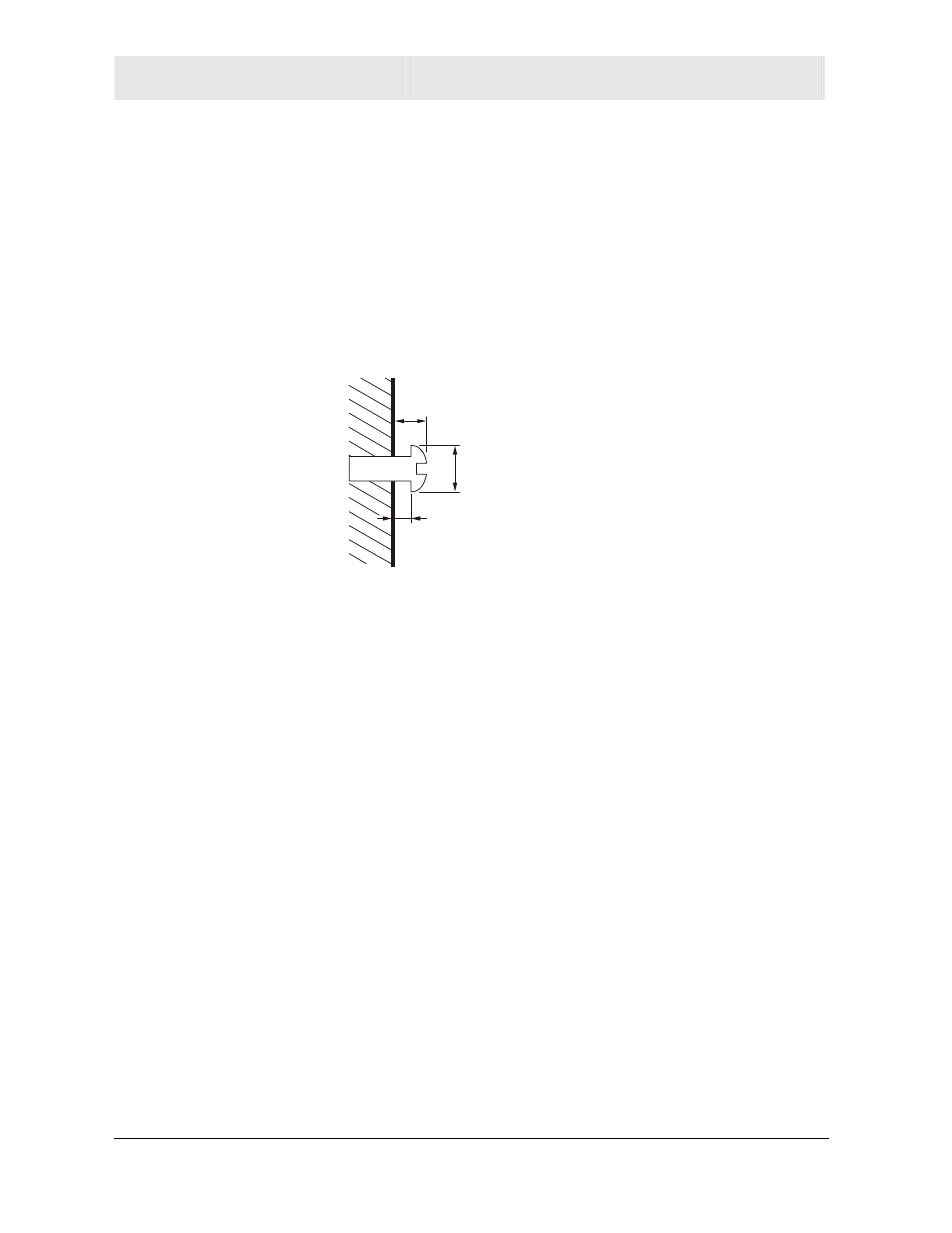

9 Using a screwdriver, turn each screw until part of it protrudes
from the wall, as shown:
! There must be 4.0 mm (.16 inches) between the wall and the
underside of the screw head.
! The maximum distance from the wall to the top of the screw
head is 7.6 mm (.3 in).
4.0 mm
10.5 mm (.4 inches)
maximum
7.6 mm (.3 inches)
maximum
10 Remove the front two plastic feet, nearest to the LED panel, from
the bottom of the access point to uncover the keyholes.
11 Place the access point so the keyholes are above the mounting
screws.
12 Slide the access point down until it stops against the top of the
keyhole opening.
13 Follow the installation procedures for connecting and configuring
the access point.
