7.5 Cleaning the processor section

After repeated prepress operations, silver residue from plates, paper dust,

chemicals, etc. may stick to the tank and/or processor rack, and stain

subsequent separations.

- Always clean the sections shown below when you replace the processing

chemical every three months.

- Always follow the procedures in "4.9 Turning OFF the power supply and

inspection at shutdown" on page 34 before shutting down the machine.

You must thoroughly read "1.3 Handling processing chemicals".

•

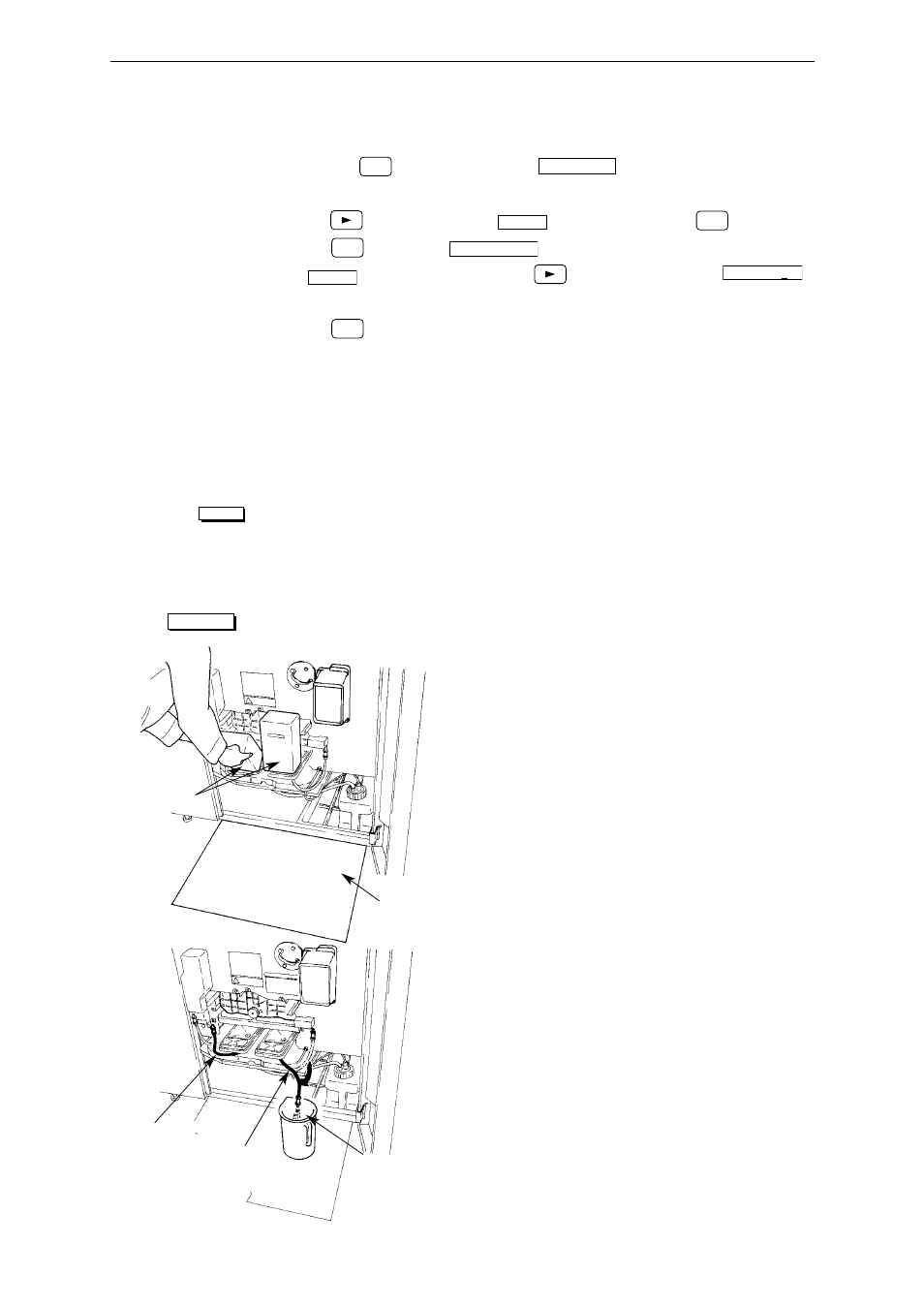

Cleaning the processor rack

1) Turn OFF the main power switch.
2) Lay out the maintenance mat.
3) Open the front door and remove

the replenisher bottle.

4) Discard the SLM-EAC and

SLM-EST into the waste chemi-
cal tank.

5) Hold the handle for the processor

rack section and pull out the
processor rack until it touches the
stopper.

Caution

Note

•

Resetting the punch counter

1) Pressing the

key bring up the

window on the display

panel.

2) Press the

key to select the

and then Press the

key.

3) Press the

key when

is displayed.

4) When

is displayed, press the

key to bring up the

display and then select CLR.

5) Press the

key resets the punch counter.

ENT.

< COUNT••••CLR

PUNCH DRYER >

ENT.

< Plate Data >

Chapter 7 Maintenance

- 51 -

Maintenance
mat

Waste chemical tank

Replenisher
bottle

SLM-EST
waste
chemical
hose

SLM-EAC
waste
chemical
hose
