Chapter 6 User menu
• Laser test exposure

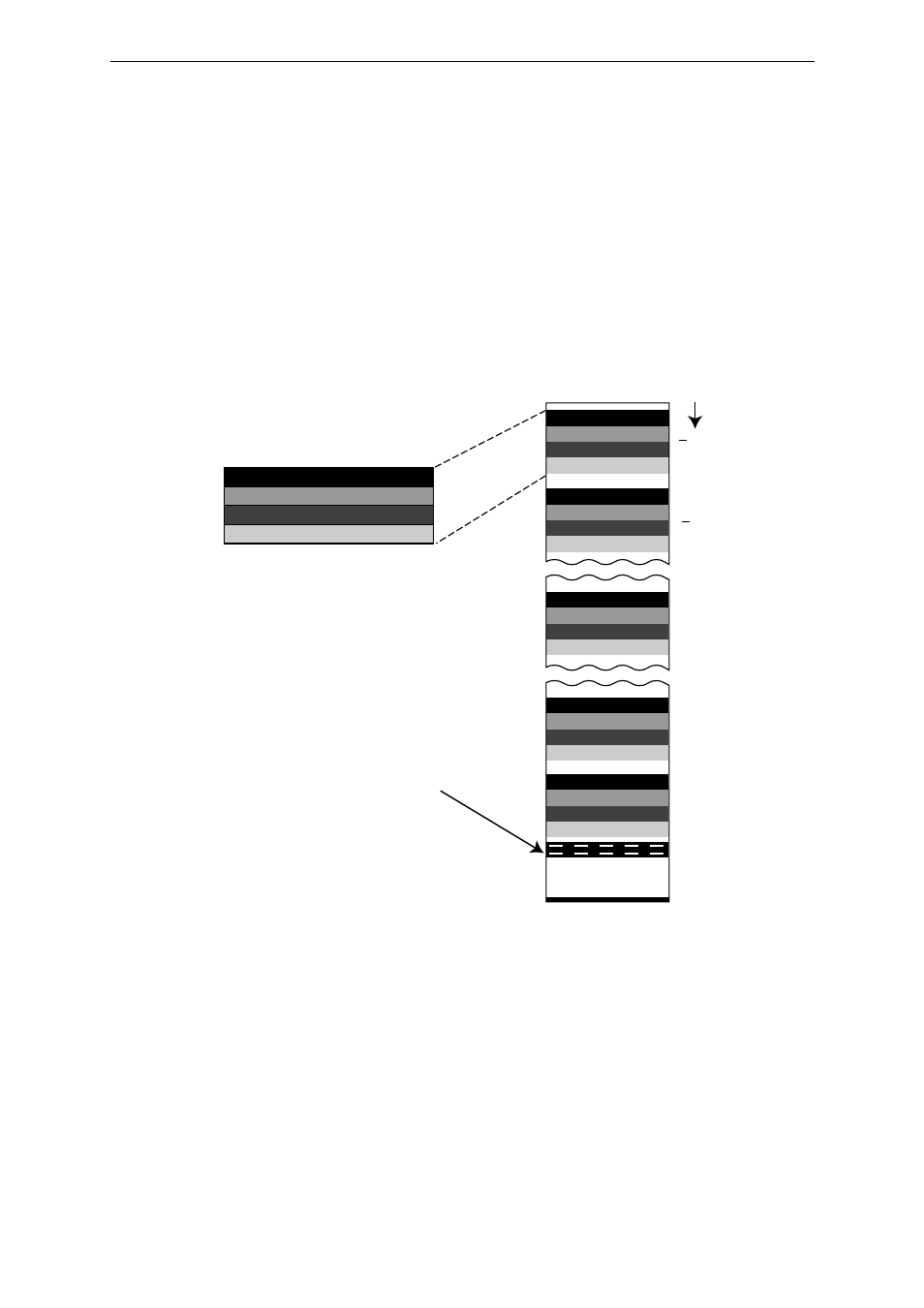

The plate is exposed using a specific pattern to determine the most suitable
laser for each resolution. (The selected resolution is displayed on the panel
display.) The table on the previous page shows the exposure resolution
pattern. Resolution code lines are shown at the bottom of the exposed pattern.
- 43 -
(Example 1200dpi)
Resolution code lines
1200 dpi ..... 2 lines
1500 dpi ..... 3 lines
1800 dpi ..... 4 lines
2400 dpi ..... 5 lines
Light intensity
value
+ 1 0
+ 8
0
8
1 0
100%
50%
95%
5%
