9

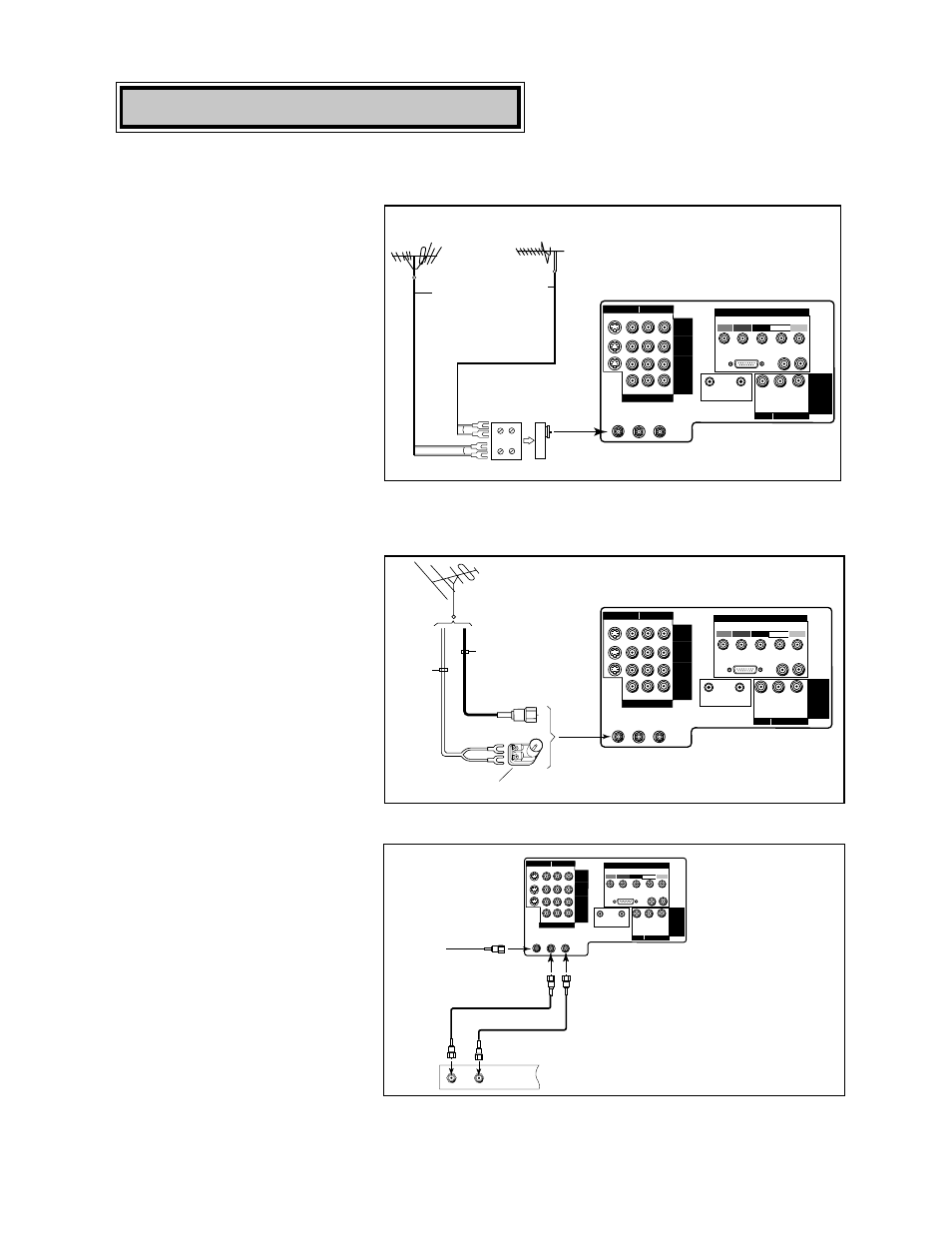

For antenna with twin flat leads
External
Antenna
or Cable
Back Side
Flat Twin Lead
UHF Antenna
(Channels 14-69)
VHF Antenna
(Channels 2-13)
300 Ohm to
75 Ohm
Combiner
Flat Twin Lead TV back panel
UHF
VHF
ANT-B
LOOP
OUT ANT-A
S-VIDEO V L R (MONO)
Y Cr Cb
VIDEO AUDIO
INPUT-1
INPUT-2
INPUT-3
HDTV VIDEO
Y Pr H V
HDTV CONTROL HDTV AUDIO
L R (MONO)
V L R (MONO) IR HOME
THEATER
ACTIVE A/V
NETWORK
MONITOR
OUTPUT
VIDEO AUDIO
DVD VIDEO
HIGH-DEFINITION INTERFACE
Pb
Separate UHF and VHF antennas
1. Connect the UHF and VHF
antenna leads to the UHF/VHF
combiner.
2. Push the combiner onto ANT-A
on the TV back panel.
300 Ohm Flat
Twin Lead
Optional 300 Ohm to 75 Ohm
Matching Transformer
75 Ohm
Coaxial Cable
TV back panel
ANT-B
LOOP
OUT ANT-A
S-VIDEO V L R (MONO)
Y Cr Cb
VIDEO AUDIO
INPUT-1
INPUT-2
INPUT-3
HDTV VIDEO
Y Pr H V
HDTV CONTROL HDTV AUDIO
L R (MONO)
V L R (MONO) IR HOME
THEATER
ACTIVE A/V NETWORK
MONITOR
OUTPUT
VIDEO AUDIO
DVD VIDEO
HIGH-DEFINITION INTERFACE
Pb
Twin lead antenna or wall outlet cable
For cable or antenna with
coaxial lead
TV to Antenna or Wall Outlet Cable
Connections
1. Connect the incoming cable to
ANT-A on the TV back panel.
2. Connect two coaxial cables as
follows:
• One from LOOP-OUT on the TV
back panel to IN on the back of
the cable box.
• One from OUT on the back of
the cable box to ANT-B on the
TV back panel.
ANT-B LOOP OUT ANT-A
S-VIDEO V L R (MONO)
Y Cr Cb
VIDEO AUDIO
INPUT-1
INPUT-2
INPUT-3
HDTV VIDEO
Y Pr H V
HDTV CONTROL HDTV AUDIO L R (MONO)
V L R (MONO) IR HOME THEATER
ACTIVE A/V NETWORK
MONITOR OUTPUT
VIDEO AUDIO
DVD VIDEO
HIGH-DEFINITION INTERFACE
Pb
OUT
Cable Box
back panel section
TV back panel
IN
Incoming
Cable
1. Connect the 300 ohm twin leads
to the transformer.
2. Push the 75 ohm side of the
transformer onto ANT-A on the
TV back panel.
Connect the incoming cable
to ANT-A on the TV back
panel.
Connection of TV to Cable Box
