Use the buttons
to move the flashing bracket
to a position that needs
adjustment.
Press to stop the
flashing. Use the
buttons to move the red or
blue line.
A position is converged when
all three lines combine to
make a white line.
Press when aligned, the
bracket will start flashing.
Use to move to
a new position.
When finished converging
press the button to save
your changes.
Use the button to
switch adjusting between the
Red and Blue lines.

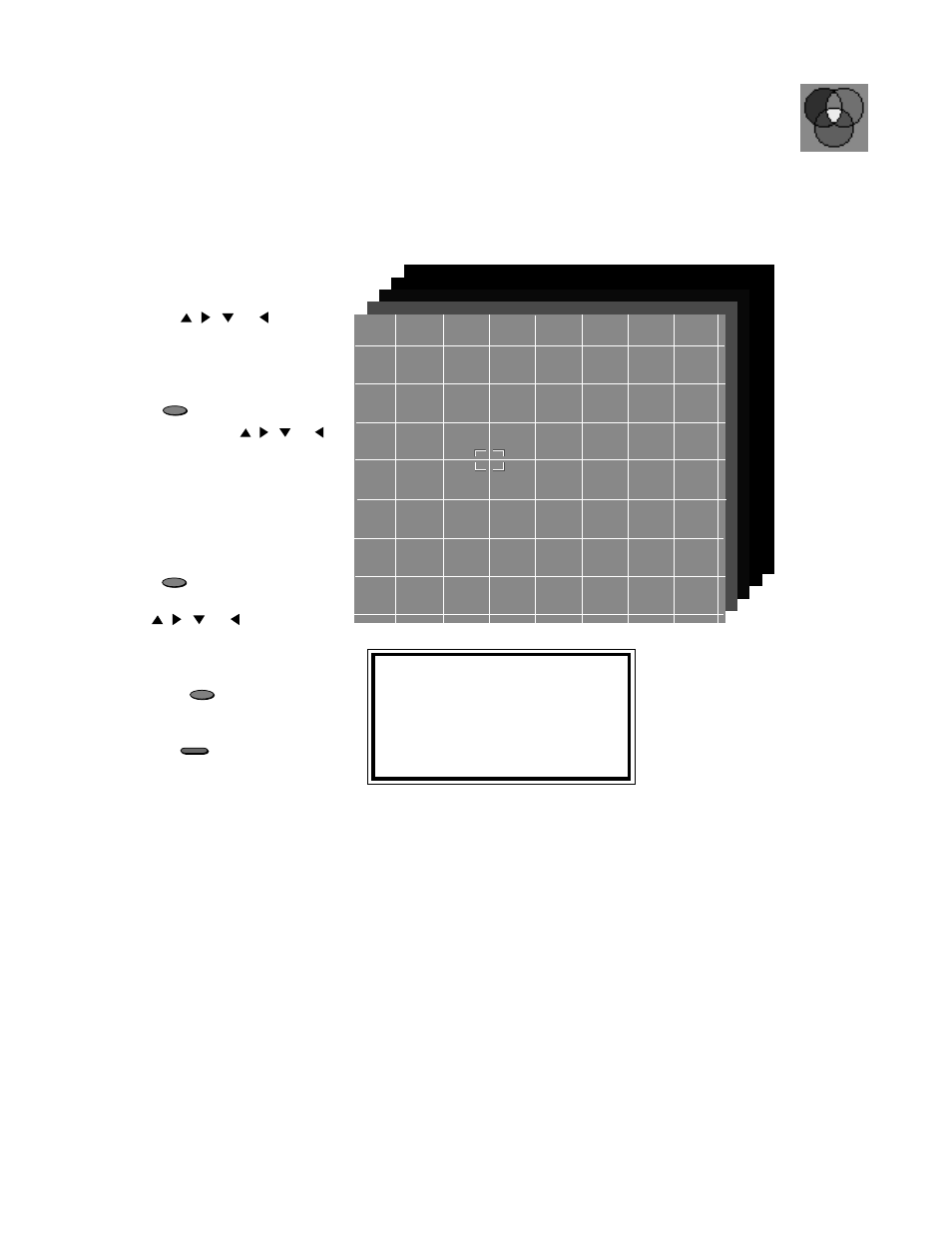

CONVERGENCE MENU
ADVANCED FEATURES MENU
MAIN MENU
RED OR BLUE CONVERGENCE
Press INFO for help
Before you can adjust the
Advanced Convergence,
you must adjust the
convergence for both Red
and Blue.
I M P O R T A N T I M P O R T A N T I M P O R T A N T I M P O R T A N T I M P O R T A N T I M P O R T A N T I M P O R T A N T I M P O R T A N T I M P O R T A N T I M P O R T A N T
There are more than 64 line
intersections. However, the
bracket will only stop on the 64
adjustment positions.
The Advanced Features Menu, continued
or , ,
ENTER
or , ,
ENTER
or , ,
MENU
VIDEO
Advanced
Conver-
gence
