10
Audio Video Connections
1. Connect a video cable from VIDEO,
OUT on the VCR back panel to VIDEO,
INPUT-1 or INPUT-2 on the TV back
panel.
• If you have a S-VHS VCR, follow the
same steps, using the S-Video terminals
on the VCR and TV.
2. Connect a set of audio cables from
AUDIO, OUT on the VCR back panel
to AUDIO, INPUT-1or INPUT-2 on the
TV back panel. The red cable connects
to the R (right) channel and the white
cable connects to the L (left). If your
VCR is non-stereo, connect only the L
(left) cable. ANT-B
LOOP
OUT ANT-A
S-VIDEO V L R (MONO)
Y Cr Cb
VIDEO AUDIO
INPUT-1
INPUT-2
INPUT-3
HDTV VIDEO
Y Pr H V
HDTV CONTROL HDTV AUDIO L R (MONO)
V L R (MONO) IR HOME THEATER
ACTIVE A/V NETWORK
MONITOR
OUTPUT
VIDEO AUDIO
DVD VIDEO
HIGH-DEFINITION INTERFACE
Pb
TV back panel
IN
OUT
Antenna
AUDIO OUT AUDIO IN VIDEO OUT
(Y/C)
MONITOR
1
L
R
L
R
1 2
VCR back panel
If your VCR has a video channel ON/OFF switch, set to OFF.
White
Red
W
h
i
t
e
R
e
d
Attach
only
one
cable type
Attach
only
one
cable type

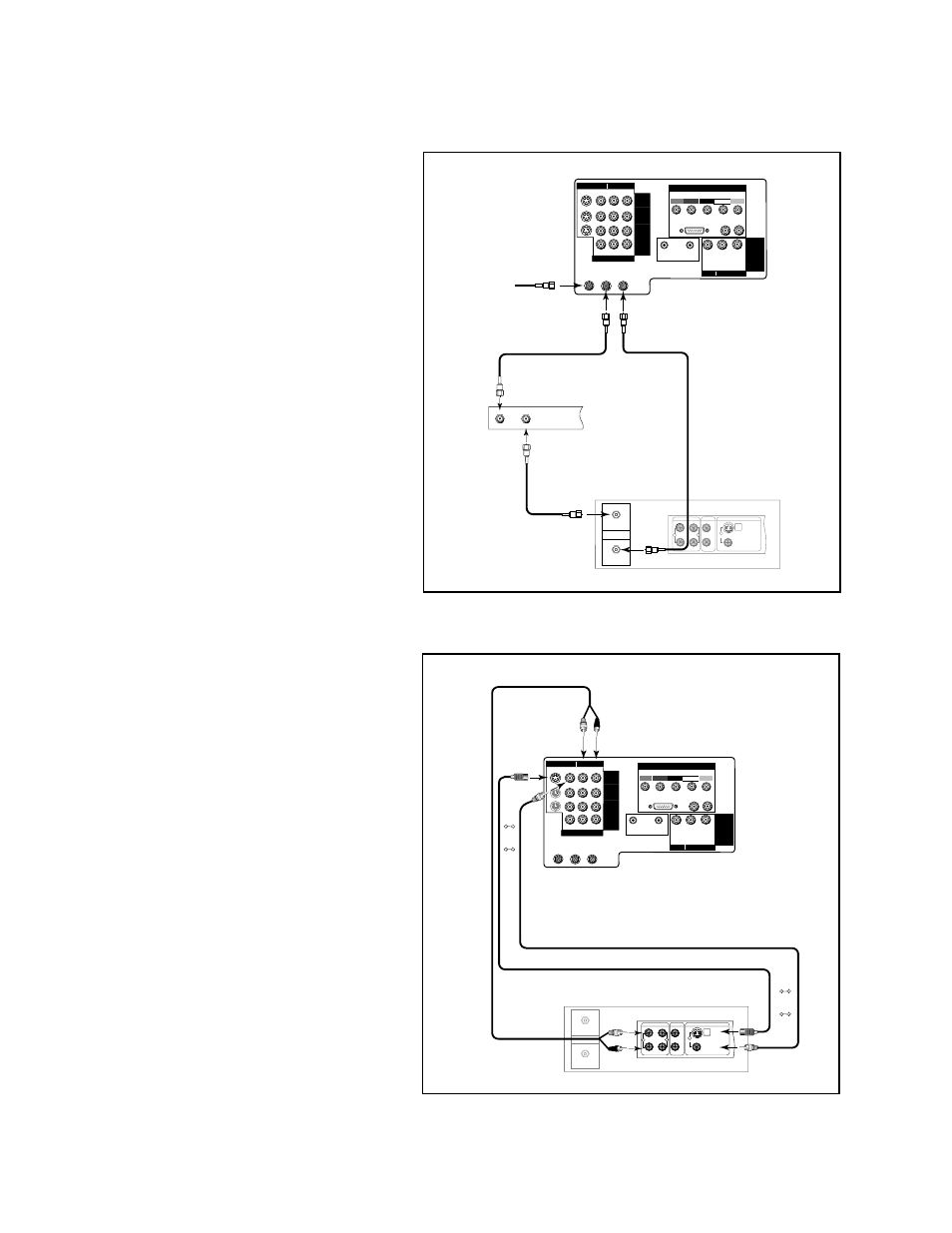

Connection of TV to VCR and Cable Box
ANT-B
LOOP
OUT ANT-A
S-VIDEO V L R (MONO)
Y Cr Cb
VIDEO AUDIO
INPUT-1
INPUT-2
INPUT-3
HDTV VIDEO
Y Pr H V
HDTV CONTROL HDTV AUDIO L R (MONO)
V L R (MONO) IR HOME THEATER
ACTIVE A/V NETWORK
MONITOR OUTPUT
VIDEO AUDIO
DVD VIDEO
HIGH-DEFINITION INTERFACE
Pb
TV back panel
Incoming Cable
Cable Box
Rear Terminals
OUT IN
IN
OUT
Antenna
AUDIO OUT AUDIO IN VIDEO OUT
(Y/C)
MONITOR
1
L
R
L
R
1 2
VCR back panel
If your VCR has a video channel
ON/OFF switch, set to OFF.
1. Connect the incoming cable to ANT-A
on the TV back panel.
2. Connect three coaxial cables as fol-
lows:
• One from LOOP-OUT on the TV back
panel to IN on the back of the cable
box.
• One from OUT on the back of the
cable box to ANTENNA IN on the
VCR back panel.
• One from ANTENNA OUT on the
VCR back panel to ANT-B on the TV
back panel.
