71
The S-video terminals connect to a S-video signal from a Super VHS
(S-VHS) VCR, laser disc player or other audio video device to the TV.
If you connect an input to S-Video, you cannot connect to standard
video. For standard video, connect the video output from a standard
VCR or other equipment to the video terminals of the TV.
Connect the audio output from a VCR or other equipment to the
TV.
Connect the S-Video or Video the same way as for INPUT-1 and 2.
Or, connect the component video (Y, Cr, Cb) and audio signals from
a DVD player or other equipment with component video outputs to
the TV. If you connect the three component video terminals (DVD
VIDEO) and you wish to use the TV’s built in speakers, use the
adjacent INPUT-3 audio inputs for your audio connection. (For
signal compatibility information, see Appendix 3)
If you connect the component video cables you cannot use the S-
Video or Video for INPUT-3.
ANT-A and ANT-B receive signals from VHF/UHF antennas or a
cable system. LOOP OUT sends the ANT-A signal out to another
component (such as a cable box or VCR).
Connect a HDTV receiver to receive digital broadcast signals. The
15 pin HDTV CONTROL connection is used with the optional
Mitsubishi HD-1080 receiver.
Some HDTV receivers do not use the H and V terminals. Check
your HDTV receiver Owner’s Guide for correct connections.
ANT-B
LOOP
OUT ANT-A
S-VIDEO V
INPUT-1
INPUT-2
VIDEO
L R (MONO)
INPUT-1
INPUT-2
AUDIO
Antenna (ANT-A, LOOP-OUT,
ANT-B)
INPUT-1 and 2 audio input
INPUT-3, S-Video, Video and
DVD component video and
audio input
Y Cr Cb
INPUT-3
DVD VIDEO
HDTV interface
L
HDTV VIDEO
HDTV CONTROL HDTV AUDIO
R (MONO)
HIGH-DEFINITION INTERFACE
Y Pr H V Pb

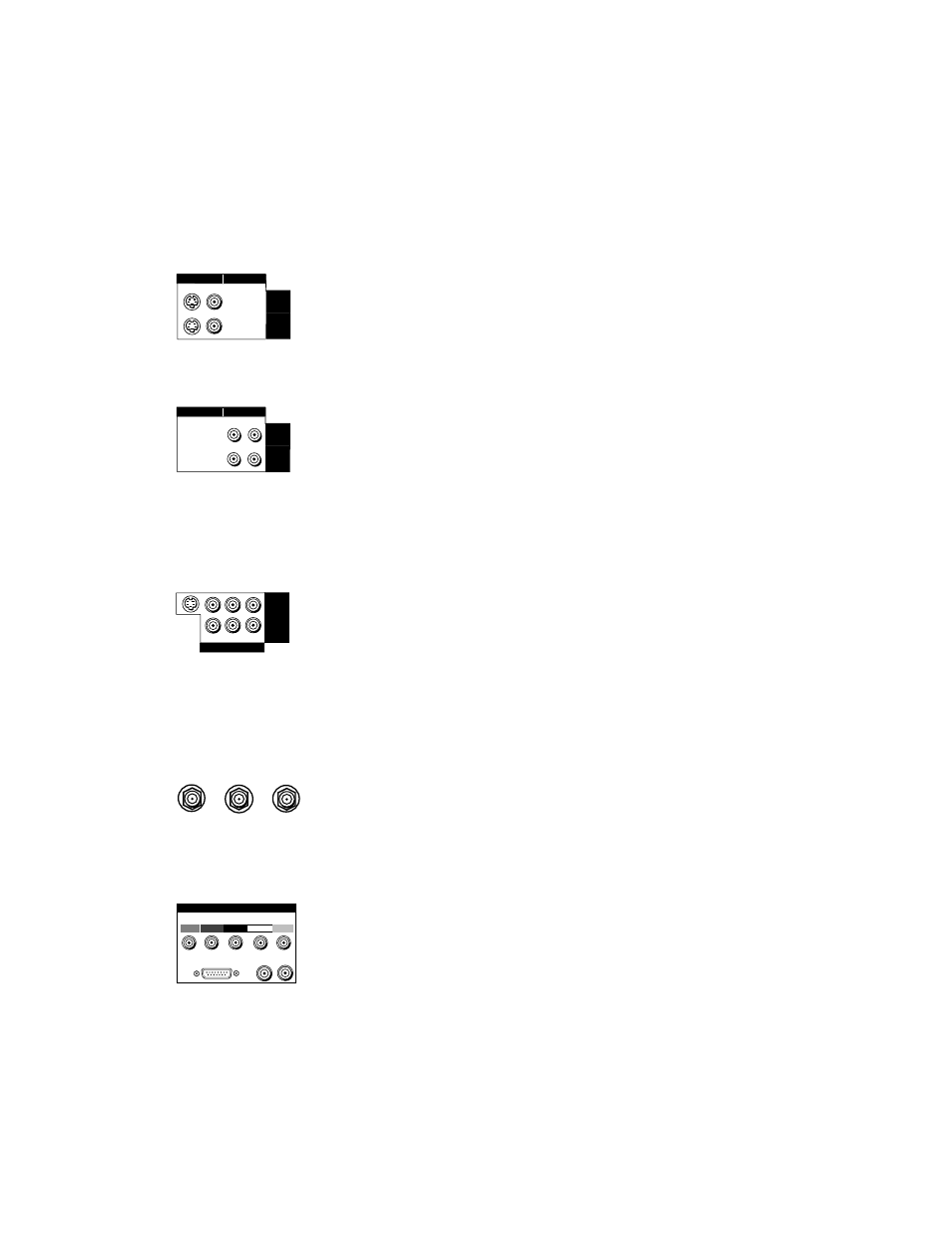

Back Panel Functions, continued
INPUT-1 and 2 S-Video, Video
