Connects Mitsubishi products that have an A/V network terminal.
Use with the IR emitter (included with this TV) and a Mitsubishi A/V
receiver to set up a Home Theater system.
Sends the TV video and audio signals (excluding component video or
DTV), to an A/V receiver or other equipment.
For models WT-46805, WS-55805, WS-55905, WS-65905 and
WS-73905. Sends the PIP’s or POP’s audio signal to an amplifier or
wireless headphones. If no PIP or POP picture is displayed, then PIP
AUDIO OUTPUT will be the same audio as the main TV picture.

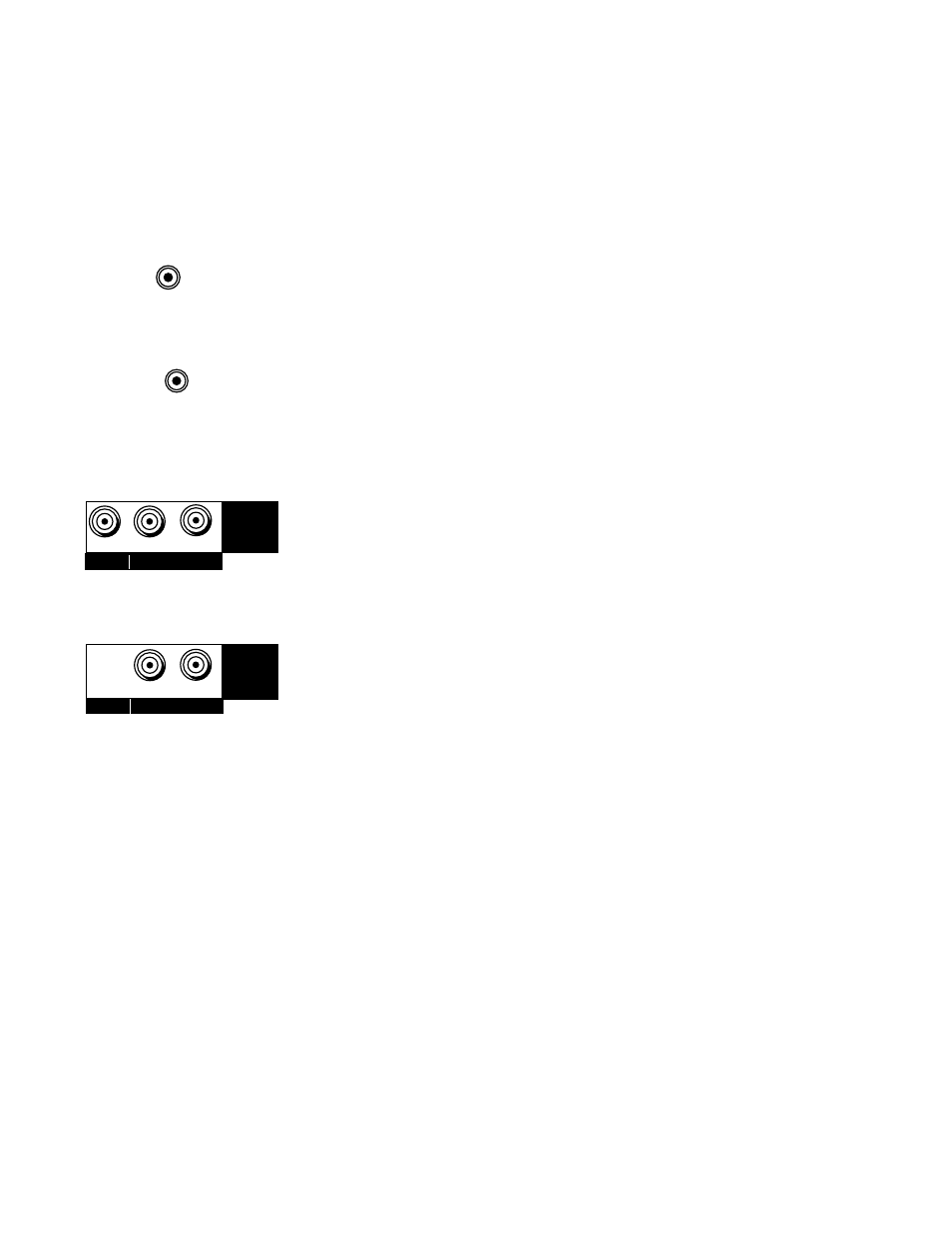

IR HOME THEATER
ACTIVE A/V
NETWORK
MONITOR OUTPUT
IR
HOME
THEATER
V L R
(MONO)
MONITOR
OUTPUT
VIDEO AUDIO
PIP AUDIO OUTPUT
(MONO) L R
PIP
AUDIO
OUTPUT
AUDIO
Back Panel Functions, continued
Active A/V Network
