15
1. Connect the outside antenna to ANT
on the optional HD-1080 receiver.
2. Connect the incoming cable to ANT-A
on the television back panel.
3. Connect the HDTV cable to HDTV
CONTROL on the TV back panel and
the HDTV receiver back panel.
4. OPTIONAL: To use TV speakers,
connect the audio cables to HDTV
L(left) and R(right) AUDIO on the
HDTV receiver and the television back
panel.
5. Connect the color coded BNC cables
to HDTV VIDEO on the HDTV re-
ceiver. After fitting the BNC to RCA
adaptors onto the BNC cables, connect
them to the television back panel. The
sequence for connecting the color
cables is:
Y = green cable
Pr = red cable
Pb = blue cable
H = white cable
V = yellow cable
THIS PRODUCT CONTAINS ONE OR MORE PROGRAMS PROTECTED UNDER INTERNATIONAL AND U.S. COPYRIGHT LAWS AS UNPUBLISHED WORKS. THEY ARE CONFIDENTIAL AND PROPRIETARY TO DOLBY LABORATORIES. THEIR REPRODUCTION OR DISCLOSURE IN WHOLE OR IN PART, OR THE PRODUCTION OF DERIVATIVE WORKS THEREFROM WITHOUT THE EXPRESS PERMISSION OF DOLBY LABORATIES IS PROHIBITED. COPYRIGHT 1982-1998 BY DOLBY LAORATORIES, INC. ALL RIGHTS RESERVED.
ANT
A T S C C E R T I F I E D
D I G I T A L T E L E V I S I O N TM
U L R
MITSUBISHI
HDTV RECEIVER
AC 120V 60 Hz 60 W DISTRIBUTED BY MITSUBISHI CONSUMER
ELECTRONICS AMERICA, INC.
MODEL NO. HD-1080
HDTV CONTROL
6100 ATLANTIC BOULEVARD NORCROSS, GA 30071-1386
MADE IN JAPAN
LISTED
536Y
MANUFACTURED UNDER LICENSE FROM DOLBY LABORATORIES
R G B
HDTV VIDEO HDTV AUDIO DIGITAL AUDIO OUT
H V
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS; (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUSTACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.
AC LINE
ANT-B
LOOP
OUT ANT-A
S-VIDEO V L R (MONO)
Y Cr Cb
VIDEO AUDIO
INPUT-1
INPUT-2
INPUT-3
HDTV VIDEO
Y Pr H V
HDTV CONTROL HDTV AUDIO
L R (MONO)
V L R (MONO)
L R (MONO)
IR
HOME
THEATER
ACTIVE A/V
NETWORK
MONITOR
OUTPUT
PIP
AUDIO
OUTPUT
VIDEO AUDIO
DVD VIDEO
HIGH-DEFINITION INTERFACE
Pb
From the
Cable or
Cable Box
To Digital Audio Receiver
From the
Antenna

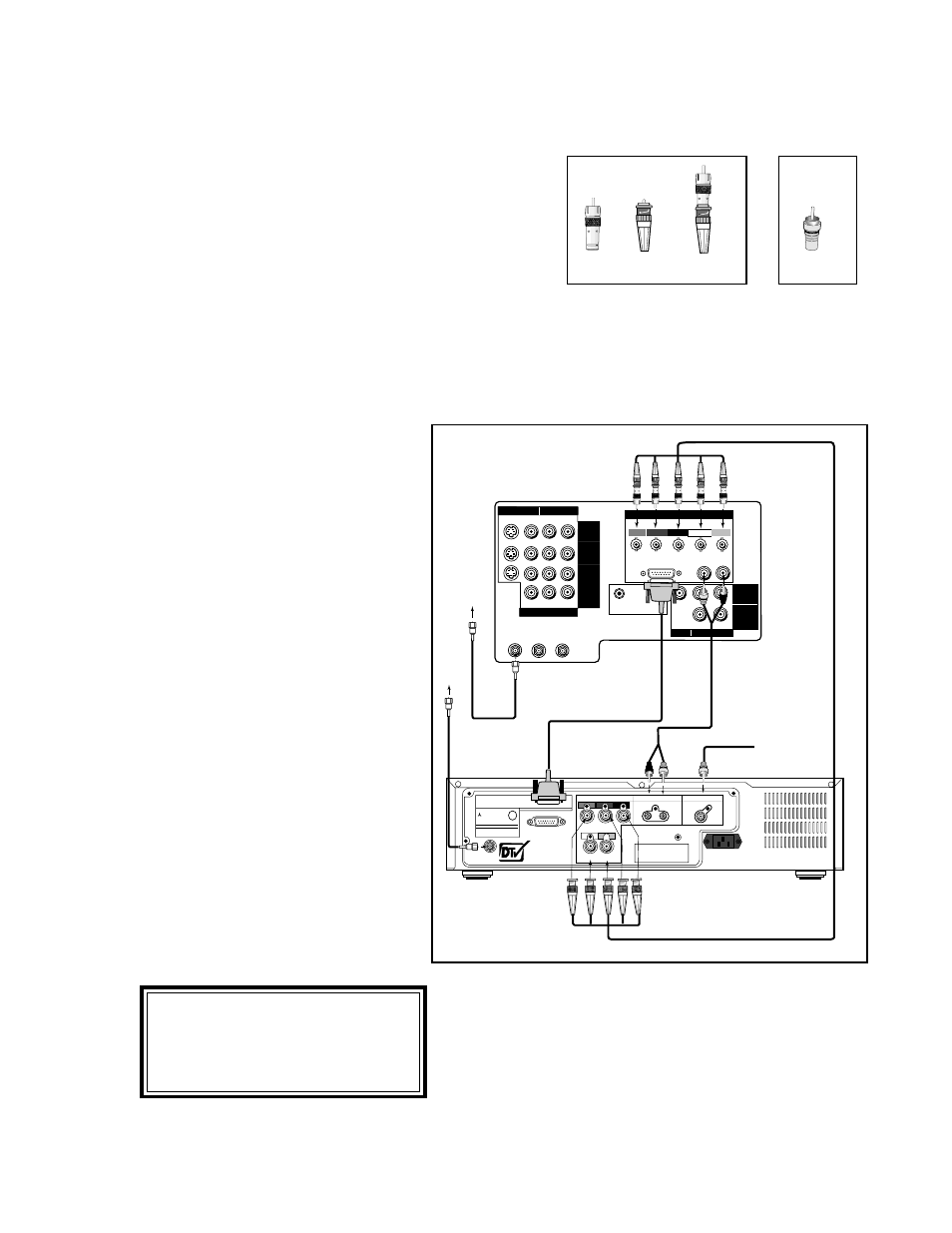

Connection of TV and Cable to Mitsubishi's HD-1080 Receiver
Connectors for TV and Cable to HDTV Receiver
The TV back panel has 5 RCA type connectors, for the HDTV
connection. The back panel of your HDTV receiver may use
RCA type connectors or BNC type connectors for its connec-
tion. If your HDTV receiver comes with BNC type connec-
tions, you will have to purchase BNC to RCA adaptors, to
connect the TV to the HDTV receiver. These adaptors should
be available at electronics supply stores.
BNC to
RCA BNC
Adaptor Connector Adaptor
Fitted to
Connection RCA
Connector
or
I M P O R T A N T I M P O R T A N T I M P O R T A N T I M P O R T A N T I M P O R T A N T I M P O R T A N T I M P O R T A N T I M P O R T A N T I M P O R T A N T I M P O R T A N T
For Digital Audio connections, see
the Owner's Guides of your HDTV
receiver.
