Connection of TV to VCR and Antenna or
Wall Outlet Cable
ANT-B
LOOP
OUT
ANT-A
S-VIDEO
V
L
R
(MONO)
Y
Cr
Cb
VIDEO
AUDIO
INPUT-1
INPUT-2
INPUT-3
HDTV VIDEO
Y
Pr
H
V
HDTV CONTROL
HDTV AUDIO
L
R
(MONO)
V
L
R
(MONO)
IR
HOME
THEATER
ACTIVE A/V
NETWORK
MONITOR
OUTPUT
VIDEO
AUDIO
DVD VIDEO
HIGH-DEFINITION INTERFACE
Pb
TV back panel
Incoming Cable
IN
OUT
Antenna
AUDIO OUT
AUDIO IN
VIDEO OUT
(Y/C)
MONITOR
1
L
R
L
R
1
2
VCR back panel
If your VCR has a video channel
ON/OFF switch, set to OFF.

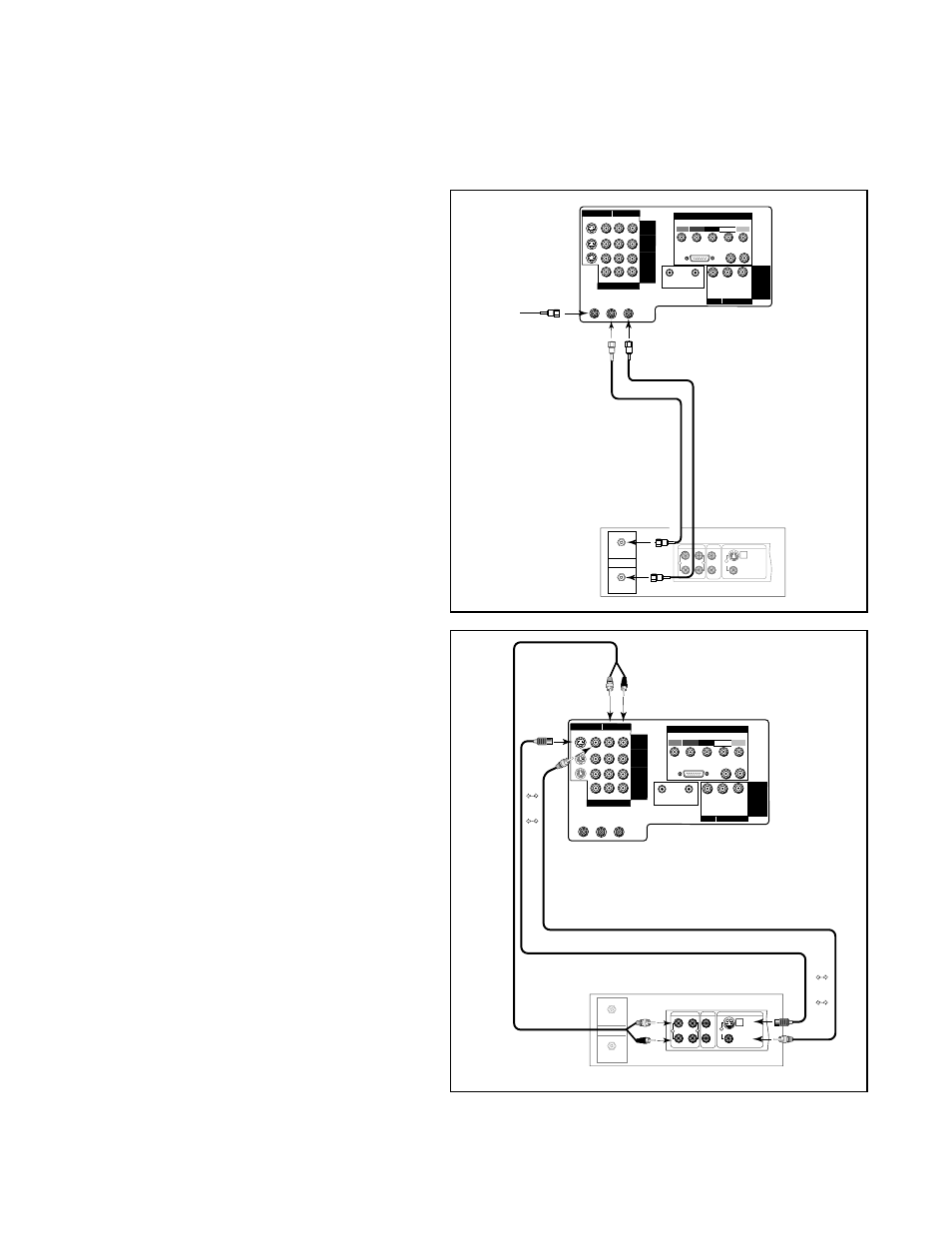

Audio/Video Connections
1. Connect a video cable from VIDEO, OUT
on the VCR back panel to VIDEO, INPUT-1
or INPUT-2 on the TV back panel (INPUT-
1 shown).
• If you have a S-VHS VCR, follow the same
steps, using the S-Video terminals on the
VCR and TV.
2. Connect a set of audio cables from AU-
DIO OUT on the VCR back panel to
AUDIO, INPUT-1 or INPUT-2 on the TV
back panel. The red cable connects to the
R (right) channel and the white cable
connects to the L (left). If your VCR is
non-stereo, only connect the L (left) cable
(Input-1 shown).
Antenna/Cable Connections
1. Connect the incoming cable to ANT-A on
the TV back panel.
2. Connect two coaxial cables as follows:
• One from LOOP-OUT on the TV back
panel to ANTENNA IN on the VCR back
panel.
• One from VCR back panel ANTENNA OUT
to ANT-B on the TV back panel.
