PARAMETER MEASUREMENT INFORMATION (CONTINUED)
AC transient rise/fall time specifications

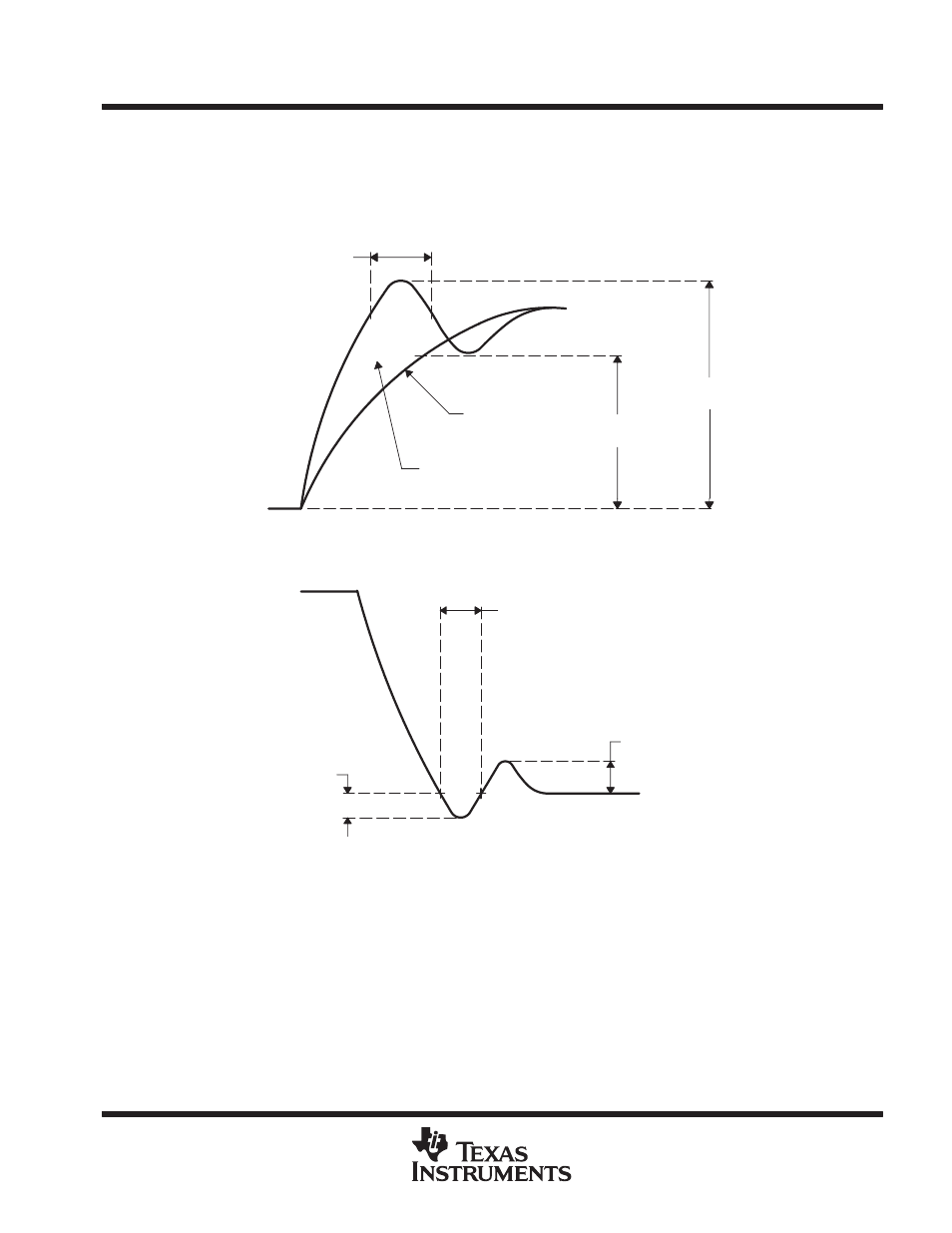

Figure 19 and Figure 20 show the AC transient specifications for Rise and Fall Time. For device-specific
information on these values, refer to the Recommended Operating Conditions section of this Data Sheet.
VOS (max)
VIH (min)
Minimum
Risetime
Waveform
Valid Region
t = 0.3 tc (max)†
Ground
Figure 19. AC Transient Specification Rise Time
† tc = the peripheral cycle time.
t = 0.3 tc(max)†
VIL (max)
Ground
VUS (max)
Figure 20. AC Transient Specification Fall Time
† tc = the peripheral cycle time.
