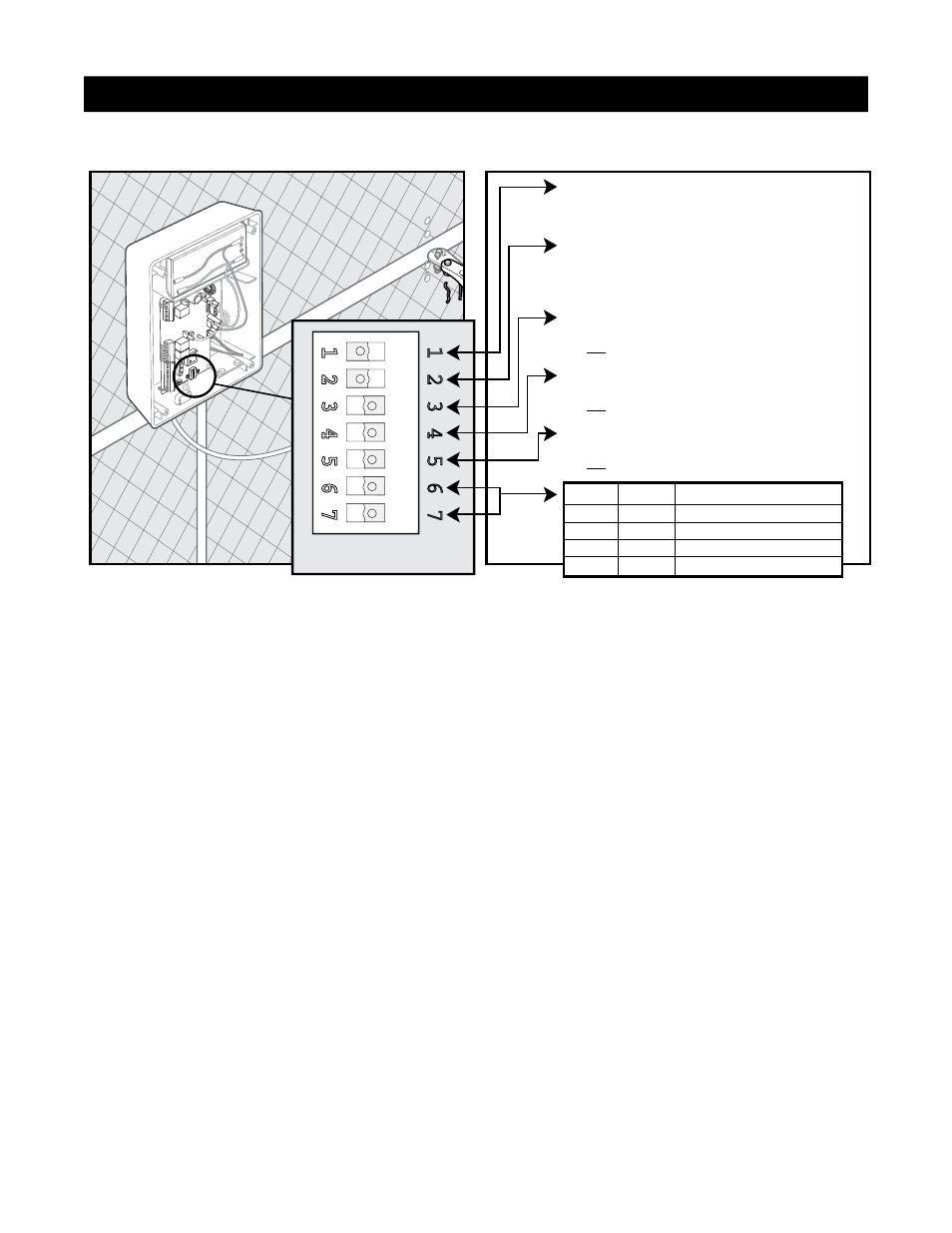

Control Box Settings
DIP#1
ON*___soft start enabled
OFF___soft start disabled
DIP#2
ON*___buzzer warning enabled
OFF___buzzer warning disabled
(for open and close only)
DIP#3
ON * ___auto-close enabled
OFF*__auto-close disabled
DIP#4
ON*___push-to-open operation
OFF*__pull-to-open operation
DIP#5
ON*___D1 mode, constant pressure to operate gate
OFF*__B2 mode, momentary contact to operate gate
*factory
presets shown
*factory
presets shown
ON
1
2
3
4
5
6
7
1
2
3
4
5
6
7
DIP
DIP#6 DIP#7 Delay Time for Auto-Close
ON ON 15 seconds
ON OFF 30 seconds
OFF ON 60 seconds
OFF* OFF* 120 seconds
DIP Switch #1 - Soft Start/Stop
The soft start/stop feature slowly starts the gate as it
begins to open and slows the gate as it comes to the
closed position. This saves wear and tear on the gate
and gate opener system.
DIP Switch #2 - Warning Buzzer
The warning buzzer alerts you when the gate opener
is beginning to either open or close the gate. It sounds
for the first 2 seconds in each direction. It also sounds
a warning when the gate obstructs two times in one
cycle. Switching this to OFF only disables the open
and close warning not the obstruction warning.
DIP Switch #3 - Auto-Close
With the auto-close switch in the OFF position the gate
will remain open until it receives another signal from
an activation device such as a transmitter, keypad, or
push button control. With the auto-close switch in the
ON position the gate opener will automatically close
the gate. The time the gate will remain open is deter-
mined using DIP switches #6 and #7.
DIP Switch #4 - Pull-to-Open
If your gate opens into the property the DIP switch is
set to the OFF position (factory setting).
DIP Switch #4 - Push-to-Open
If your gate opens out from the property the DIP
switch must be set to the ON position. NOTE: You will
need a push-to-open bracket.
DIP Switch #5 - B2/D1 Mode
This DIP switch must remain in the OFF position
unless the gate opener is going to be used by a guard
or gate attendant, who can only open the gate when
constant pressure is applied to a push button control
device.
DIP Switches #6 and #7
The combination of these two switches determines the
amount of time the gate will remain open when DIP
switch #3 is set to the ON position.
DIP Switches
25
IMPORTANT: Before making any changes to dip switches turn control box off!
