13

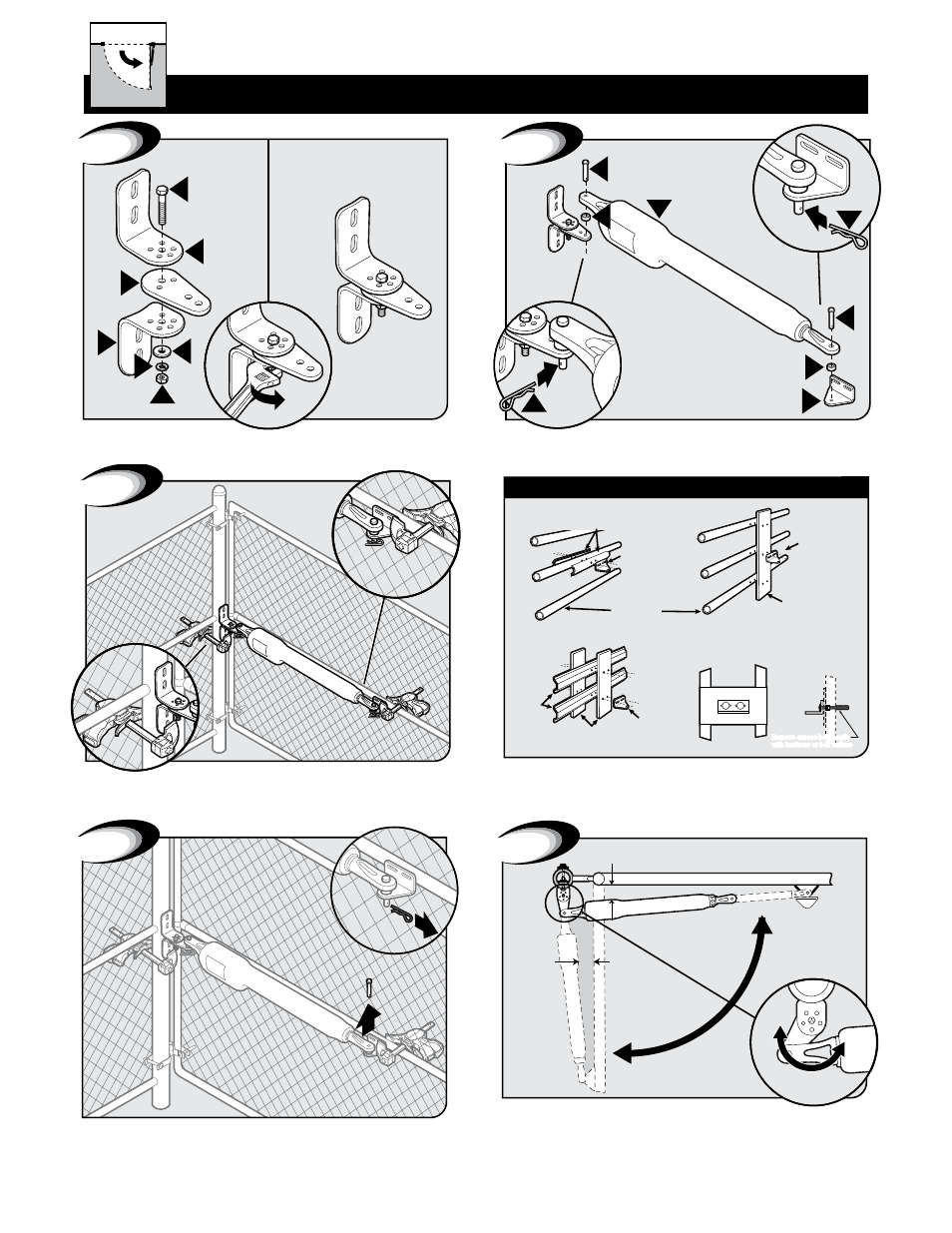

Mounting Pull-to-Open Opener to Gate
Gate Opener Installation
I
S
V
H
I
R
Y
1
X
X
F
M
M Q
B
Q
2
Attach opener to gate bracket and secure with required
hardware. Assemble post bracket parts.
3
With Gate in OPEN position, using clamps, secure opener to
gate post and center cross member of gate. Recommended reinforcement and gate bracket mounting
examples.
Steel Pipe Cut in Half
(not supplied)
Gate
Bracket
Thin Walled
Tube Gate
Gate
Bracket
1” x 6” Wood Reinforcement
Panel
Gate
Gate
Bracket
Wood or Metal
Reinforcement
(not supplied)
Mounting Plate
Created for
Decorative Gate
(required but not
supplied)
Remove excess bolt length
with hacksaw or bolt cutters
FRONT VIEW SIDE VIEW
Reinforcement and Gate Bracket Mounting
2" Min. - Pinch-Point Clearance
Top View
2" Min.
5
Swing gate to CLOSED position-check clearance/binding by inspecting
alignment. TIP: Turning the pivot bracket over gives more hole
alignment options for the post pivot bracket assembly.
Remove clevis pin from the gate bracket and support loose
opener.
4
1
2
Your Property
