Control Box Installation

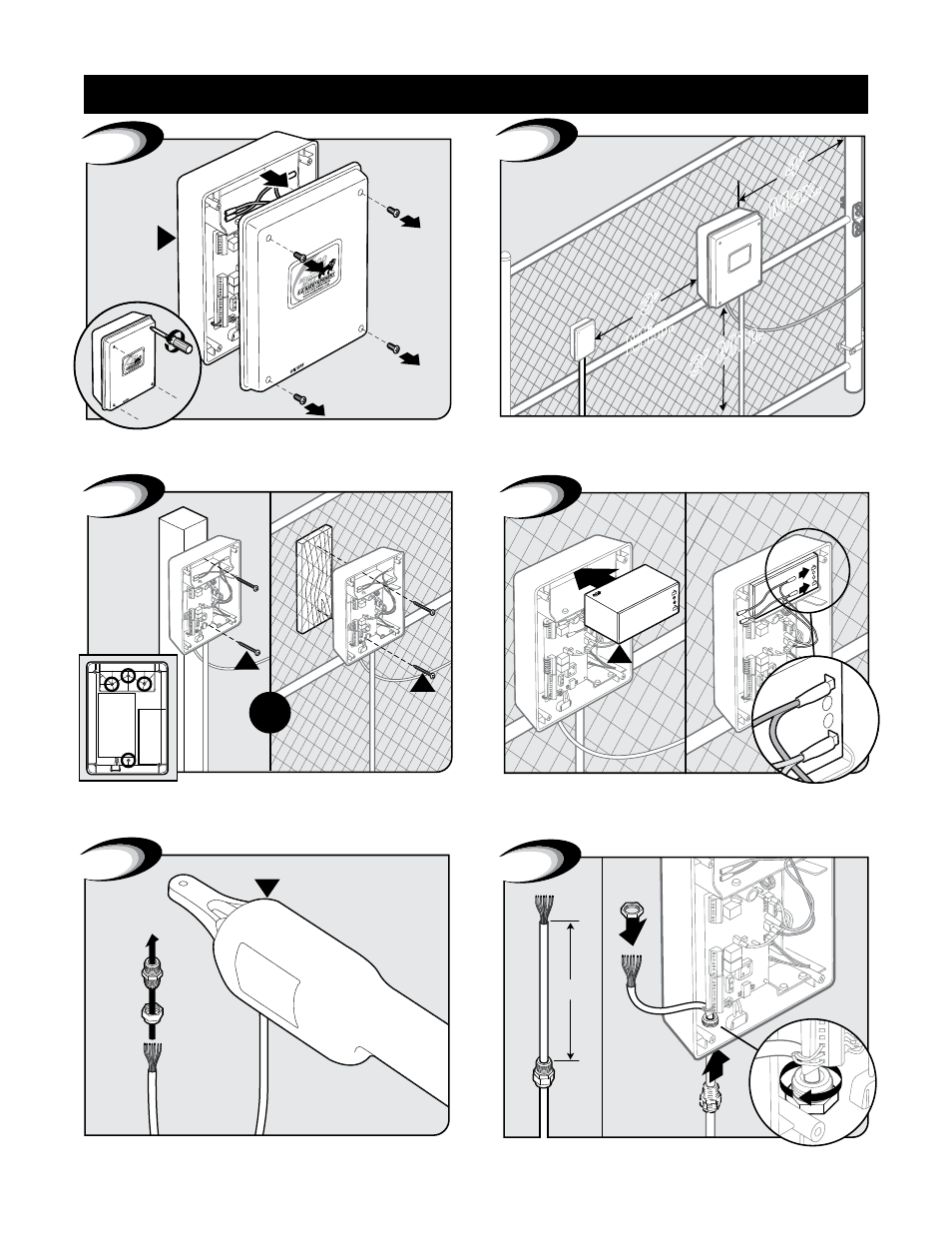

Remove control box cover.
A
1
Locate control box mounting area. IMPORTANT: Be sure to
mount box at least 3ft from AC power and 3ft off the ground.
3’ Min.
3’
Min.
4’
Max.
2
3
W
W
OR
Mount control box to post or fence using screws. Position battery in control box as shown. Connect battery leads
from control board to battery. IMPORTANT: Red wire to (Red
Post) positive and black wire to (Black Post) negative.
RB500
12 Volt / 7.0 A mp M oun t
G
Black
Red
POS
NEG
4
1
2
3
6
6”
B
5
Feed cable 6” into box. Tighten strain relief nut to secure cable. Twist each end of the gate opener power cable’s 7 colored wires.
Feed cable through strain relief nut.
Control Box Installation
