SERVICE

Piston Removal and Repair

1. To disconnect the fluid hose (31) from the cover

plate (41), screw the nut (34) off the adapter (35).

See Fig 21.

2. Note the position of the trigger adjusting nut (24) for

reinstallation, then screw it off the piston shaft.

3. Remove the screws (61) and lock washers (82) from

the cover plate (41). Remove the cover plate (41),

spring (38), and retainer cap (74).

4. Unscrew and remove the air valve guide (26) and

needle packing (27) from the gun body (1),

5. Push on the end of the piston shaft, and remove the

piston assembly.

NOTE: DO NOT remove the uĆcup packing (37) from

the piston shaft except to replace it as removal

will damage this packing.

6. Clean and inspect parts for wear or damage. ReĆ

place parts as needed.

7. When reassembling the piston assembly, lubricate

the oĆrings (30 & 79) and the uĆcup packing (42) on

the piston with petroleum jelly. Pack the spring (38)

with petroleum jelly. Apply Teflon tape to the air valve

guide (26).

8. Install the new packing (27) and guide (26) in the

gun body (1); screw the guide in loosely.

NOTE: DO NOT fully tighten the guide (26) yet. The

guide must be loose to avoid damaging the

packing (27) when pushing the piston shaft

through the guide.

9. If replacing the uĆcup packing (37), slide it onto the

piston (42) so the lips of the packing will face toĆ

wards the front of the gun when the piston is inĆ

stalled. Then install the bunaĆn oĆring (30) and

Vitonr oĆring (79) on the piston.

10. Install the piston assembly into the gun body (1),

being careful not to damage the piston's lip seal.

11. Install the retainer cap (74) into the cover plate (41).

12. Install the cover plate (41), spring (38), and retainer

cap (74) with the screws (61) and lock washers (82).

13. Actuate the trigger and tighten the air valve guide

(26) with a wrench.

14. Screw the trigger adjusting nut (24) onto the piston

shaft to its previously noted position.

15. Connect the fluid hose (31) to the adapter (35).

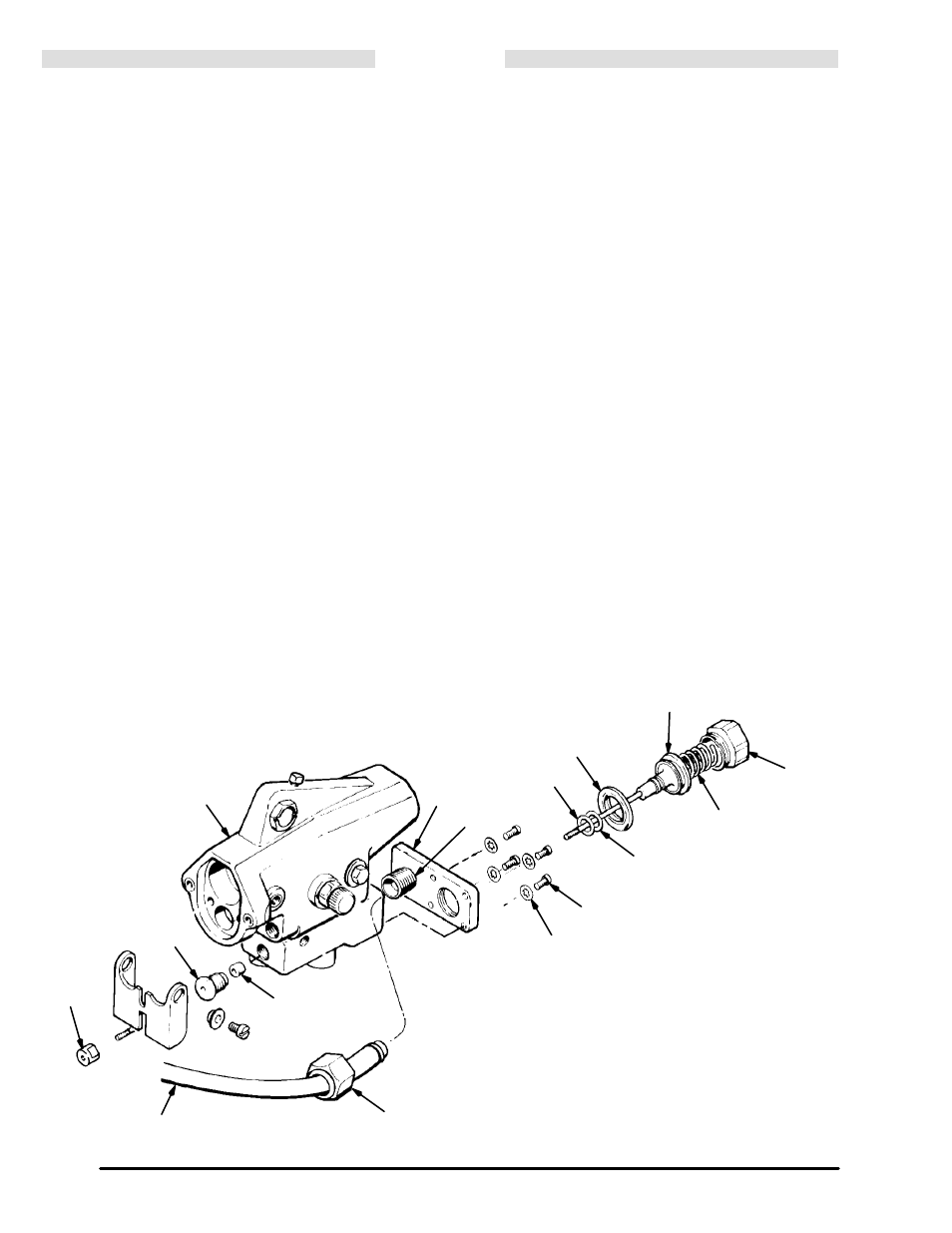

Fig 21

KEY

1

Gun Body

24

Trigger Adjusting Nut

26

Air Valve Guide

27

Needle Packing

30

BunaĆn OĆRing

31

Fluid Tube

34

Nut

35

Adapter

37

UĆCup Packing

38

Spring

41

Cover Plate

42

Piston

61

Screws

74

Retainer Cap

79

Viton OĆRing

82

Lock Washers

26

Apply

Teflon

tape

24

31

34

27

41

35

82

61

30

79

37

38

74

Pack with

lubricant

42

1
