MAINTENANCE

To Clean or Change Air Cap and Fluid Nozzle

CAUTION

Do not use metal tools to clean the air cap holes as
this may scratch them, and make sure the elec-
trode wire is not damaged. Scratches in the air cap
holes or a damaged electrode wire can distort the
spray pattern.

Equipment needed:

Soft bristle brush (supplied).
Fluid nozzle wrench (supplied).
Solvent compatible with fluid being sprayed.

Procedure:
1.

Follow the Pressure Relief Procedure Warning on
page 9.

2.

Remove the air cap assembly (BB). See Fig 6.

3.

Turn the locking pin (81) to the unlocked position.

4.

Squeeze the gun trigger and remove the fluid nozzle
(15) with the fluid nozzle wrench (66g) supplied.
Make sure the front of the gun is pointed down. See
Fig 6.

5.

Use the soft bristle brush (66a) supplied and solvent
to clean the air cap, fluid nozzle, and front part of the
gun.

6.

Squeeze the gun trigger and screw the fluid nozzle
back into the gun. Tighten the nozzle securely with
the wrench (66g) supplied. Torque the fluid nozzle to
1.1–1.4 N

S

m (10–12 in–lb). See Fig 6. Turn the lock-

ing pin to the locked position.

7.

Carefully reinstall the air cap assembly. Avoid bend-
ing the electrode (CC).

8.

Tighten the retaining nut so it is snug. If the nut is tight
enough, you will feel resistance when turning the air
cap. If too tight, the spray pattern will be distorted.

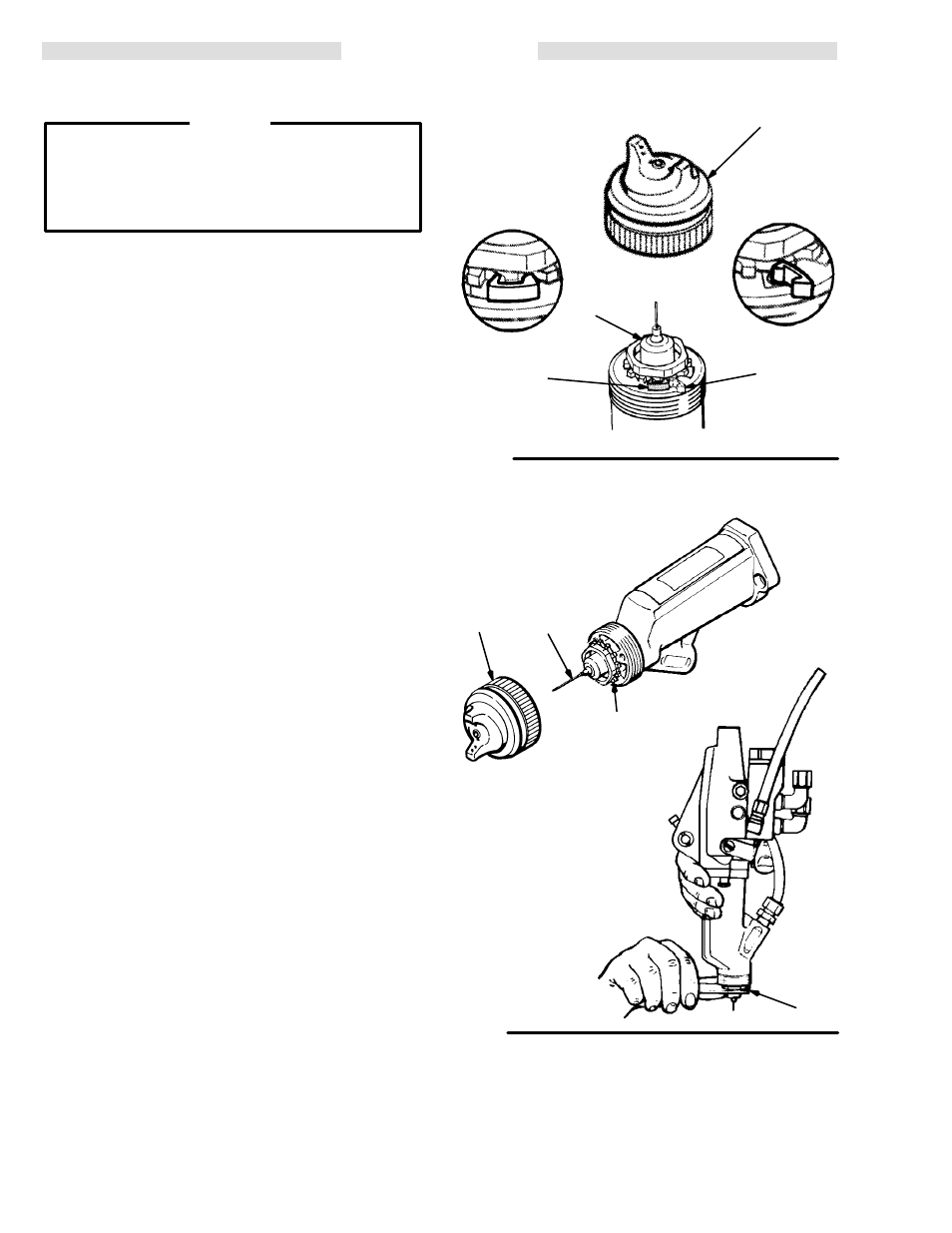

Fig 5

KEY

15

Fluid Nozzle

BB

Air Cap Assembly

81

Locking Pin

BB

15

Locked

Position

Unlocked

Position

DETAIL

DETAIL

81

81

Fig 6

KEY

CC

Electrode

15

Fluid Nozzle

16

Air Cap Assembly

66g

Wrench

CC

15

16

Torque to

1.1–1.4 N

S

m

(10–12 in–lb)

66g
