4.5 Up-Link (Cross-over) Switch
The FT14 and FT14H Media Converter is equipped with an Up-Link slide switch. When
set to the UP position (X), the Media Converter is
wired with cross-over functionality for direct up-
link to a network hub, switch or concentrator.
When set to the DOWN position (=), the Magnum
Media Converter is wired for normal twisted-pair
connection to a user node device. Some Ethernet
Switch ports may be of either polarity, and this
feature is most convenient with such switches.

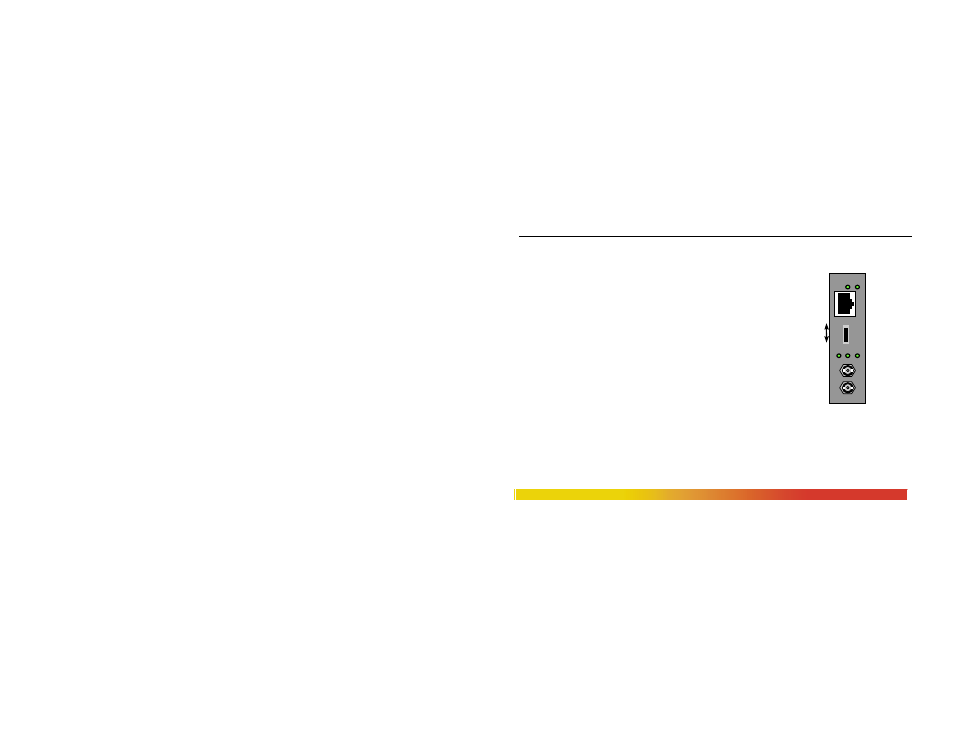

End view, FT14, FT14H
up-link
user device (=)
RJ45
Fiber
