(The MC mounting spaces of
the MC14 -TR models are
specific to the Magnum
10Mbps (FT14 and TB14) and
100Mb (14E) series, and do
not permit other models to be
put in the tray). The side-view

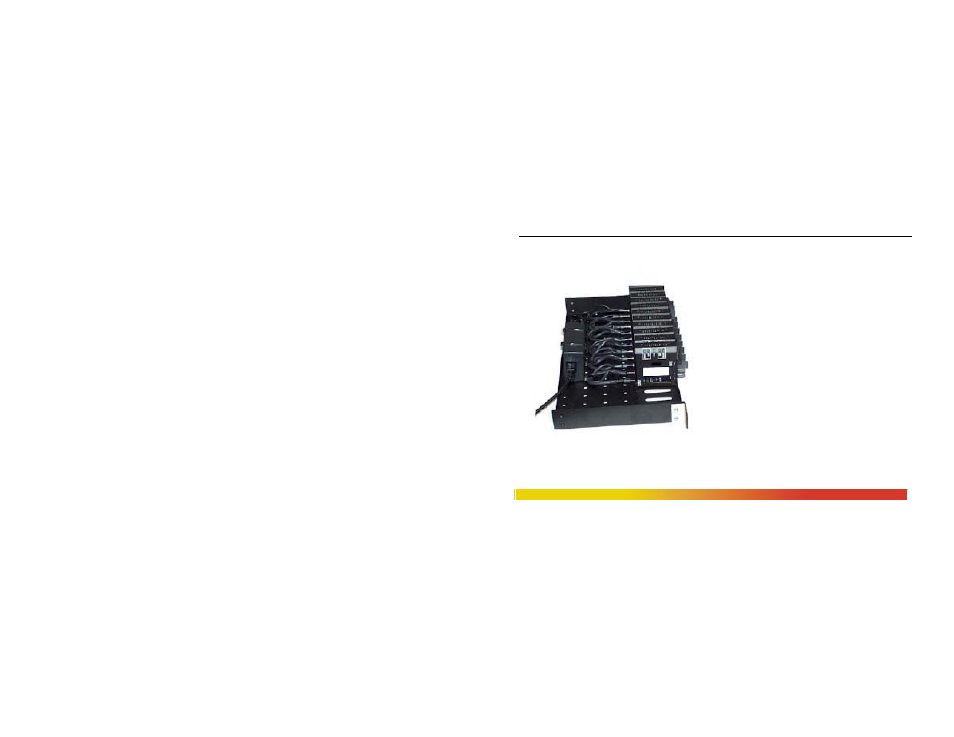

picture shown here (above) is
an example of an installation
of the model MC14-TR+PS9,
19” rack-mount tray, holding a
few 10Mbps FT14’s and
100Mb 14E Media Converters,
each with their power input
plugged into the built-in common AC power supply in the rear area of the tray. (PS units
that come with the MC’s are not used).
Metal mounting screws in the bottom-front hold each of the media
