550m at full duplex.
The GBIC transceiver is fastened using snap-in clips. Insert the transceiver
(take care to insert it the right way up, arrows on top) until it clicks in space. While
removing the transceiver, press the clips on either side of the transceiver at the same time
and pull the transceiver out.
Each port has an Activity (ACT) LED indicating packets being received and a
Link (LK) LED indicating proper connectivity with the remote device when lit.
5.2.13a GBIC-LXSC & ZXSC Gigabit fiber (1000Mb), single-mode SC
Connector
The Magnum GBIC-LXSC/ZXSC is a single-mode Gigabit fiber connector
equipped with SC type connectors and can be easily snapped in and out. The Gigabit
fiber ports are most popular as server-to-switch and switch-to-switch applications. It
supports cable distances up to the IEEE 802.3z standard 1000Mbps distance limits, i.e.,
10,25, 40 or 70Km at full duplex, and depend upon the Gigabit modules used.
Each port has an Activity (ACT) LED indicating packets being received and a link (LK)
LED indicating proper connectivity with the remote device when lit.
5.2.14 6KM-BLNK

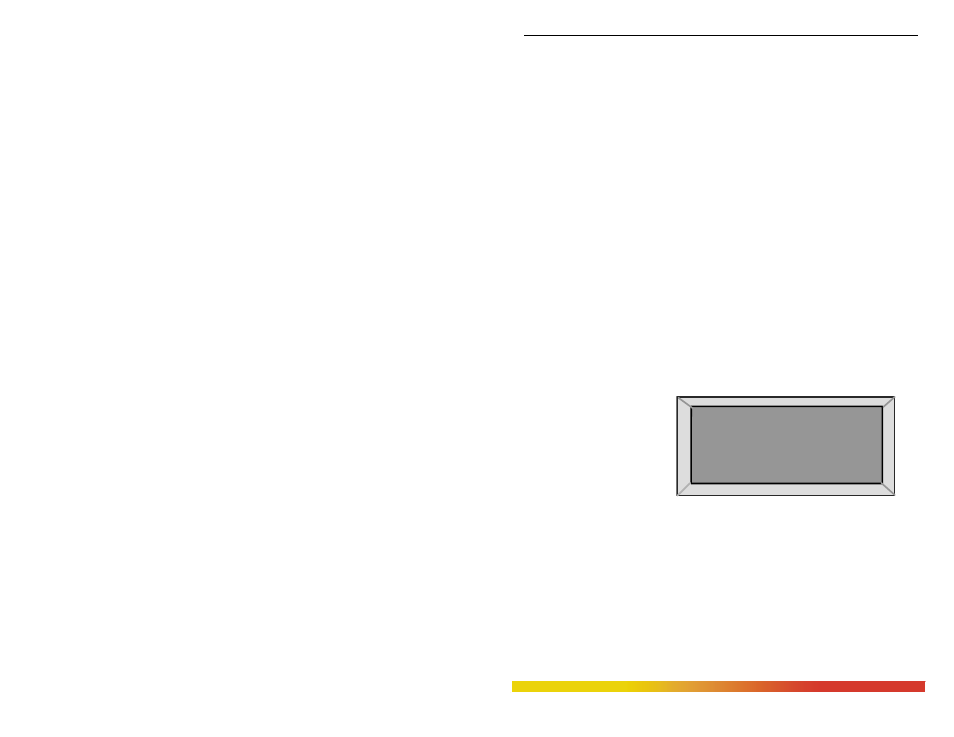

The 6KM-BLNK is a blank face plate or cover plate that must be installed in
any empty 6K25 PM slot to
maintain proper cooling air
flow, safety, etc.
Two screws
underneath the front panel hold
the 6KM-BLNK in place.
6.0 TROUBLESHOOTING
All Magnum Ethernet products are designed to provide reliability and
consistently high performance in all network environments. The installation of a
Magnum 6K25 Switch is a straightforward procedure (see INSTALLATION, Section
2.6); the operation is also straightforward and is discussed in Section 4.
Should problems develop during installation or operation, this section is
intended to help locate, identify and correct these types of problems. Please follow the
suggestions listed below prior to contacting your supplier. However, if you are unsure of
