Magnum 6K25 Managed Fiber Switch Installation and User Guide (04/06)
14
www GarrettCom com
.
.
TX RX
L
ACT
F/
TX
LK RX
ACT
F/
TX RX
LK
ACT
F/

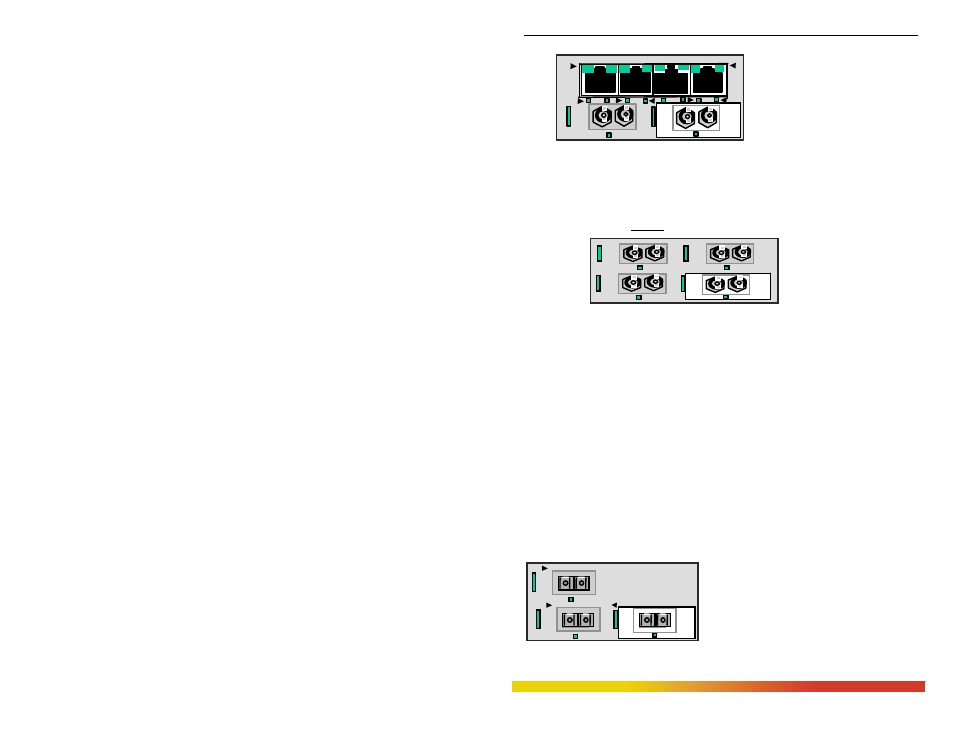

The Magnum Combo
six-port modules are also available
with 4@ MTRJ 100Mb mm SFF
fiber and 2@10Mb fiber mm ST
ports, and with 4@ RJ45 10/100
copper and 2@10Mb fiber mm ST
ports. The 4@ RJ-45 + 2@ 10 Mb ST
operation of the SFF fiber
and the RJ-45 half of the module is as described for those port types above. For detailed
information about 10Mb mm ST fiber half of the module, please check section 2.2.5.
2.2.7
Four-Port 10 Mb mm Fiber ST Modules
The 4port @10Mb ST fiber modules behave the same as the 8@100Mb ST
fiber modules except for the 10Mb speed. For ports numbering, ports 1, 2, 5, 6 are
present, ports 3, 4. 7, 8 are not present. The default setup on the 10Mb fiber module is
half-duplex, which allows the Magnum 6K25 Switch to connect to any 10Mb hub or
media converter or almost any other device with a 10Mb fiber Ethernet port. User mode
control per port through the MNS software is the same as the other 6K25 modules. The
fiber ports support fiber cabling distances according to the 10BASE-FL standard, i.e.,
2km distance for multi-mode fiber. (Single-mode for up to 10Km distance may be
available as a special order configuration).
2.2.8
Gigabit (1000Mbps) port modules
The Magnum 6K25 offered a wide option Gigabit speed with multiple choice
for the modular slot. While up to two Gigabit modules (maxm.) can be configured in the
modular slot. The Gigabit port option for the modular slot comes in couple of different
configuration. The Giga port has been offered
as single Gigabit module comes in flavor of
G+4(10/100 RJ-45 ports) or G+2 (100Mb fiber
ports) as shown below .
1@ 1000Mb Fiber SC + 2@ 100Mb SC
1 3 5 7
2 6
TX RX
TX LK RX
LK
ACT
F/H
ACT
F/H
10/100
LK
F/H
ACT
2 6
T
LK
R
ACT
F/H
TX RX
LK
ACT
F/H
TX RX
LK
ACT
F/H
TX RX
LK
ACT
F/H
1 5
