NOTE: All 6KPM slots need not be filled in order for the Magnum 6k25 unit to be

operational. When leaving 6KPM slots empty, always use a face plate (Magnum 6K8-

BLNK) to cover the slot opening in the front panel. This will maintain proper cooling

air flow, safety, and operation as required by FCC, CE, and other regulations.

Step 6. Now screw down the

daughter board with 6

#440 screws, so that it

holds the daughter board

securely. The figure

below shows the top view

of 6KPM card after

successfully installing the

6KPM cards inside the

Magnum 6K25.

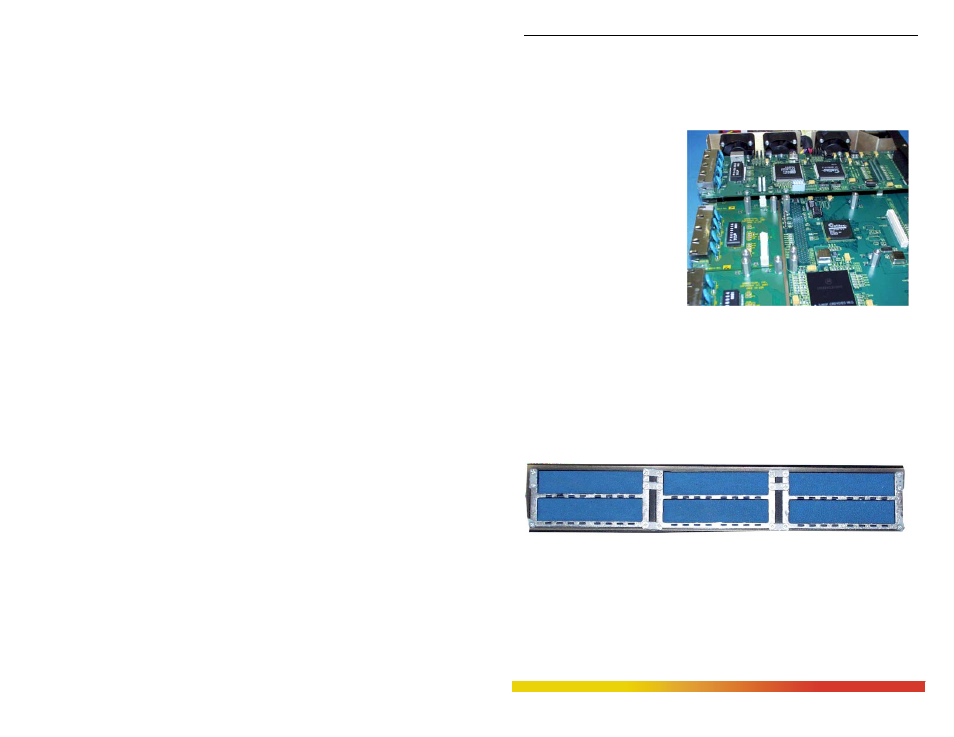

Fig. 3.5.2g Top View : 6KPM Module installed inside a 6K25

Step 7. Once the installation of granddaughter and daughter modules is done, the front

panel screen plates need to be placed on the front of the chassis cover to

complete the installation process for that port module. The front panel screen

plate comes along with the package of port module separately along with

brackets and 6 #256 flat head screws. The brackets and screws have been

installed inside of the top cover as shown in Fig. 3.5.2h.

Fig. 3.5.2h Inside view of chassis cover (from the rear), showing the front panel

screen plates installed inside the chassis cover using brackets and screws

Step 8. Once all 6KPM cards have been installed (including faceplates for empty

slots), the chassis cover should be replaced. Make sure the chassis cover is

aligned properly before securing the enclosure.
