Caution: Be careful not to disturb the power supply.
Looking down into the Magnum 6K25 unit, notice that there are individual PM
installation spaces and female latch(white) connectors provided on the main board along
with four stand-off’s for each 6KPM card position. (See Figure 3.5.1b).

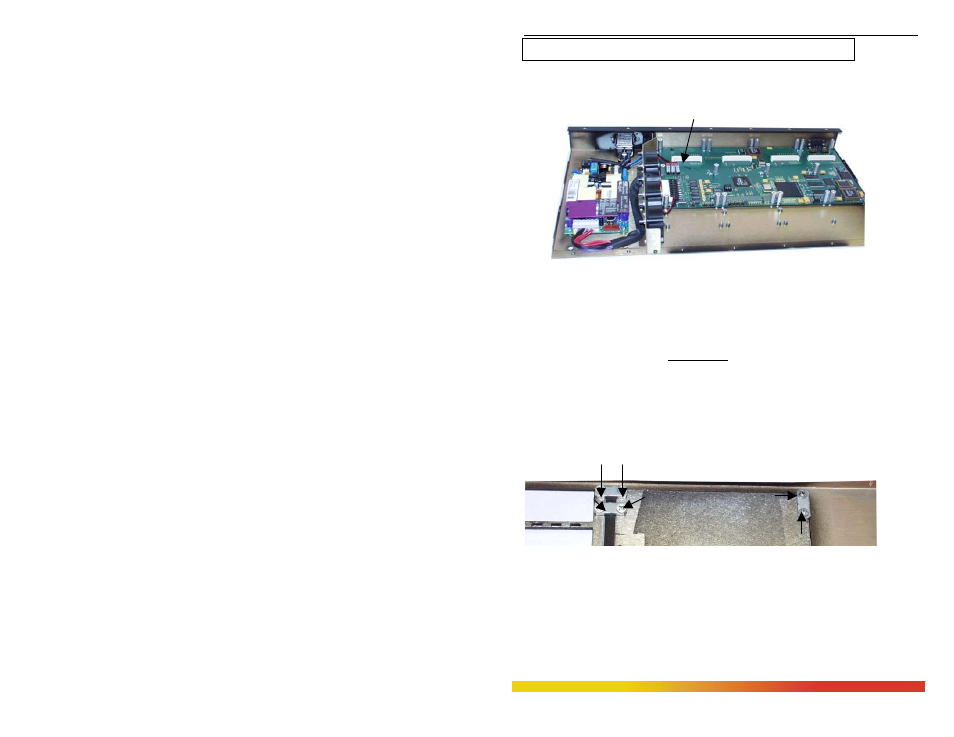

Figure 3.5.1b: Magnum 6k25, Top view without chassis cover
Step 3. Remove front panel face plate retaining screws
There are four PM slots (A, B, C and D) located on the front of the chassis cover.
Looking into the vertical placed Chassis cover of the unit, there are three brackets with
retaining screws (#256 flat head ) which hold each PM Face plate card slot securely.
These six screws shown in the picture below are used to secure a PM face plate in
position, but unscrew only four of the screws as shown in Fig. below. These screws are
also used to secure the individual 6KPM cards screen plate which can be subjected to
significant forces from the attached cables. (See Figure 3.5.1c)
Figure 3.5.1c: Top View – 6KPM retaining screws hold Face Plate
3.5.2 Installing 6KPM Cards in the Magnum 6K25
Up to four front-mounted 6KPM cards may be installed in one Magnum 6K25
Managed Fiber Switch unit. Follow these steps to install a 6KPM.
Step 1. Remove top chassis cover. See procedure in Section 3.5.1 above.
