Magnum 6K25 Managed Fiber Switch Installation and User Guide (04/06)
45
www GarrettCom com
.
.
Each port has an Activity (ACT) LED indicating packets being received, a
Link (LK) LED indicating proper connectivity with the remote device when lit, and a
FDX/HDX LED indicating full-duplex mode when lit (or half-duplex when off). The
10/100 LED indicates the speed for the copper port, which is 100Mbps when the LED is
ON and 10 Mb when the LED is OFF.
5.2.4a
6KP6-RJ10ST 4 @ 10/100 Mb copper port and 2@10Mbps multi-mode
FL-ST-type, “twist-lock” connector
The Magnum 6KP6-RJ10ST is also a Combo module equipped with 4 dual speed copper
ports and 2 multi-mode 10 Mb fiber ST-type connectors. It provides a combination of
copper and Fiber functions in one module to the 6K25 Switches, supporting four Copper
and two 10Mb of ST fiber network segments.
The 6KP6-RJ10ST, when installed in a Magnum 6K25 Switch has copper
supporting the 100m distance and Fiber supporting multi-mode fiber cable allow to
connect the legacy network of 10Mb requirement in the network. Each port has an
Activity (ACT) LED indicating packets being received, a Link (LK) LED indicating
proper connectivity with the remote device when lit, and a FDX/HDX LED indicating
full-duplex mode when lit (or half-duplex when off). The 10/100 LED indicates the
speed for the copper port, which is 10Mbps when the LED is ON and 10 Mb when the
LED is OFF.

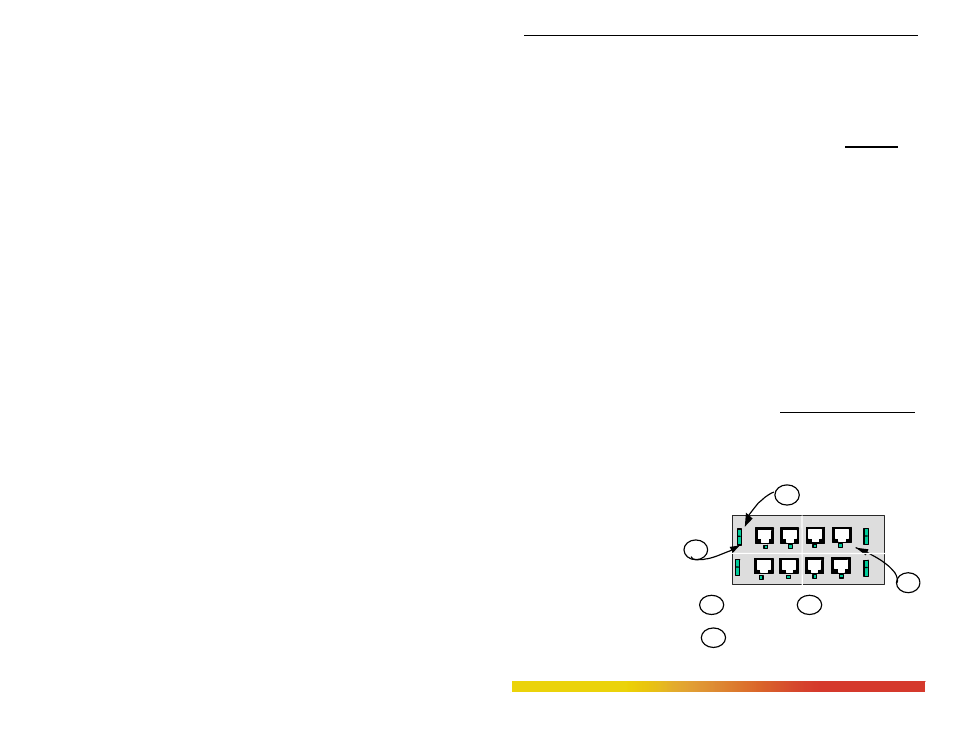

5.2.5 6KP8-MTRJ, 8 @100Mb multi-mode FX , MTRJ Small-Form-factor
Magnum 6KP8-MTRJ is a multi-mode fiber optic 8-port module equipped with
a small-form-factor MTRJ-type
connector. It looks almost like
an RJ-45 port, but it is black in
color. The MT-RJ’s small size
and ease of connection make it
a good choice for 100Mbps
“fiber-to-the-desktop” Ethernet
connectivity. When installed in
a Magnum 6K25 Switch, it
supports fiber optic cable
distances up the IEEE-standard
100Mbps distance limits, i.e.,
“small-form-factor”
FULL/HALF
1
ACTIVITY
LINK
2
2
3
3
1 3 5 7
2 4 6 8
LK LK LK LK
ACT
F/H
ACT
F/H
ACT
F/H
1
ACT
F/H
LK LK LK LK
ACT
F/H
ACT
F/H
ACT
F/H
ACT
F/H
6KP8-MTRJ,
8 Port@ 100Mbps Multi-Mode Fiber port
