Magnum 6K25 Managed Fiber Switch Installation and User Guide (04/06)
33
www GarrettCom com . .
NOTE(Gigabit Module only): The Gigabit port module installation on slot A, B and C
COTX require four bracket extender for each(slot A, B, or C COTX).
Attach the bracket
from the PCA to the center standoff on the main mother board. The bracket provide
the stability to the Gigabit module.
NOTE (
Reverse mount Model): The Reverse model require a LED Decal, (for
checking the speed, F/H, and activity status)
3.5.3 Removing 6KPM Cards
To properly remove a 6KPM card from the 6K25 Managed Fiber Switch,
follow the 3 steps below.
Step 1. Remove chassis cover See procedures in Section 3.5.1 above.
Caution: Be sure the power cord is unplugged.
Step 2. Remove retaining screws placed on top for the 6KPM and Face Plate
On the top of the daughter module there are six
retaining screws for each 6KPM card. These
screws are used to secure a 6KPM card in
position (see Figure 3.5.3a). Remove the three
standoffs holding the Granddaughter board with
the chassis. The screen faceplate screws out from
the inside front of the chassis cover by loosening
the 4 screws and bracket while holding it down

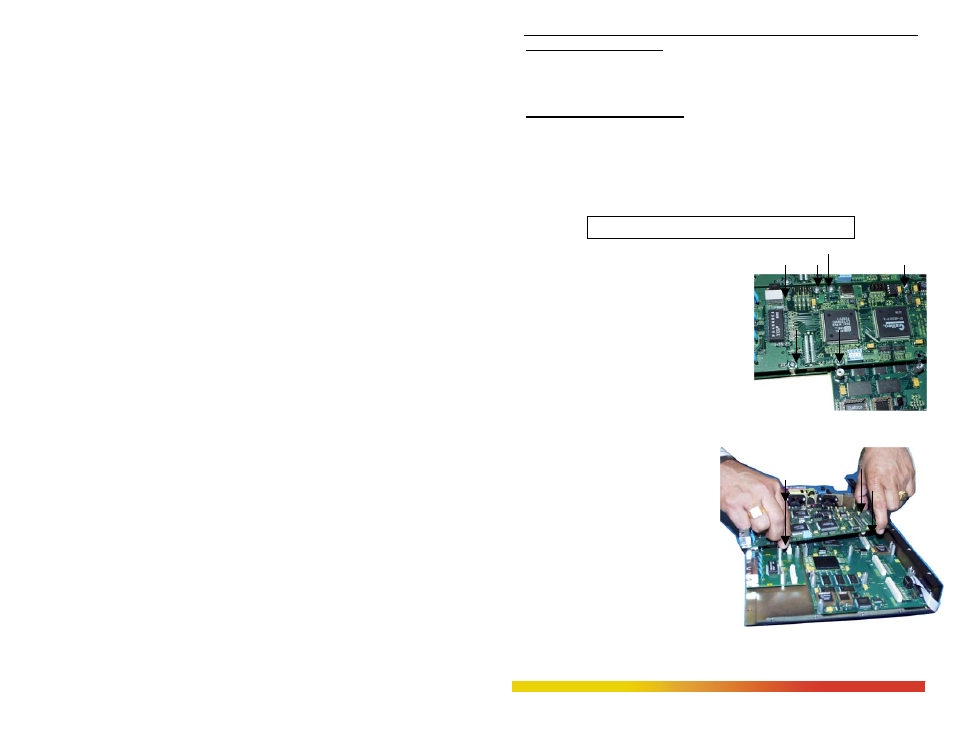

firmly. Figure 3.5.3a: Top View - 6 retaining s crews shown by arrows
Step 3. Remove 6KPM Card
Carefully and gently pull
out the daughter board from the latching
connectors, using both hands, gripping
the board near the latch-up connectors as
shown in Fig. 3.5.3b . If the now empty
slot is to remain unused, be sure to install
a 6KPM-BLNK face plate cover.
Figure 3.5.3b: Removing a 6KPM
Card
If another 6KPM card is replacing the one
that has been removed, follow the steps as described for installing a 6KPM card
discussed in Section 3.5.1.
