2 - Connections

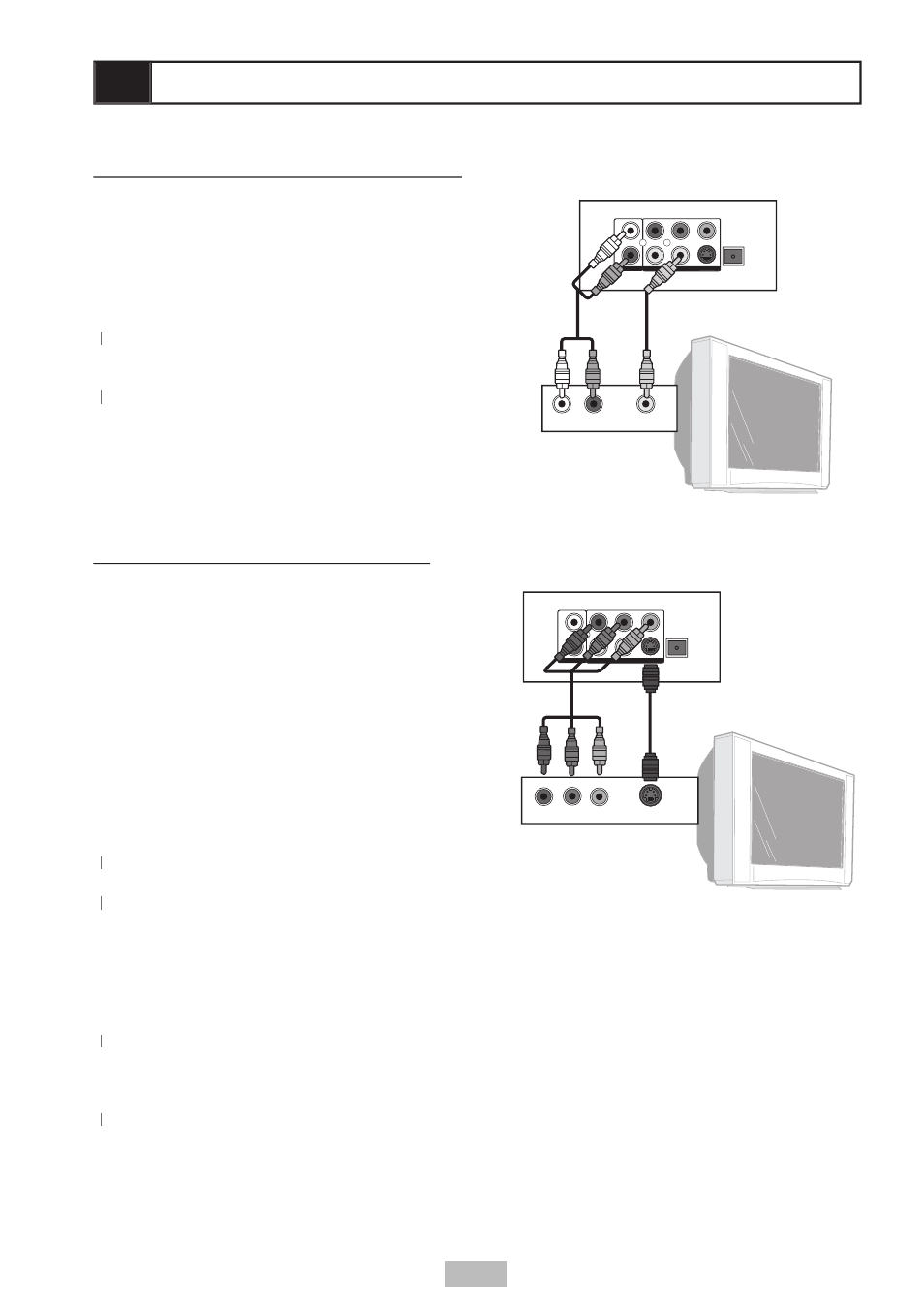

Basic TV Connections
You can connect the DVD player to a standard
television using the player’s Audio and Video
jacks.
1
Connect the supplied audio cable (red and
white) from the Audio jacks on the rear
of the player to the Audio Inputs on your
television.
2
Connect the supplied video cable (yellow)
22
from the Video jack on the rear of the player
to the Video Input on your television.
3
Set your TV to its appropriate Video input to
33
view the player.
Enhanced Video Connections
For improved picture quality, you
can connect the DVD player to a TV
equipped with S-Video, Component
Video, or Progressive Scan inputs. These
connections require special S-Video or
Component Video cables (not included).
For audio, choose one of the Enhanced
Audio Connections shown on page 10.
S-Video Connections
1
Connect an S-Video cable (not
included) from the S-Video jack on the
rear of the player to the S-Video input
on your television.
2
Set the Video Output to S-Video in the
22
player’s System Setup menu.
3
Set your TV to its S-Video input to view
33
the player.
L
R
OPTICAL
AUDIO
S-VIDEO
VIDEO
COAXIAL
L
R
OPTICAL
AUDIO
S-VIDEO
VIDEO
COAXIAL
OR
AUDIO IN
VIDEO IN
L
R
OPTICAL
AUDIO
S-VIDEO
VIDEO
COAXIAL
DVD Player
DVD Player
TV
COAXIAL IN
OPTICAL IN
Digital Decoding Receiver
Y
Pb
Pr
S-VIDEO IN
DVD Player
TV
OR
Yellow
S-Video
Optical
Coaxial
Component
Video
White Red
Stereo Receiver
L
R
OPTICAL
AUDIO
S-VIDEO
VIDEO
COAXIAL
AUDIO IN
DVD Player
White Red
Y
Pb
Pr
Y
Pb
Pr
Y
Pb
Pr
Y
Pb
Pr
L
R
OPTICAL
AUDIO
S-VIDEO
VIDEO
COAXIAL
L
R
OPTICAL
AUDIO
S-VIDEO
VIDEO
COAXIAL
OR
AUDIO IN
VIDEO IN
L
R
OPTICAL
AUDIO
S-VIDEO
VIDEO
COAXIAL
DVD Player
DVD Player
TV
COAXIAL IN
OPTICAL IN
Digital Decoding Receiver
Y
Pb
Pr
S-VIDEO IN
DVD Player
TV
OR
Yellow
S-Video
Optical
Coaxial
Component
Video
White Red
Stereo Receiver
L
R
OPTICAL
AUDIO
S-VIDEO
VIDEO
COAXIAL
AUDIO IN
DVD Player
White Red
Y
Pb
Pr
Y
Pb
Pr
Y
Pb
Pr
Y
Pb
Pr
Progressive Scan/Component Video Connections
1
Connect a Component Video cable (not included) from the Component jacks (Y, Pb, Pr) on the
rear of the player to the Progressive Scan or Component Video inputs on your television.
2
Set the Video Output to Progressive Scan (P-SCAN) or Component Video (INTERLACE) in the
22
player’s System Setup menu.
• Note: You can also press the
PROG.SCAN button as a shortcut to switch between
Progressive Scan, Interlace Scan and S-Video modes.
3
Set your TV to its Progressive Scan or Component Video input to view the player.
