2 - Connections (cont.)
Enhanced Audio Connections
For enhanced audio quality, you can connect
the DVD player to a stereo system or digital
amplifi er/receiver.

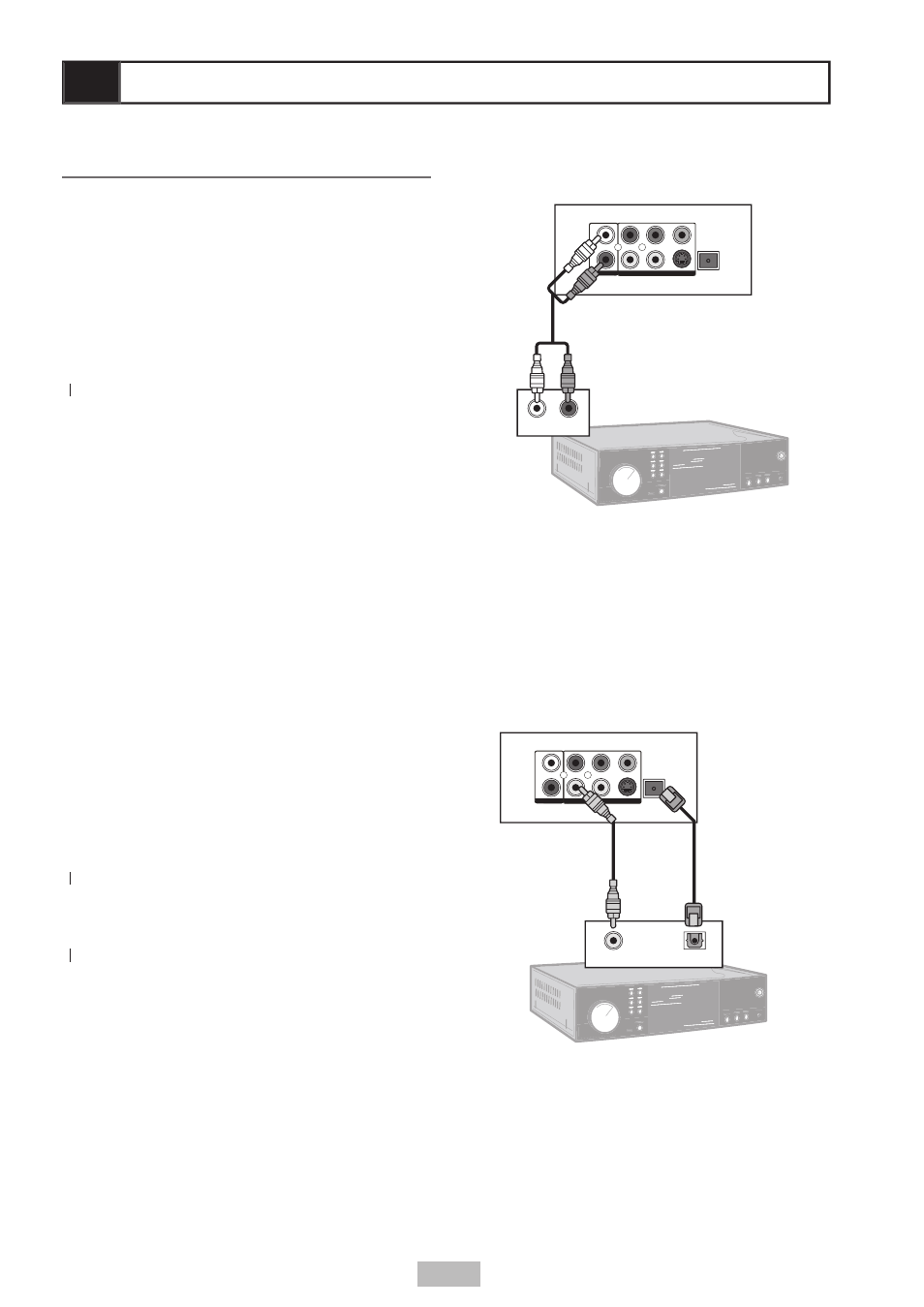

Stereo/Receiver Connections
1 Connect the supplied audio cable (red and
white) from the Audio L/R jacks on the rear
of the player to the left and right Audio
Inputs on your stereo or 2-channel analog
receiver.
2 Set your stereo/receiver to its appropriate 22
input to hear the player.
L
R
OPTICAL AUDIO S-VIDEO VIDEO COAXIAL
L
R
OPTICAL AUDIO S-VIDEO VIDEO COAXIAL
OR
AUDIO IN VIDEO IN
L
R
OPTICAL AUDIO S-VIDEO VIDEO COAXIAL
DVD Player
DVD Player
TV
COAXIAL IN OPTICAL IN
Digital Decoding Receiver
Y Pb Pr S-VIDEO IN
DVD Player
TV
OR Yellow S-Video
Optical Coaxial
Component
Video
White Red
Stereo Receiver
L
R
OPTICAL AUDIO S-VIDEO VIDEO COAXIAL
AUDIO IN
DVD Player
White Red
Y Pb Pr
Y Pb Pr
Y Pb Pr Y Pb Pr
L
R
OPTICAL AUDIO S-VIDEO VIDEO COAXIAL
L
R
OPTICAL AUDIO S-VIDEO VIDEO COAXIAL
OR
AUDIO IN VIDEO IN
L
R
OPTICAL AUDIO S-VIDEO VIDEO COAXIAL
DVD Player
DVD Player
TV
COAXIAL IN OPTICAL IN
Digital Decoding Receiver
Y Pb Pr S-VIDEO IN
DVD Player
TV
OR Yellow S-Video
Optical Coaxial
Component
Video
White Red
Stereo Receiver
L
R
OPTICAL AUDIO S-VIDEO VIDEO COAXIAL
AUDIO IN
DVD Player
White Red
Y Pb Pr
Y Pb Pr
Y Pb Pr Y Pb Pr
Digital Receiver Connections
1 Connect a digital optical cable (not included)
from the Optical jack on the rear of the
player to the optical digital audio input on
your digital receiver.
OR
Connect a digital coaxial cable (not
included) from the Coaxial jack on the rear
of the player to the coaxial digital audio
input on your digital receiver.
2 Set the Audio Out to SPDIF/RAW (Digital) or 22
SPDIF/PCM (Stereo) in the player’s Audio
Setup menu, depending on the capabilities
of your receiver.
3 Set your receiver to its appropriate input to 33
hear the player.
