-18-
Model g1095/g1096 1-hp power Feeder
Direct Mounting
use the included mounting template to drill and
tap your table, so the power feeder base can be
directly mounted to the table surface (
Figure 11). if
the table is thinner than 3 ⁄
8
" thick where the thread-
ed holes would be drilled and tapped, or if support
webbing is in the way, the threads may strip or
loosen as the power feeder is used. thread lock-
ing compound will not cure this situation. revert to
the
through-bolt Mounting option. in any case,
make sure to use a medium-grade liquid thread
locking compound on all threads.

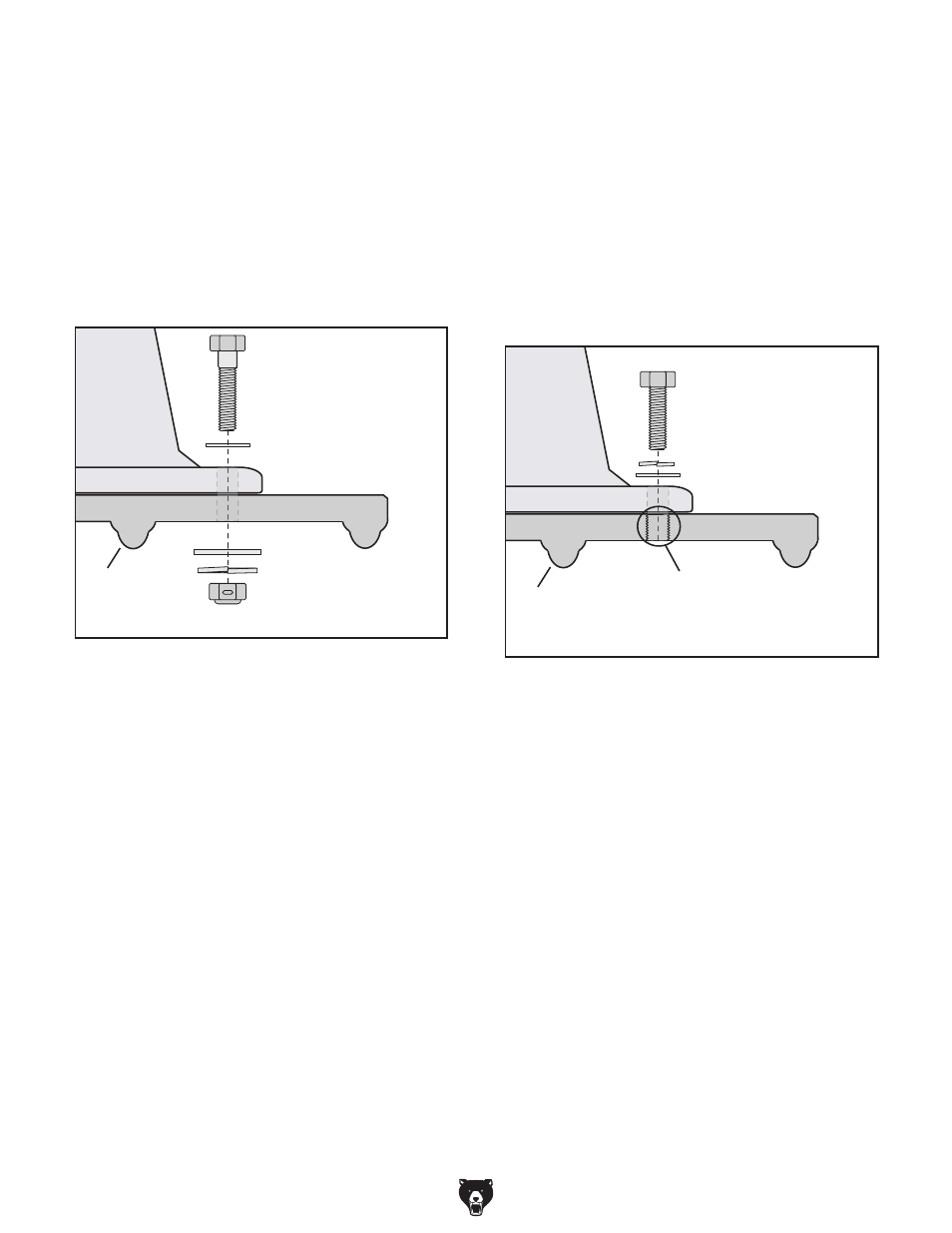

Figure 10. through-bolt mounting.
Machine Table
;aViLVh]Zg
;aViLVh]Zg
AdX`LVh]Zg
AdX`^c\=ZmCji
IVWaZ
Hjeedgi
LZWW^c\
7dai
Feeder
Base
Figure 11. direct mounting.
MachineTable
IVWaZ
Hjeedgi
LZWW^c\
7dai
Feeder
Base
AdX`LVh]Zg
;aViLVh]Zg
6eeanVBZY^jb
AdX`^c\8dbedjcY
idi]ZI]gZVYh
through-bolt Mounting
We recommend that you mount your new power
feeder to the machine table with through bolts,
nuts, and washers (
Figure 10). this option will
give the most rigidity and clamping strength to
prevent the feeder base from twisting out of align-
ment during use. however, if under-table support
webs interfere with washer or nut locations under
the table, you must use an optional clamping kit,
or drill and thread holes directly into the table as
described in Direct Mounting.
