Model g1095/g1096 1-hp power Feeder
-17-
position the power feeder on the table top to
determine where to drill your base mounting
holes, so you can maximize power feeder swing
and adjustment options.
there are two mounting options available: Through
Bolt Mounting and Direct Mounting (discussed
on
Page 18). Choose an option that suits your
requirements.
Whichever way you mount your power feeder,
you must be able to use the handwheels and lock
levers to position the rubber wheels parallel with
the table surface and
1 ⁄
8
" lower than the thickness
of your workpiece.
Also, you must be able to point the power feeder
slightly towards the machine fence (
Figure 9). in
other words, the tracking of the power feeder must
be toed-in approximately 1° to 1.5° degrees toward
the machine fence, so the rubber wheels slightly
push the workpiece against the fence during cut-
ting operations.
;ZZY
;ZZY
Tablesaw Shaper
8jiiZg
;ZZY
Jointer
8jiiZg]ZVY
7aVYZ
;ZcXZ ;ZcXZ
;ZcXZ
)i]"GdaaZg
BdYZah

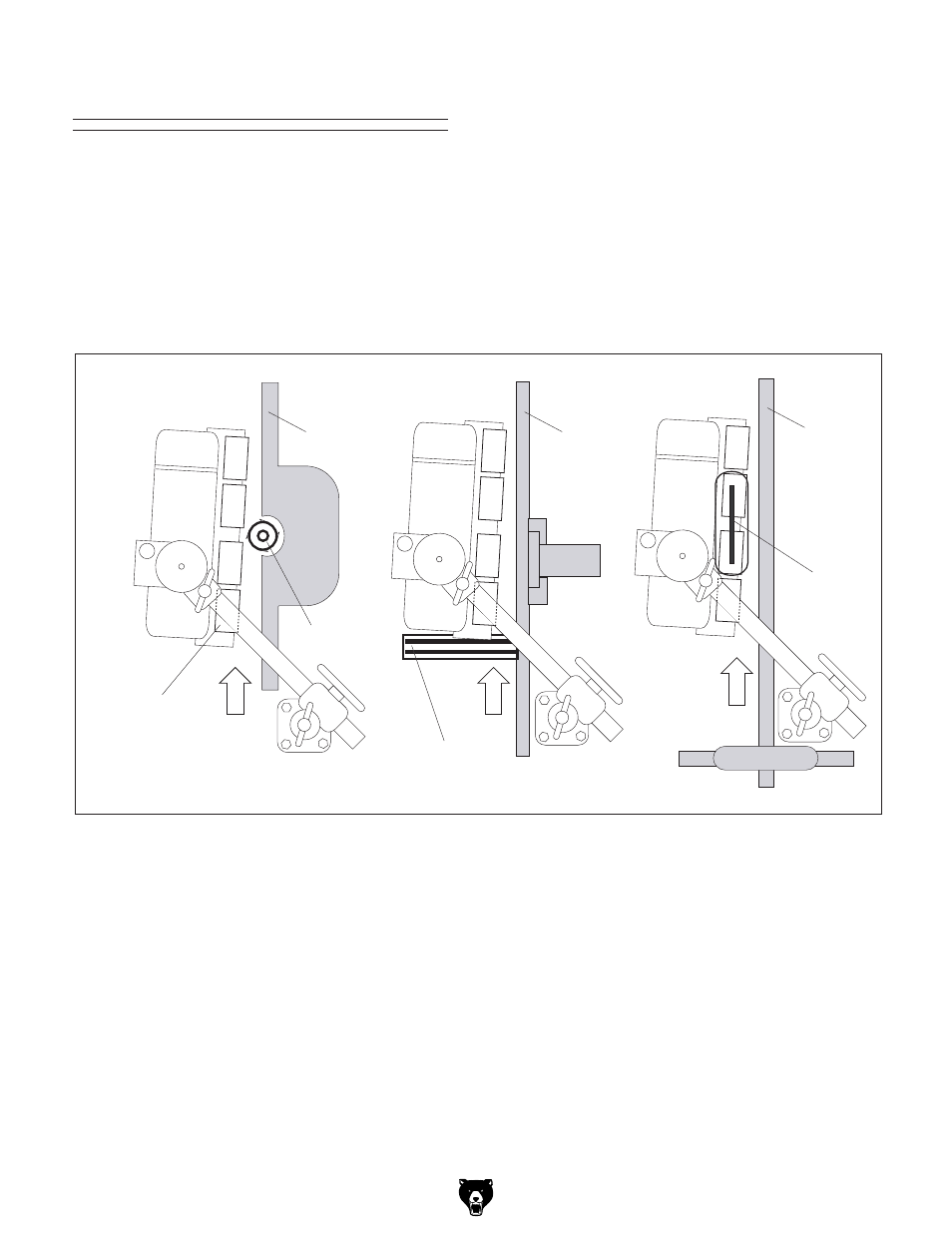

Figure 9. typical power feed mounting on a shaper, jointer, and tablesaw.
base Mounting
