-4-
Model h8192 (Mfg. Since 8/07)

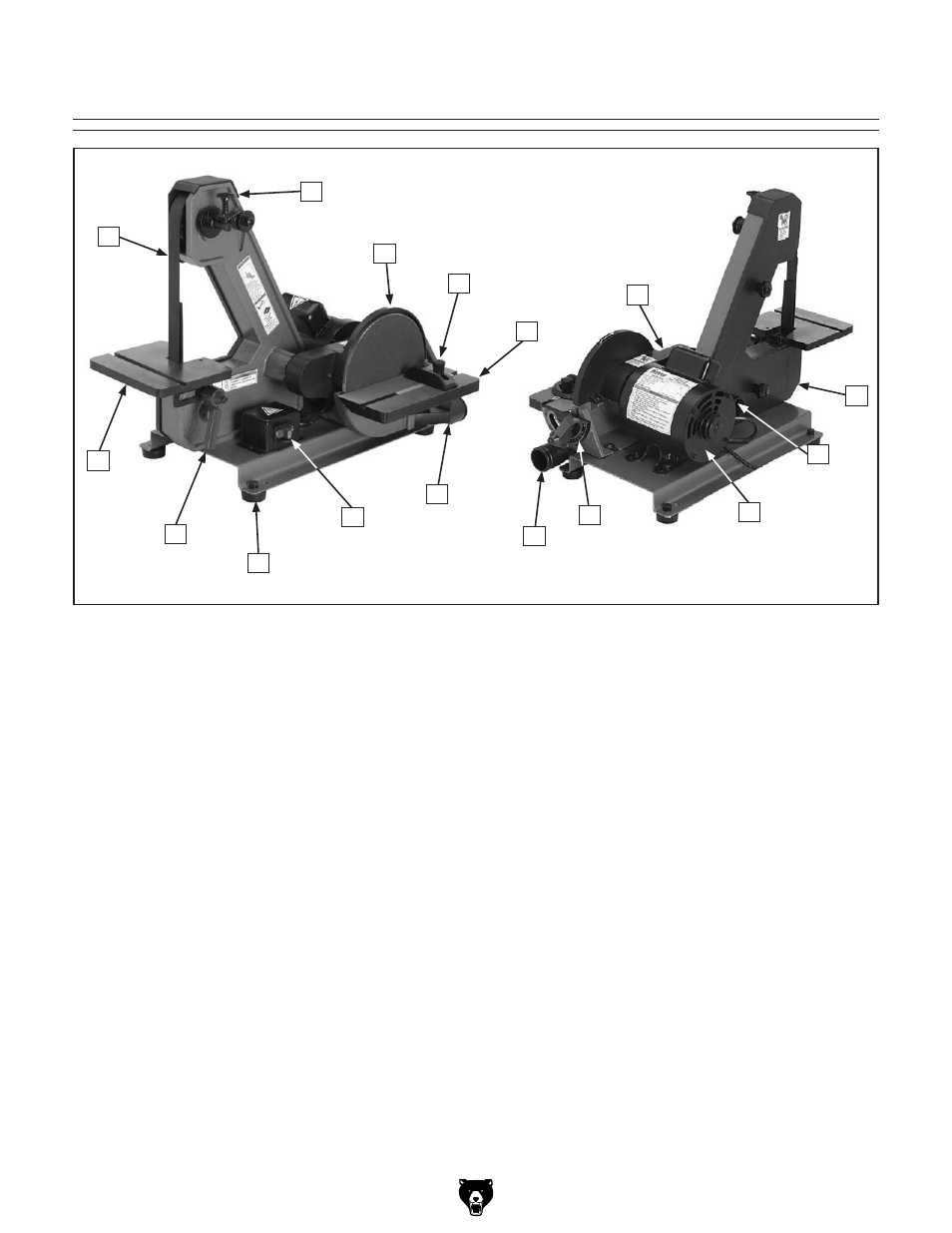

figure 1. Model h8192 identification.
A. Sanding Belt 1" x 42"
B. Sanding Belt tracking Knob
C. Sanding disc 8"
D. Miter gauge
E. disc table
f. V-Belt Safety Cover
g. Sanding Belt Safety Cover
H. Sanding Belt dust port
Identification
C
d
E
F
g
i J
K
l
n
o
p
B
A
I. Motor
J. disc table Angle Scale
K. disc table lock handle
L. disc dust port
M. on/oFF Switch with disabling Key
N. rubber Machine Feet
O. Sanding Belt table lock handle
p. Sanding Belt table
h
M
