Assembly
To avoid risk of serious
injury, DO NOT connect
the sander to power
until told to do so in the
Test Run subsection.

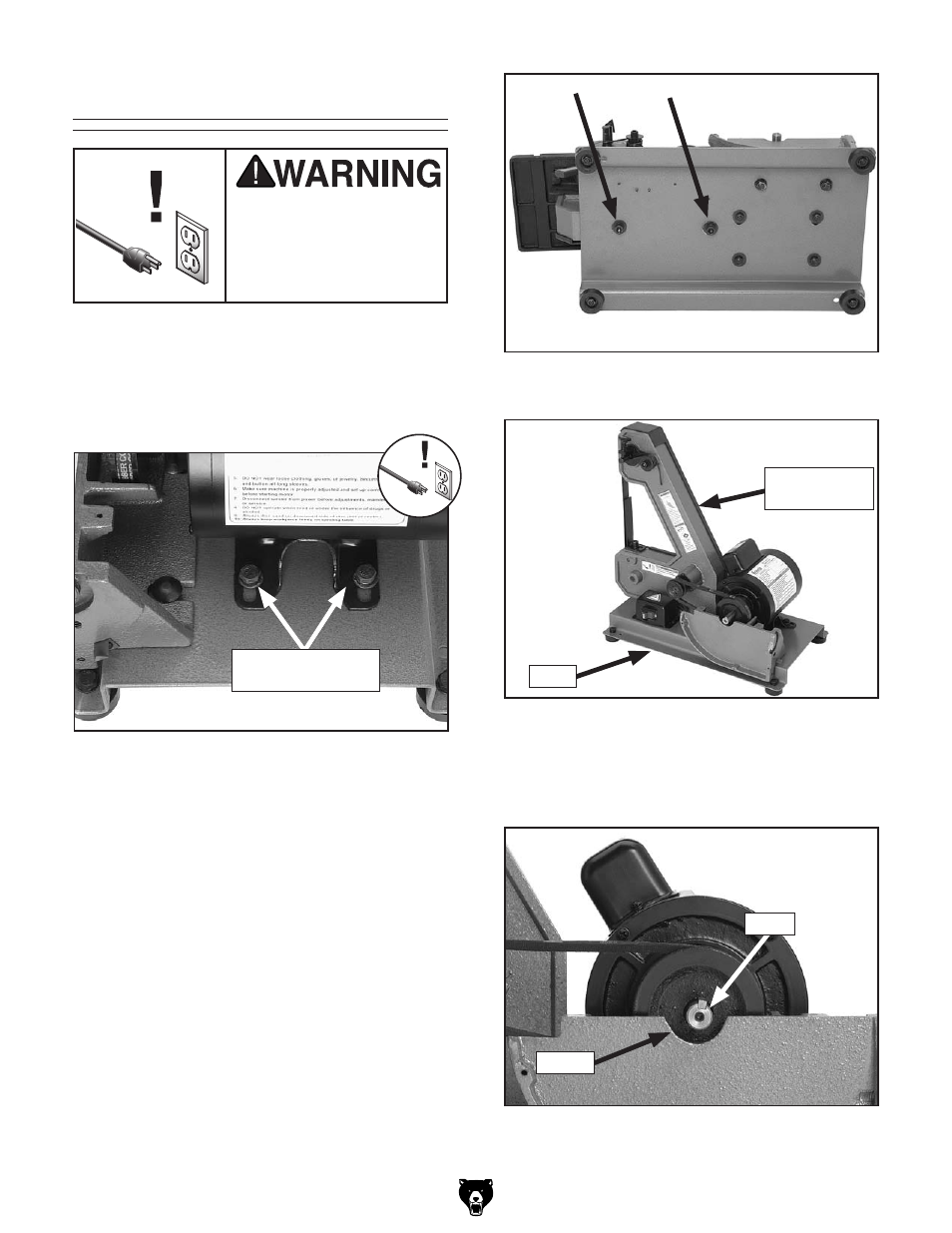

To assemble your combo sander:
1. Using 13mm wrenches, loosen the four motor
mount hex bolts ( figure 6) so you can adjust
the motor position in the next steps.
figure 7. Cap screws securing the belt housing
assembly (viewed from underneath the base).
figure 8. Belt housing assembly installed.
Belt housing
Assembly
Base
2. With assistance, position the belt housing
assembly on the left side of the base, taking
care not to pinch the power cords between
the assembly and the base.
3. place the V-belt around both pulleys, and
secure the belt housing assembly with the
two M10-1.5 x 20 cap screws, lock washers,
and flat washers (see
figures 7 & 8)—do not
fully tighten the fasteners for now.
4. Center the motor arbor in the cutout of the
cast iron disc guard (see figure 9), then
re-tighten the motor mount hex bolts.
figure 9. Motor arbor centered.
Cutout
Arbor
Assembly
figure 6. Motor mounting hex bolts (2 of 4,
viewed from top).
Motor Mounting
hex Bolts (2 of 4)
