-8-
Model h8192 (Mfg. Since 8/07)

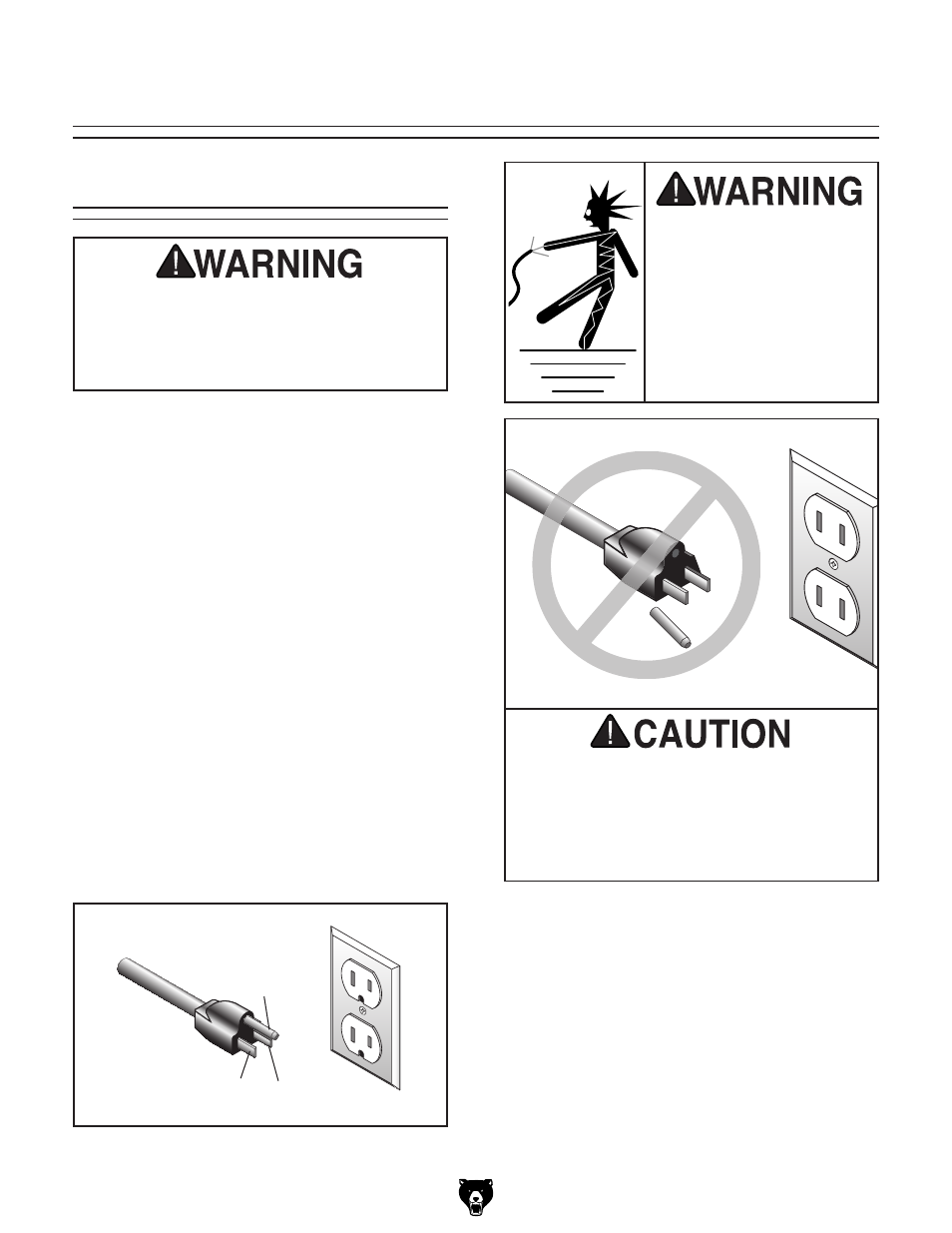

figure 2. typical type 5-15 plug and receptacle.
Grounding Prong
Neutral Hot
5-15 PLUG
GROUNDED
5-15 RECEPTACLE
Serious personal injury could occur if you
connect the machine to the power source
before you have completed the set up pro-
cess. DO NOT connect the machine to the
power source until instructed to do so.
110v Operation
Amperage Draw
the Model h8192 motor draws the following amps
under maximum load:
Motor draw ..............................................4 Amps
Circuit Recommendations
We recommend connecting your machine to a
dedicated and grounded circuit that is rated for
the amperage given below. never replace a circuit
breaker on an existing circuit with one of higher
amperage without consulting a qualified electrician
to ensure compliance with wiring codes.
If you are
unsure about the wiring codes in your area or
you plan to connect your machine to a shared
circuit, consult a qualified electrician.
110V Circuit ...........................................15 Amps
plug/Receptacle Type
included plug type ........................... nEMA 5-15
This machine must have a ground prong in
the plug to help ensure that it is grounded.
DO NOT remove ground prong from plug
to fit into a two-pronged outlet! If the plug
will not fit the outlet, have the proper outlet
installed by a qualified electrician.
Extension Cords
We do not recommend the use of extension cords,
but if you find it absolutely necessary:
• Use at least a 16 gauge cord that does not
exceed 50 feet in length!
• the extension cord must also contain a
ground wire and ground prong.
• A qualified electrician MUSt size cords over
50 feet long to prevent motor damage.
Electrocution or fire could
result if this machine is
not grounded correctly
or if your electrical
configuration does not
comply with local and state
codes. Ensure compliance
by checking with a
qualified electrician!
SECTION 2: CIRCuIT REQuIREMENTS
