-10-
Model h8192 (Mfg. Since 8/07)
Inventory
the following is a description of the main
components shipped with your machine. lay the
components out to inventory them.
Note: If you can't find an item on this list, check
the mounting location on the machine or examine
the packaging materials carefully. Occasionally
we pre-install certain components for shipping
purposes.
Inventory: (figures 3–4)
Qty
A. Motor and Base .......................................... 1
B. Belt housing Assembly .............................. 1
C. Belt table ................................................... 1
D. Sandpaper disc 8" ..................................... 1
E. Aluminum Sanding disc ............................. 1
f. disc table .................................................. 1
g. V-Belt Safety Cover .................................... 1
H. V-Belt rear Cover ...................................... 1
I. disc dust port 2" ........................................ 1
J. table lock handles ................................... 2
K. Miter gauge ................................................ 1
L. hex Wrench 2.5mm ................................... 1
M. hex Wrench 8mm ...................................... 1
N. disc dust Cover ......................................... 1
Hardware (not shown):
Qty
•
disc table Scale pointer ............................ 1
•
Cap Screws M10-1.5 x 20 .......................... 2
•
phillips head Screw M6-1 x 15 .................. 1
•
phillips head Screw M4-.7 x 40 ................. 1
•
phillips head Screws M4-.7 x 10 ............... 6
•
Flat Washers 10mm ................................... 4
•
Flat Washers 4mm ..................................... 6
•
lock Washers 10mm ................................. 2
if any nonproprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
A
B
C
d
E
F
g

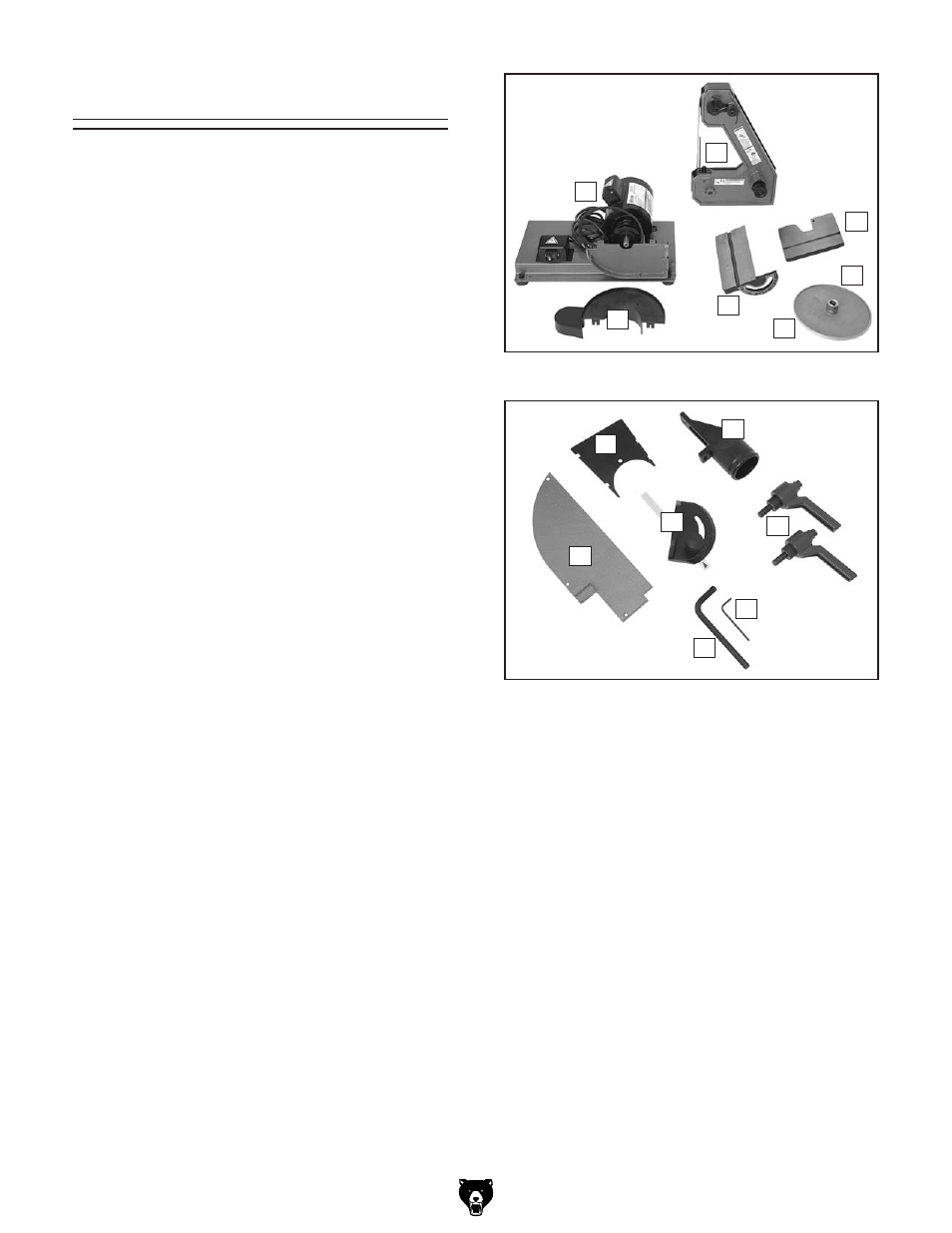

figure 3. Model h8192 inventory items A–g.
h
i
J
K
l
M
n
figure 4. Model h8192 inventory items h–n.
