-14-
Model h8192 (Mfg. Since 8/07)

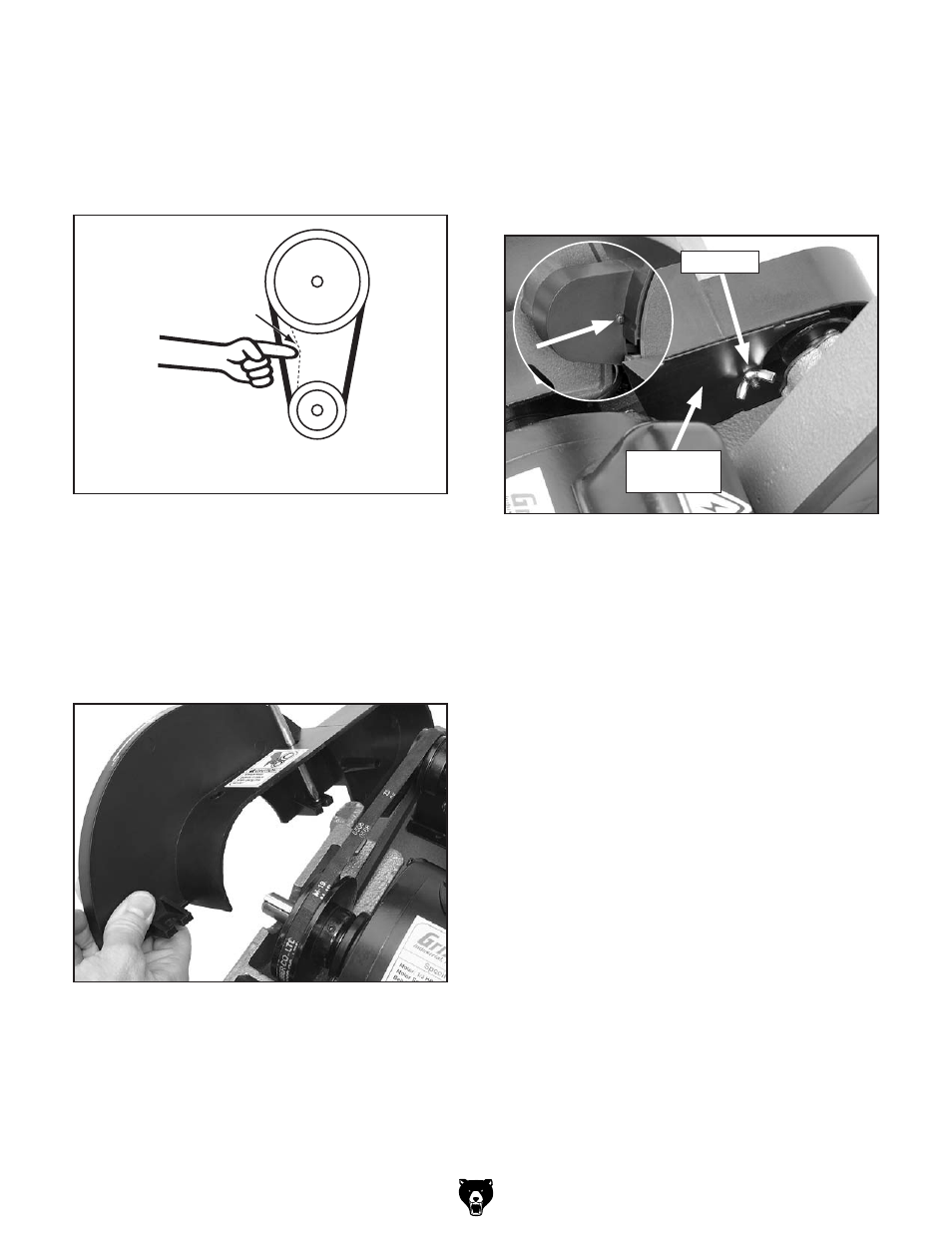

5. position the belt housing assembly so there
is about 1 ⁄
4
" V-belt deflection when moderate
pressure is applied to the V-belt between the
pulleys (see
figure 10)—then fully tighten
the cap screws to secure the belt housing
assembly in place.
Pulley
Deflection
Pulley
figure 10. Measuring V-belt deflection.
6. insert one M4-.7 x 10 phillips head screw
and flat washer into the left inside mounting
bracket of the V-belt safety cover (see
figure 11). then hold it in place with a
screwdriver as you slide the cover over the
V-belt and tighten the fastener into the cast
iron disc guard.
7. Secure the right side of the V-belt cover with
one M4-.7 x 10 phillips head screw and flat
washer.
8. position the V-belt rear cover, as shown in
figure 12, and secure it in place with the M4-
.7 x 40 phillips head screw and wingnut.
figure 12. V-belt rear cover installed (inset
shows front location of screw).
Wing nut
V-Belt
rear Cover
figure 11. holding V-belt cover mounting
fastener in place.
deflection
