-18-
Model h8192 (Mfg. Since 8/07)
Mounting Sander
once you have confirmed that your machine is
running properly, mount it to a workbench.
the strongest mounting option is a "through
Mount" where holes are drilled all the way through
the workbench, and hex bolts, washers, and
lock nuts are used to secure the sander to the
workbench.
Machine Base
Workbench
Bolt
Flat Washer
Flat Washer
Lock Washer
Lock Nut
Rubber Foot

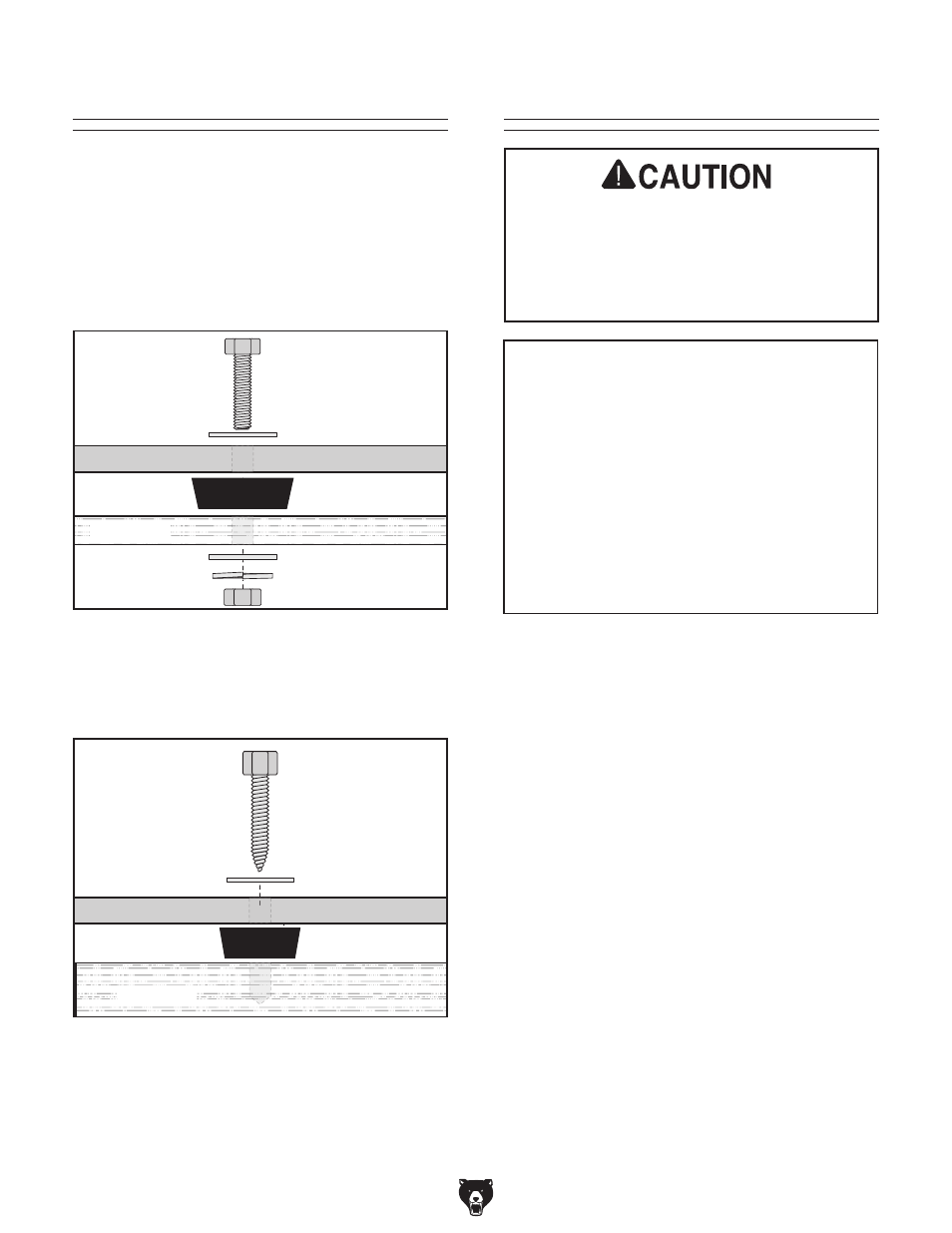

figure 22. Example of a through mount setup.
Machine Base
Workbench
Lag Screw
Flat Washer
Rubber Cushion
figure 23. Example of a direct mount setup.
Another option for mounting is a "direct Mount"
where the machine is simply secured to the
workbench with a lag screw.
Dust Collection
To connect a dust collection hose:
1. Fit a 2" dust hose from the dust collection
system over each dust port, and secure them
in place with a 2" hose clamp.
2. tug the hoses to make sure they do not
come off.
Note: A tight fit is necessary for proper
performance.
DO NOT operate the Model H8192 without
an adequate dust collection system. This
sander creates substantial amounts of wood
dust while operating. failure to use a dust
collection system can result in short and
long-term respiratory illness.
Recommended CfM at EACH Dust port:
100 CfM
Do not confuse this CFM recommendation with
the rating of the dust collector. To determine
the CFM at the dust port, you must consider
these variables: (1) CFM rating of the dust
collector, (2) hose type and length between the
dust collector and the machine, (3) number of
branches or wyes, and (4) amount of other open
lines throughout the system. Explaining how to
calculate these variables is beyond the scope
of this manual. Consult an expert or purchase
a good dust collection "how-to" book.
Note: To reduce vibration when operating, keep
the rubber cushion included with your sander
between the machine base and the workbench.
