G0636X 17" Ultimate Bandsaw
-5-

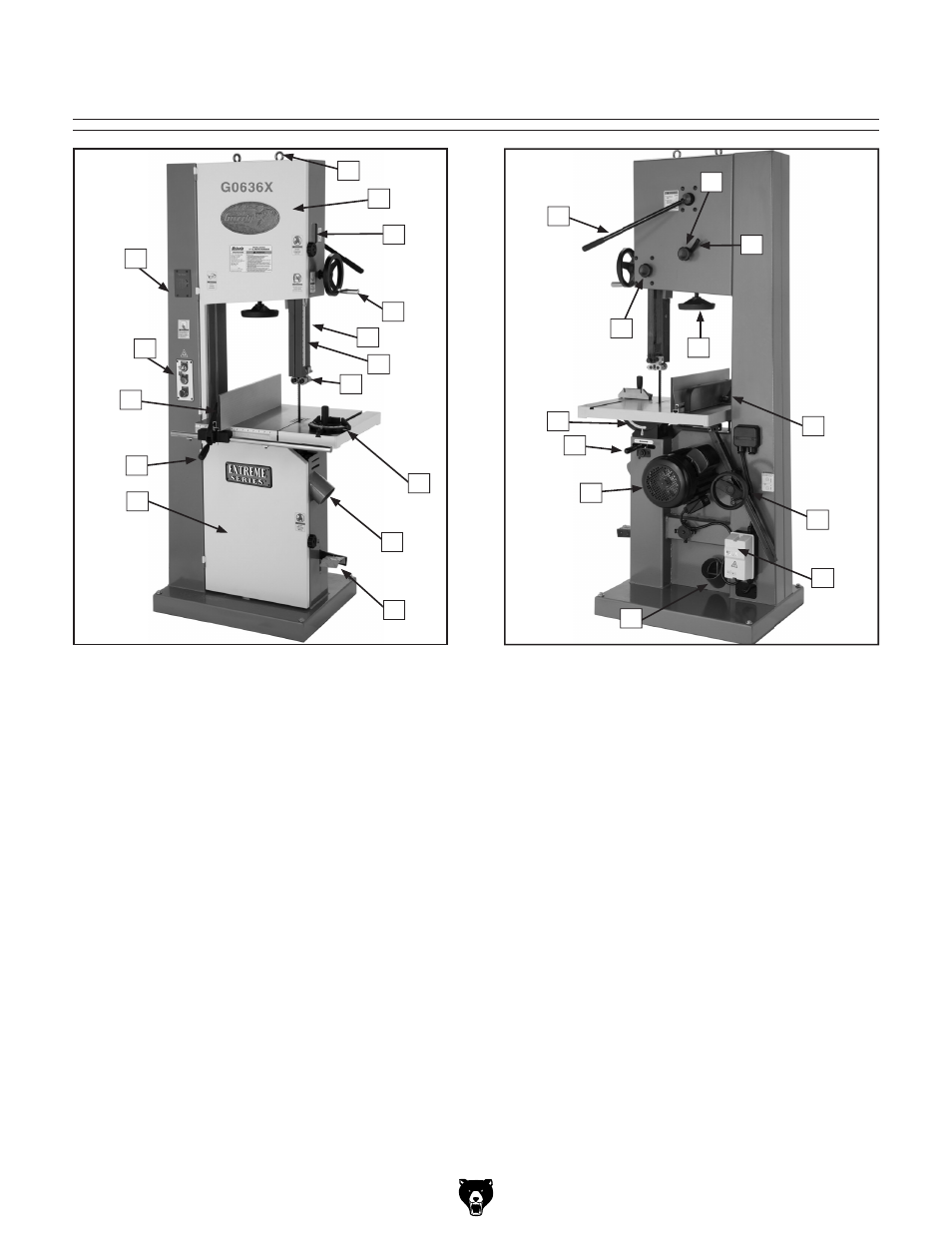

Figure 1. G0636X front view.
A. Eye Bolt
B. Hinged Wheel Covers
C. Blade Tracking Window
D. Guide Post Handwheel
E. Cutting Height Scale
F. Guide Post
G. Ball Bearing Blade Guides
H. Miter Gauge
I. 4" Dust Port
J. Foot Brake
K. Fence Lock Lever
L. Resaw Fence
M. Key Switch, Start & Stop Buttons
N. Blade Tension Scale
Identification
O. Quick Release Blade Tension Lever
P. Guide Post Lock Knob
Q. Blade Tension Handwheel
R. Table Tilt Lock Lever
S. Motor
T. 4" Dust Port
U. Table Tilt Handwheel
V. Rip Fence
W. Blade Tracking Lock Lever
X. Blade Tracking Knob
Y. Table Tilt Scale
Z. Magnetic Switch
A B C D E F G
H I J K L M N
O P Q R S T U
V W X Y Z
Figure 2. G0636X rear view.
N
M
L
K
B
J
I
H
G
F
C
A
O
P
R
S
T
U
W
X
Q
V
E
D
Z
Y
B
