Grizzly G0636X - Manual (Page 25)

G0636X 17" Ultimate Bandsaw
-23-
To adjust the lower blade guides:
1. Make sure the blade is tracking properly and
that it is correctly tensioned.
2. DISCONNECT BANDSAW FROM POWER!
3. Familiarize yourself with the blade guide con-
trols shown in Figure 25.

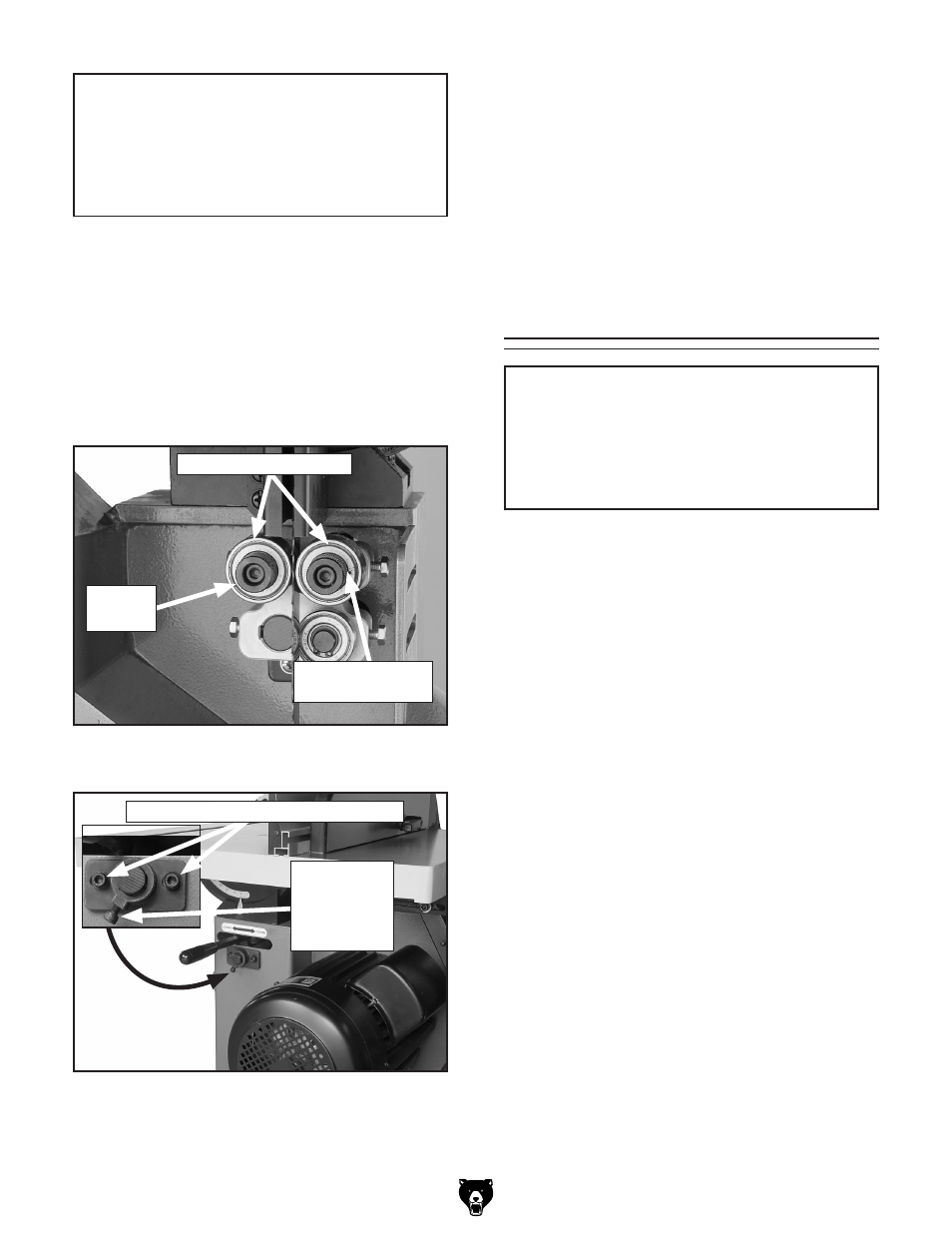

Figure 25. Lower blade guide controls (front
view).
Figure 26. Lower blade guide controls (rear
view).
Bearing Rotation
Adjustment Bolt
Blade Guide Bearings
Knurled
Knob
4. Follow the procedure for adjusting the upper
blade guides on Page 21.
Note: The lateral adjustment rod cap screw
and guide block assembly cap screws are
located below the table tilt lock lever (see
Figure 26).
Adjusting Support
Bearings
The support bearings are positioned behind
the blade for support during cutting operations.
Proper adjustment of the support bearings is an
important part of making accurate cuts and also
keeps the blade teeth from coming in contact with
the guide bearings while cutting.
To adjust the upper support bearing:
1. Make sure the blade is tracking properly and
that it is correctly tensioned.
2. DISCONNECT BANDSAW FROM POWER!
3. Familiarize yourself with the upper support
bearing controls shown in Figure 22 & 23.
NOTICE
Whenever changing a blade or adjusting ten-
sion and tracking, the upper and lower blade
support bearings and blade guide bearings
must be properly adjusted before cutting
operations.
NOTICE
Whenever changing a blade or adjusting ten-
sion and tracking, the upper and lower blade
support bearings and guide bearings must
be properly adjusted and locked before cut-
ting operations.
Lateral
Adjustment
Rod Cap
Screw
Guide Block Assembly Cap Screws
